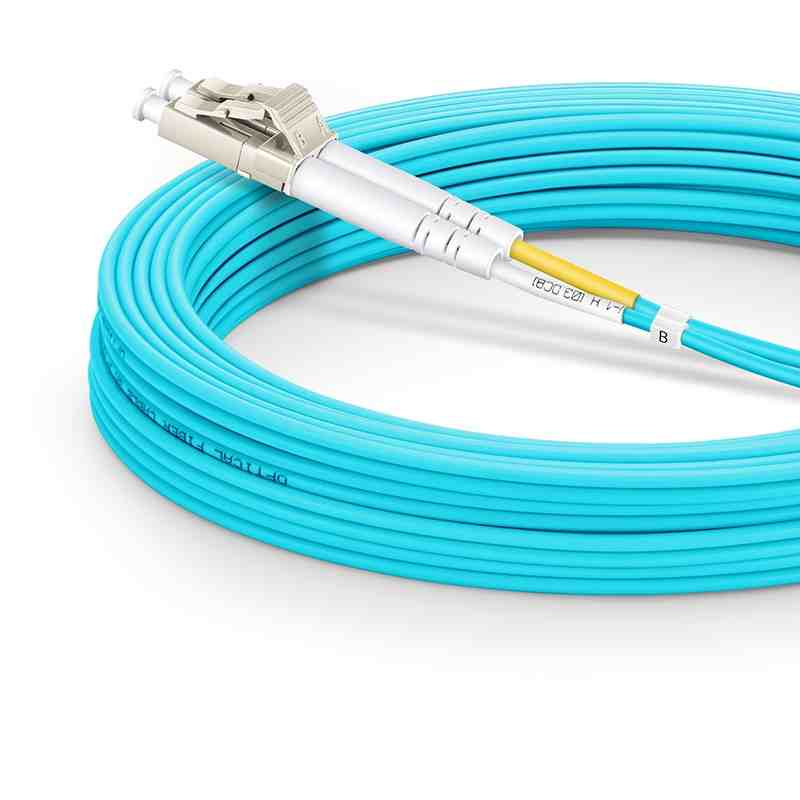

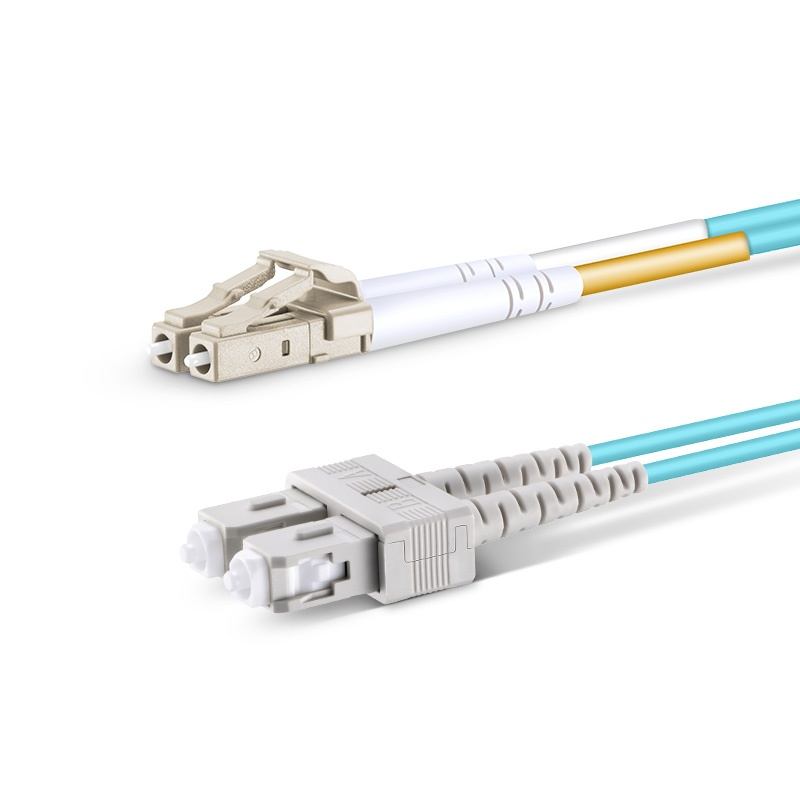

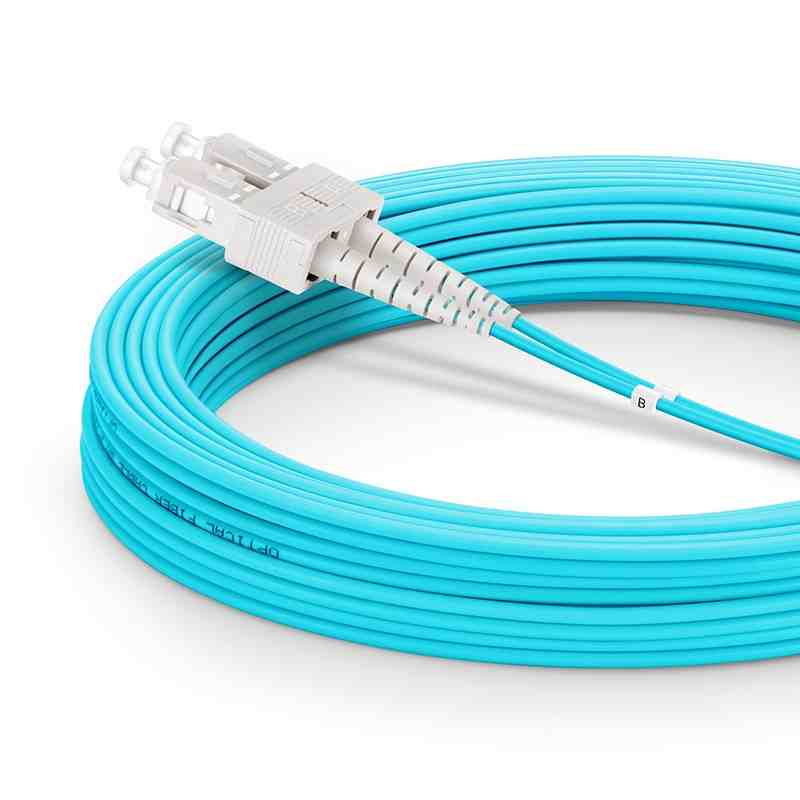

10m LC/UPC-SC/UPC Duplex Multimode OM4 Standard Fiber Optic Patch Cable PVC 3.0mm

￥70

型号：OM4 50/125 Multimode

Length:

5m 10m 15m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

Duplex clip prevents the fiber optic from rotating and maintains polarity

Bend-insensitive optical fiber & minimum bending radius 7.5mm

Fiber optic testing ensures network performance

Compliant with TIA-604 (FOCIS)

Suitable for 10/40/100G networks, and widely used in 40/100G applications

商品详情
资料下载(PDF)

High-Quality and Cost-Effective 50/125μm OM4 Multimode Bend-Insensitive Fiber Optic Jumper

The short-boot structure is particularly suitable for high-density applications with compact space requirements. When used with bend-insensitive fiber jumpers, it can reduce attenuation during bending or twisting, thus making the installation and maintenance of the jumpers more efficient. Therefore, it can be applied in central offices, passive optical networks (PON), FTTx, data centers, and any place where fiber jumpers are needed.

This type of 50/125μm OM4 multimode fiber optic jumper is highly suitable for connecting 40G BIDI SR, 10G SR, QSFP+, and SFP+ optical modules, etc., for 10/40/100G Ethernet connections, and is the preferred fiber optic jumper for 40/100G applications.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	Bend-insensitive
Fiber Type	OM4 50/125μm	Wavelength	850/1300nm
Boot Type	12mm Boot	Outer Sheath Color	Aqua
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation @850nm	3.0dB/km	Attenuation @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
