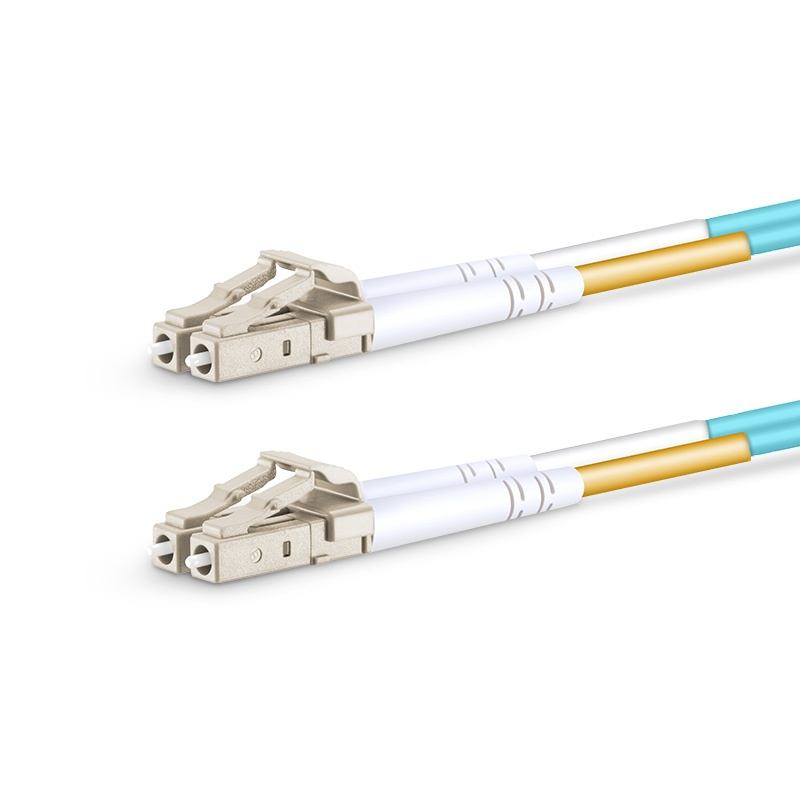

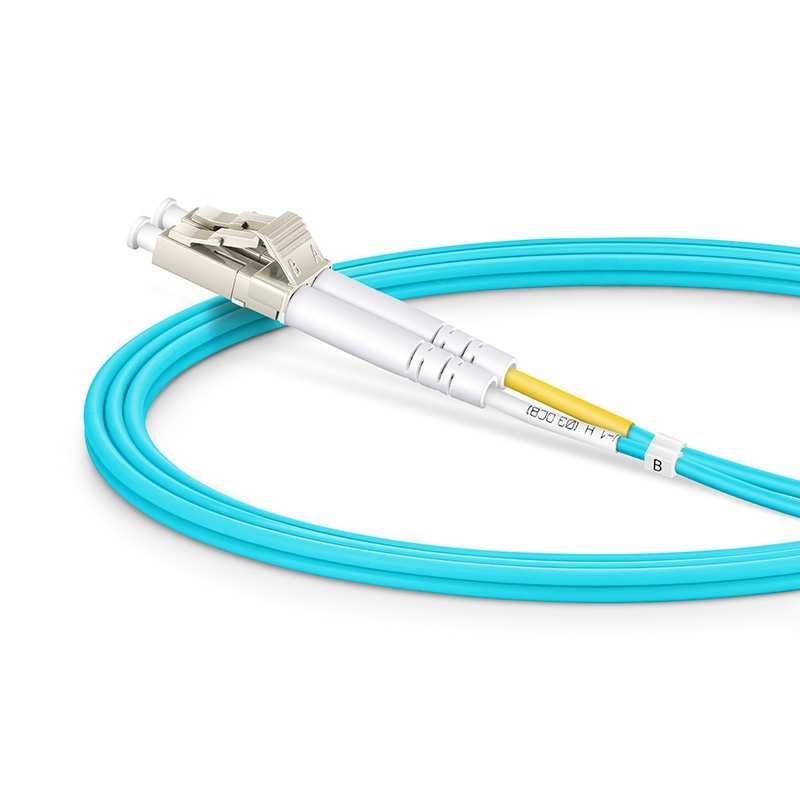

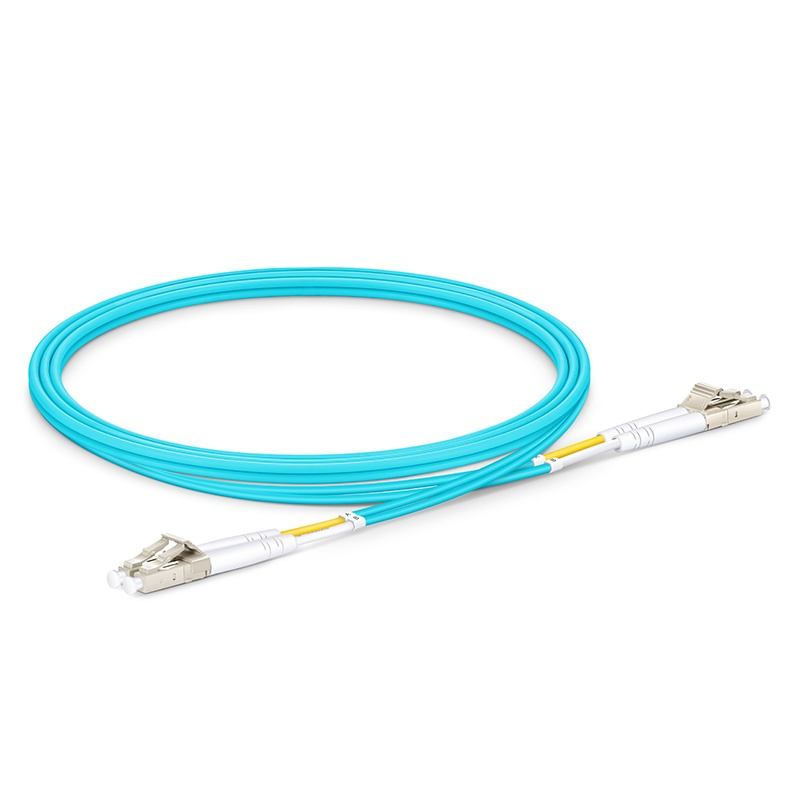

1m LC/UPC-LC/UPC 10G Duplex Multimode OM3 Fiber Optic Patch Cable - 2.0mm PVC

￥40

型号：HZ-LC-LC-DX-1M3

Length:

1m 2m 3m 5m 10m 15m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

The double-fiber core structure provides better mechanical performance and a lower risk of curling damage.

Bend-insensitive & 7.5mm minimum bending radius

Optical testing ensures network performance

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

LC/UPC - LC/UPC Duplex OM3 Multimode PVC (LSZH) 2.0mm Fiber Optic Jumper

Compared with traditional jumpers, the 50/125μm OM3 multimode bend - insensitive jumper has less attenuation when bent or twisted, which makes the installation and maintenance of the jumper more efficient. It can also provide more high - density cabling space for data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, etc., and connect pre - terminated cassette distribution modules in the main distribution, horizontal distribution, and equipment distribution areas.

This type of 50/125 OM3 multimode fiber optic jumper is very suitable for connecting 10G SR, 10G LRM, SFP+ optical modules, etc. to achieve 10/40/100G Ethernet connections, and is the preferred fiber specification for 10G Ethernet connections.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	G.651
Fiber Type	OM3 50/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
