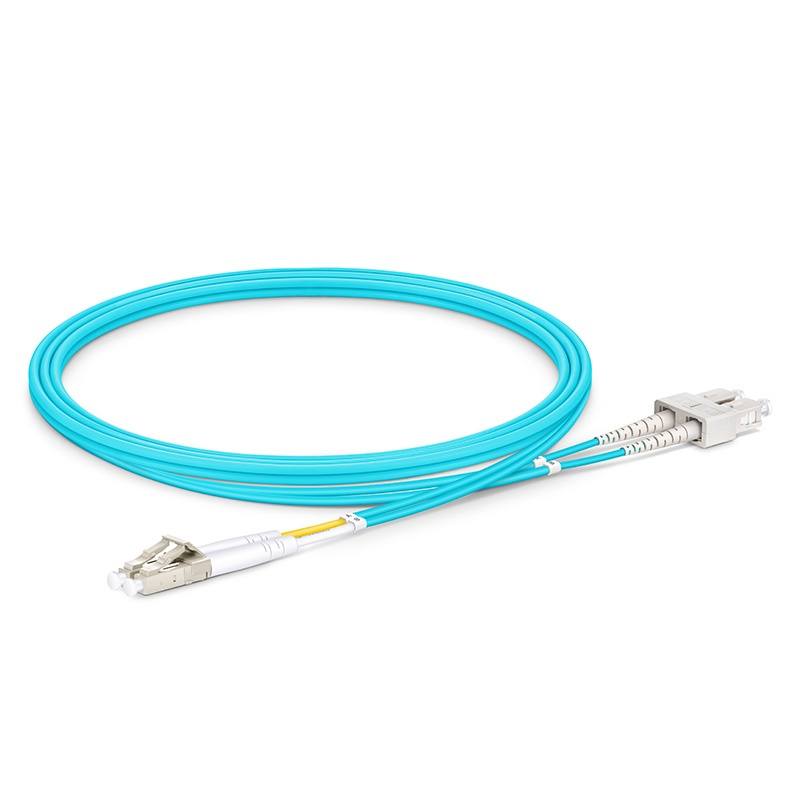

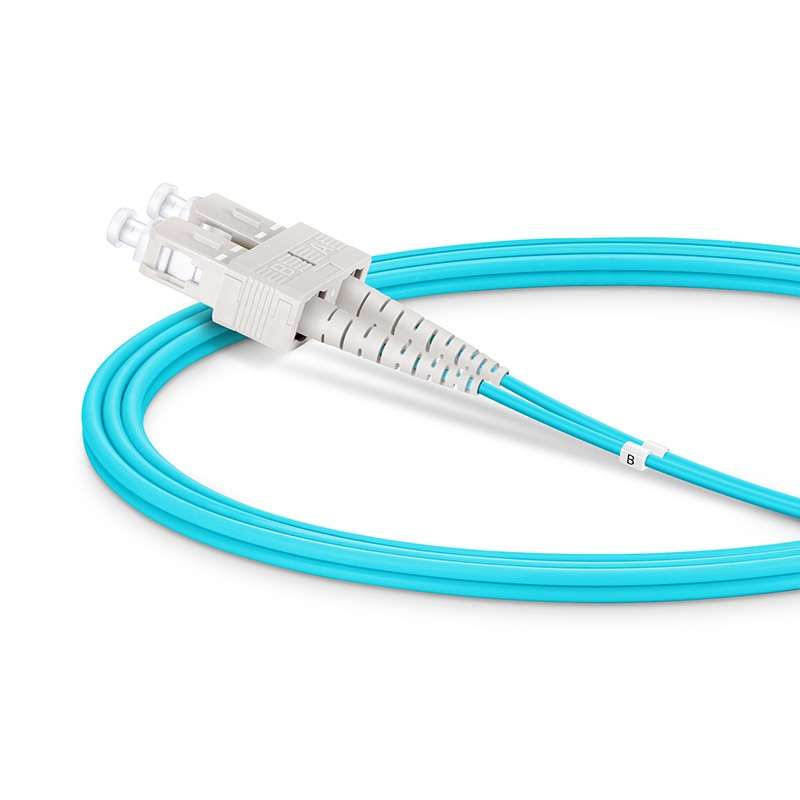

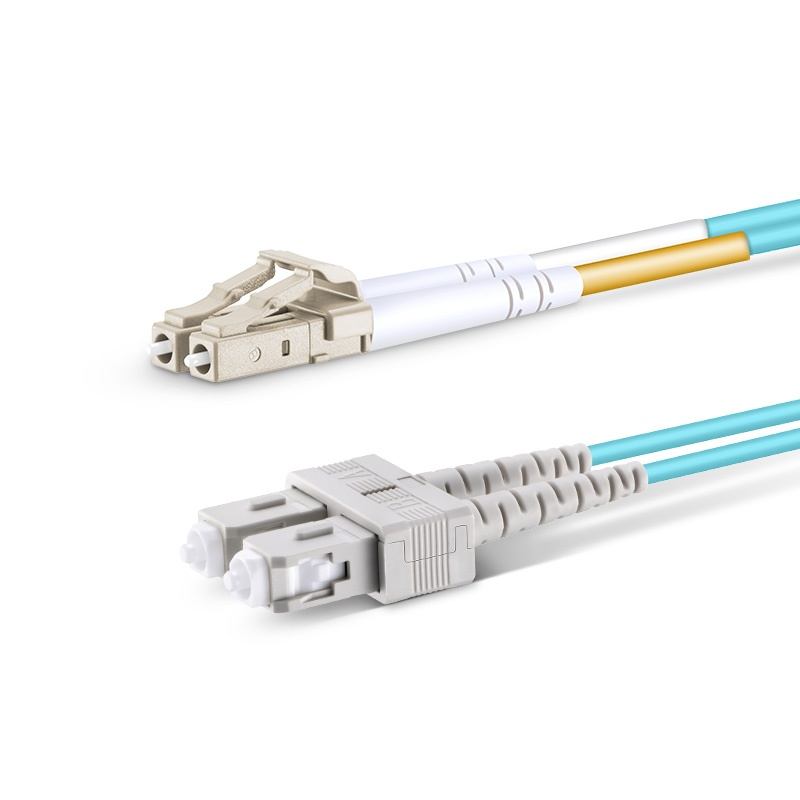

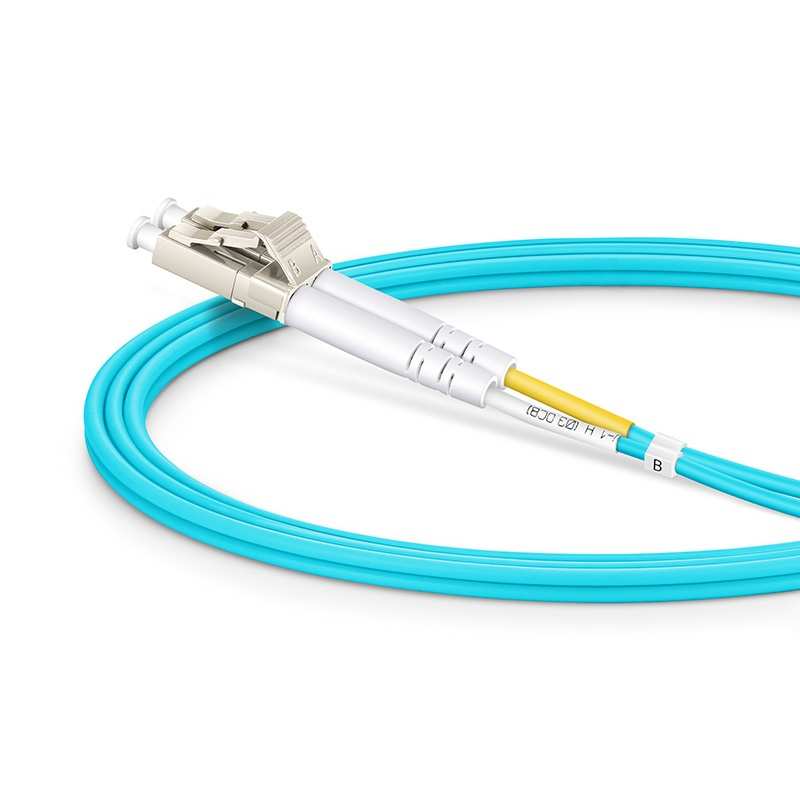

1m LC/UPC-SC/UPC 10G Duplex Multimode OM3 Fiber Patch Cable - 2.0mm PVC

￥35

型号：OM4 50/125 Multimode

Length:

1m 2m 3m 5m 10m 15m

加入购物车

产品特征

Precision zirconia ferrule connectors ensure low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

Bend-insensitive & 7.5mm minimum bending radius

Optical testing ensures network performance

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High - Quality and Cost - Effective LC UPC Duplex to SC UPC Duplex 50/125μm OM3 Multimode Bend - Insensitive Fiber Optic Jumper (LSZH Outer Sheath)

Compared with traditional jumpers, the 50/125μm OM3 multimode bend - insensitive jumper (featuring LC UPC duplex on one end, SC UPC duplex on the other, and Riser (OFNR) outer sheath) has less attenuation when bent or twisted. This enhances the efficiency of jumper installation and maintenance. It can provide additional high - density cabling space for data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, etc., and connect pre - terminated cassette distribution modules across main distribution, horizontal distribution, and equipment distribution areas.

This 50/125 OM3 multimode fiber optic jumper is exceptionally well - suited for linking 10G SR, 10G LRM, SFP+ optical modules to enable 10/40/100G Ethernet connections, standing as the preferred fiber specification for 10G Ethernet setups.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	SC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	G.651
Fiber Type	OM3 50/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
