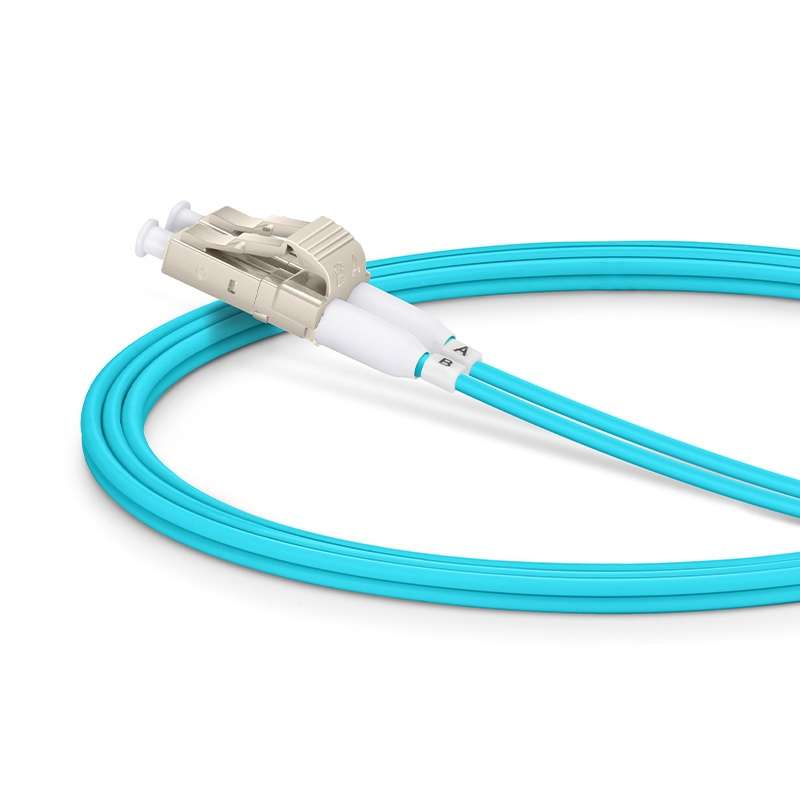

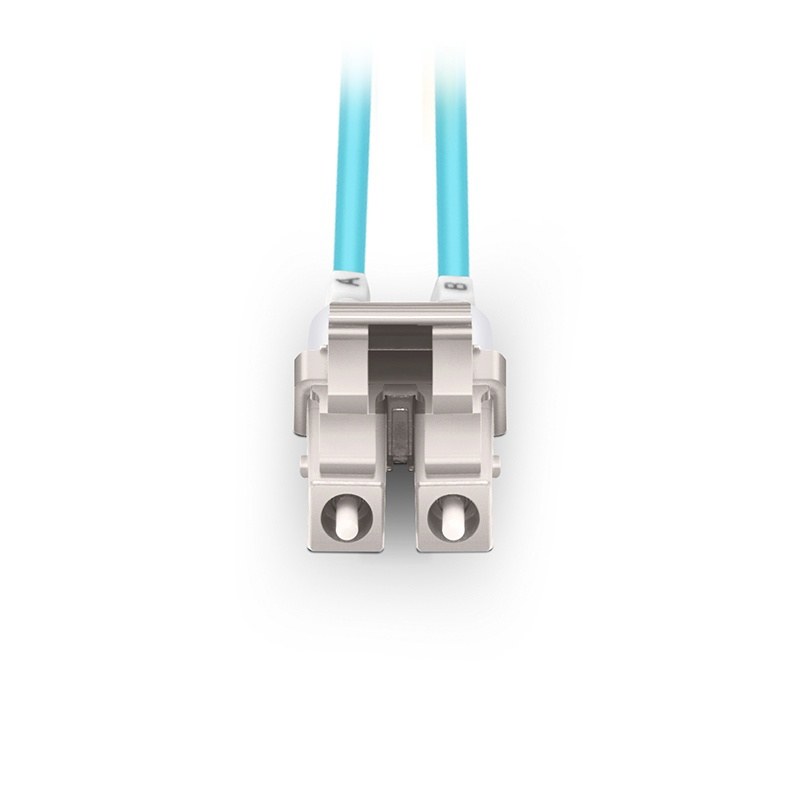

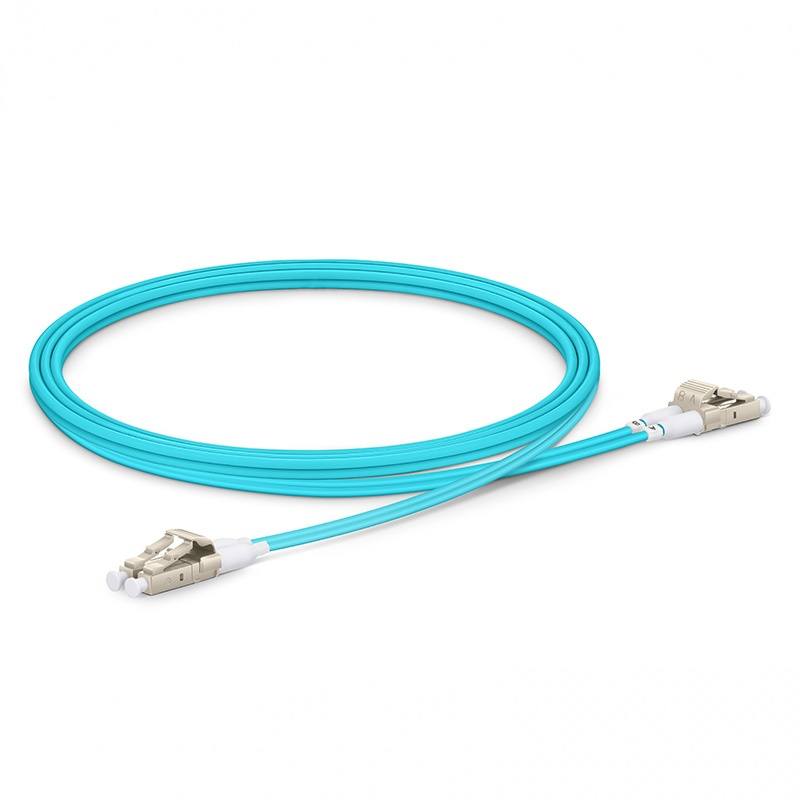

1M LC/UPC-LC/UPC Short Tail Set 10G Duplex Multimode OM3 Fiber Patch Cable - 2.0mm PVC

￥40

型号：OM4 50/125 Multimode

Length:

1m 2m 3m 5m

加入购物车

产品特征

Tail cover shortened by 60% & total length of connector shortened by 30%

The 12mm short tail sleeve allows wiring connections in tight spaces

The heat-shrink-free design improves the flexibility of the jumper.

Precision zirconia ferrule connector ensures low loss

Bend-insensitive optical fiber & 7.5mm minimum bend radius

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High - Quality and Cost - Effective 50/125μm OM3 Multimode Bend - Insensitive Fiber Optic Jumper

The short boot structure is particularly suitable for high - density applications with compact space requirements. When used with bend - insensitive fibers, it can reduce attenuation during bending or twisting, thus making the installation and maintenance of fibers more efficient. Therefore, it can be used in central offices, passive optical networks (PON), FTTx, data centers, and anywhere fiber jumpers are needed.

This type of 50/125 OM3 multimode fiber optic jumper is very suitable for connecting 10G SR, 10G LRM, SFP+ optical modules, etc. to achieve 10G/40G/100G Ethernet connections, and is the preferred fiber specification for 10G Ethernet connections.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	Bend-insensitive
Fiber Type	OM3 50/125μm	Wavelength	850/1300nm
Boot Type	12mm Boot	Outer Sheath Color	Aqua
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
