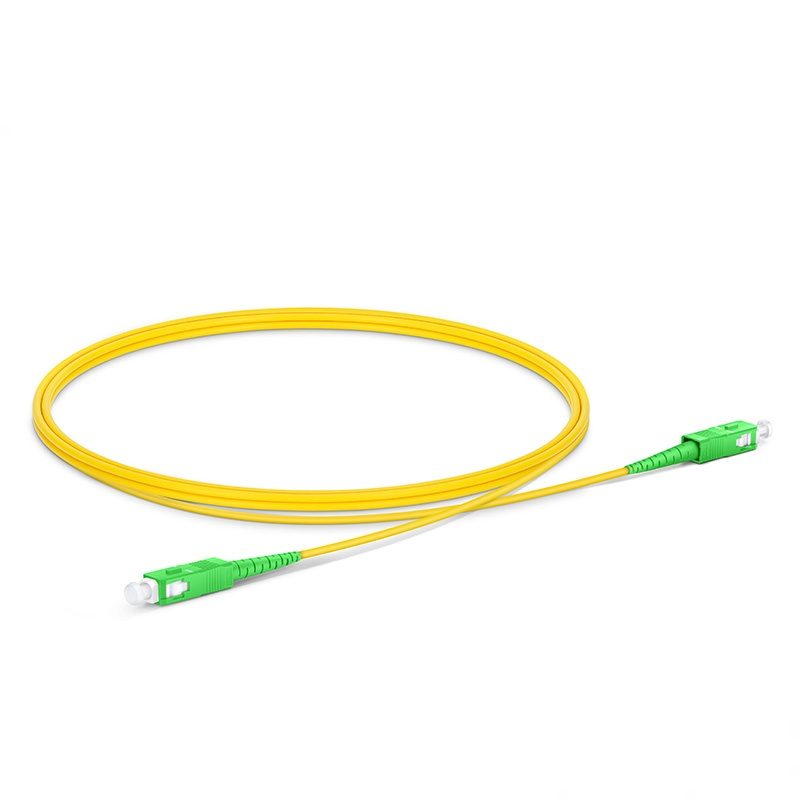

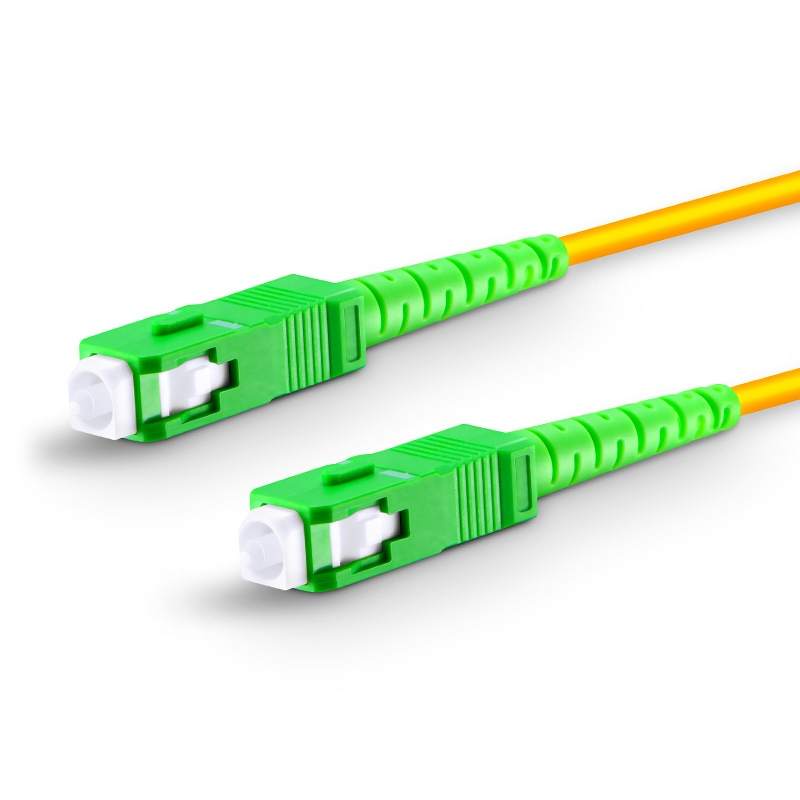

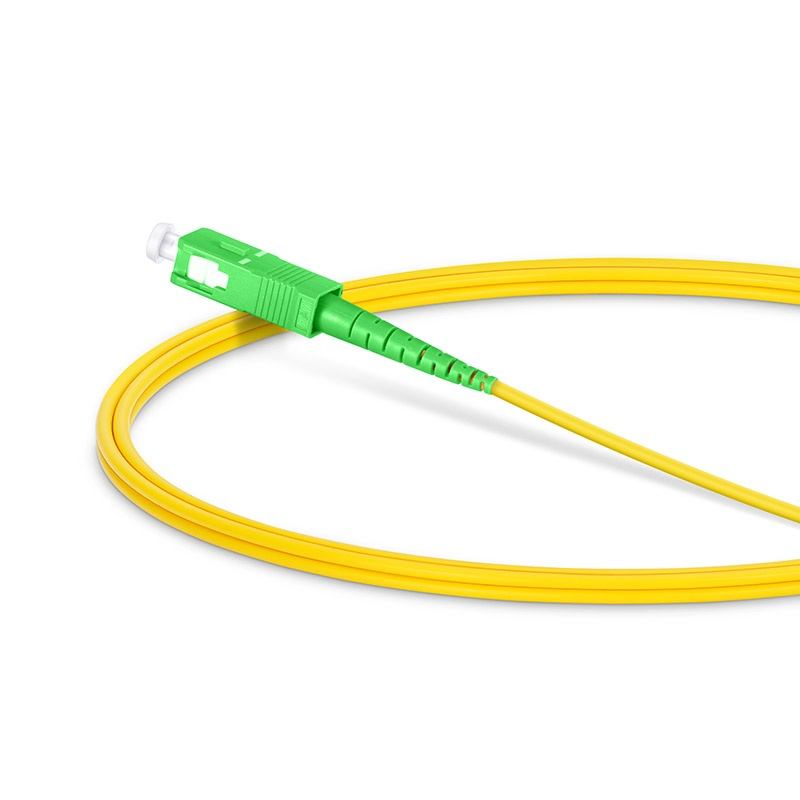

1m SC/APC-SC/APC Simplex Single-Mode OS2 Fiber Patch Cable - 2.0mm PVC

￥20

型号：OS2 9/125 single-mode

Length:

1m 2m 3m 5m 7m 10m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

G.657.A1 Bend-Insensitive Optical Fiber Minimum Bending Radius 10mm

Optical testing ensures network performance

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High - Quality and Cost - Effective 9/125μm Single - Mode Bend - Insensitive Fiber Optic Jumper

Compared with traditional jumpers, the 9/125μm OS2 single - mode bend - insensitive jumper has less attenuation when bent or twisted. This makes the installation and maintenance of the jumper more efficient. It can save more space for high - density cabling in data centers, enterprise networks, telecommunications rooms, server farms, cloud storage networks, and any place that requires fiber patch jumpers.

This type of jumper is very suitable for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transmit data up to 10km at 1310nm or up to 40km at 1550nm.

Specification Parameters

Connector A	SC APC Simplex	Connector B	SC APC Simplex
Number of Fiber Cores	Single - core	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliance	Compliant	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	10mm	Minimum Bending Radius (Jumper)	10/5D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation @850nm	0.36dB/km	Attenuation @1300nm	0.22dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
