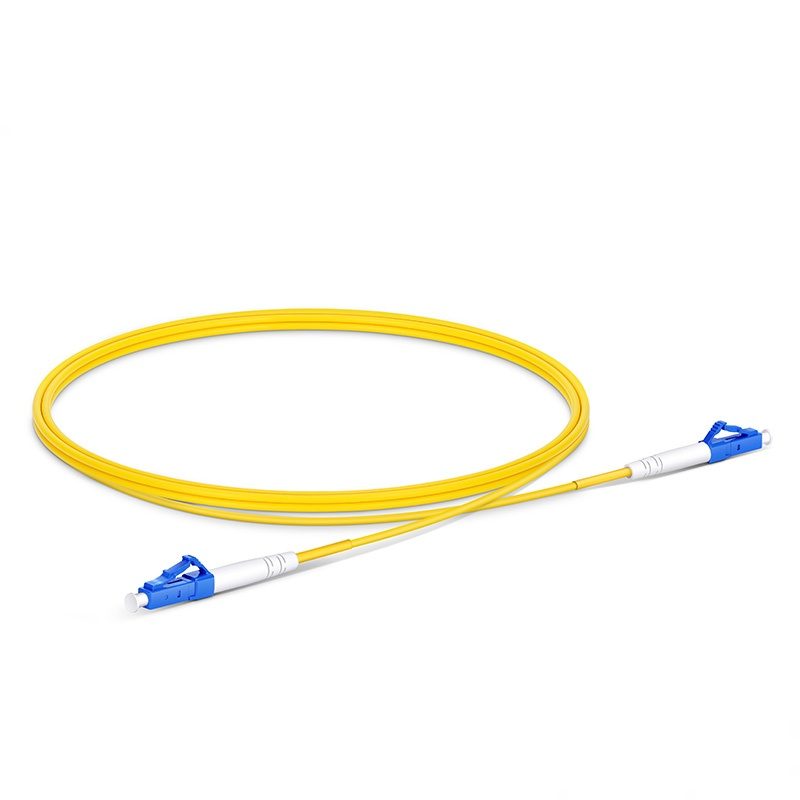

1m LC/UPC-LC/UPC Simplex Single-Mode OS2 Fiber Patch Cable - 2.0mm PVC

￥20

型号：OS2 9/125 Single Mode

Length:

1m 2m 3m 5m 7m 10m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

G.657.A1 Bend-insensitive optical fiber with a minimum bending radius of 10mm

Optical testing ensures network performance

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High - Quality and Cost - Effective 9/125μm Single - Mode G.657.A2 Bend - Insensitive Fiber Optic Jumper

The 9/125μm single-mode patch cord is suitable for enterprise networks, telecom equipment rooms, server farms, cloud storage networks, and any place where fiber optic patch cords are needed.

This type of patch cord is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections, and can transmit data up to 10km at 1310nm or up to 40km at 1550nm.

Specification Parameters

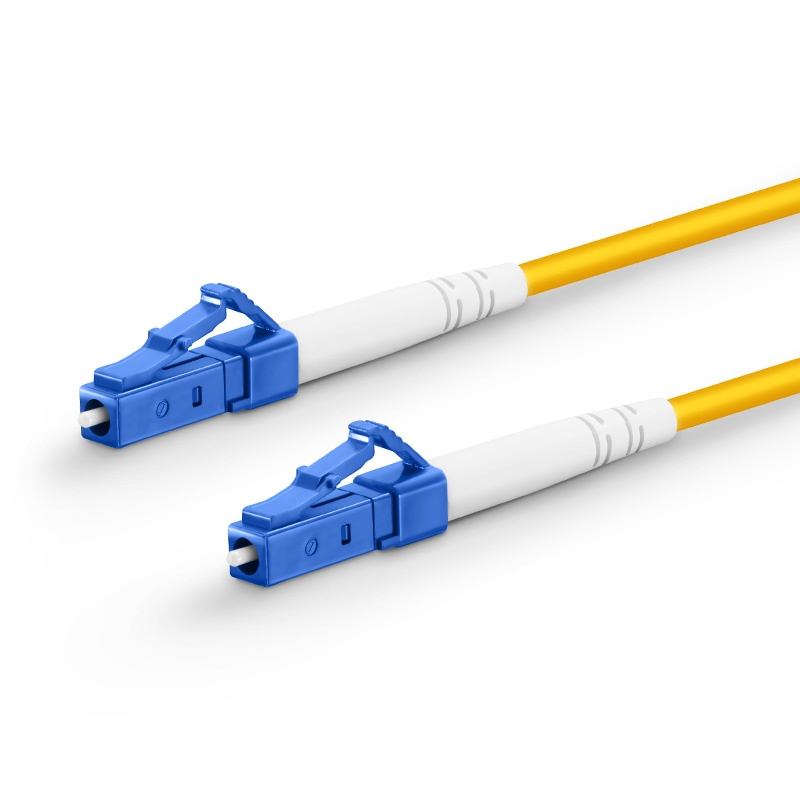

Connector A	LC UPC Simplex	Connector B	LC UPC Simplex
Number of Fiber Cores	Single - core	Fiber Grade	G.657.A1 (compatible with G.652.D)
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliance	Compliant	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	10mm	Minimum Bending Radius (Jumper)	10/5D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation @1310nm	0.36dB/km	Attenuation @1550nm	0.22dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
