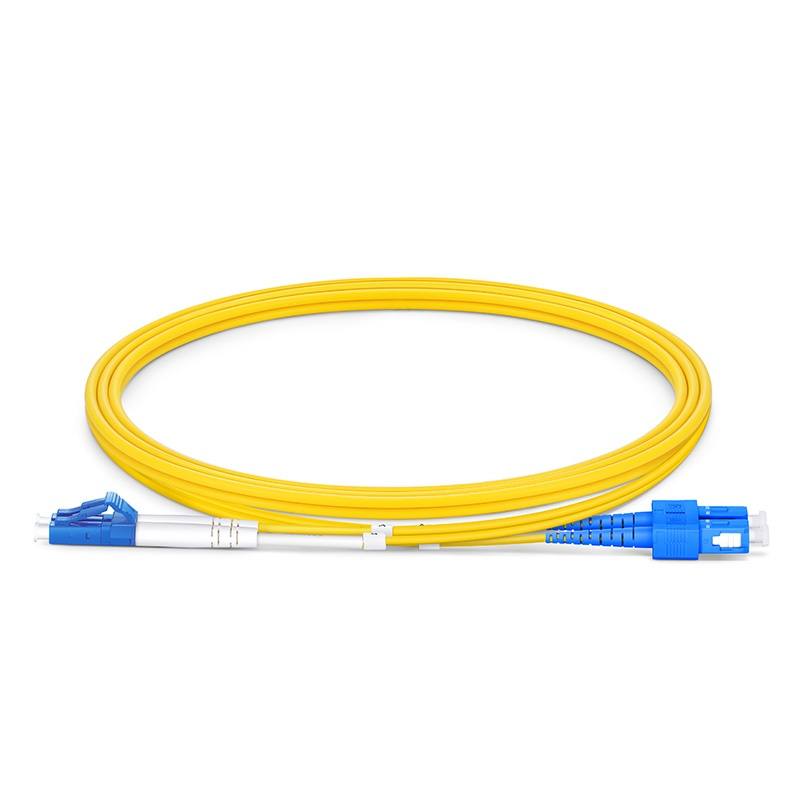

1m LC/UPC-SC/UPC Duplex Single-Mode OS2 Fiber Patch Cord - 2.0mm PVC

￥37

型号：HZ-LC-SC-SM-1M

Length:

1m 2m 3m 5m 7m 10m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

Twisted pair cables enhance mechanical performance and reduce crimping risk

G.657.A1 Bend-insensitive optical fiber 10mm minimum bend radius

Optical testing ensures network performance

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High-quality and cost-effective 9/125μm single-mode bend-insensitive fiber patch cord

Compared with traditional patch cords, the 9/125μm OS2 single-mode bend-insensitive patch cord has lower attenuation when bent or twisted, which makes the installation and maintenance of the patch cord more efficient. It can save more space for high-density cabling in data centers, enterprise networks, telecommunications equipment rooms, server farms, cloud storage networks, and any place that requires fiber optic patch cords.

These patch cords are ideal for connecting 1G/10G/40G/100G/400G Ethernet connections and can transmit data up to 10km at 1310nm, or up to 40km at 1550nm.

Specifications and Parameters

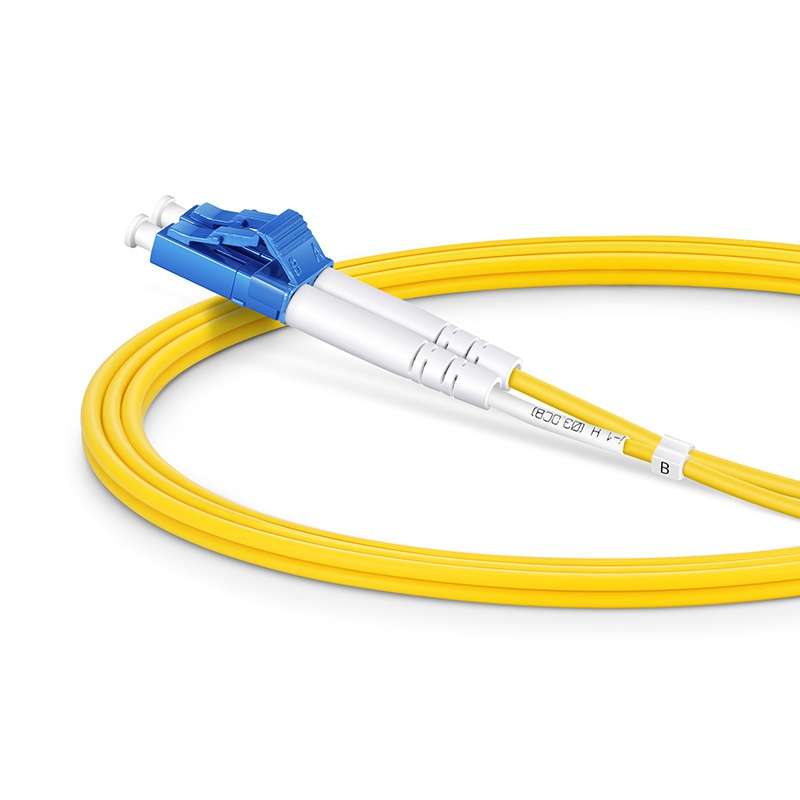

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliance	A (transmitting end) - B (receiving end)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Jacket	LSZH
Minimum Bend Radius (Fiber Core)	10mm	Minimum Bend Radius (Patch Cord)	10/5D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥50dB
Attenuation @1310nm	0.36dB/km	Attenuation @1550nm	0.22dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
