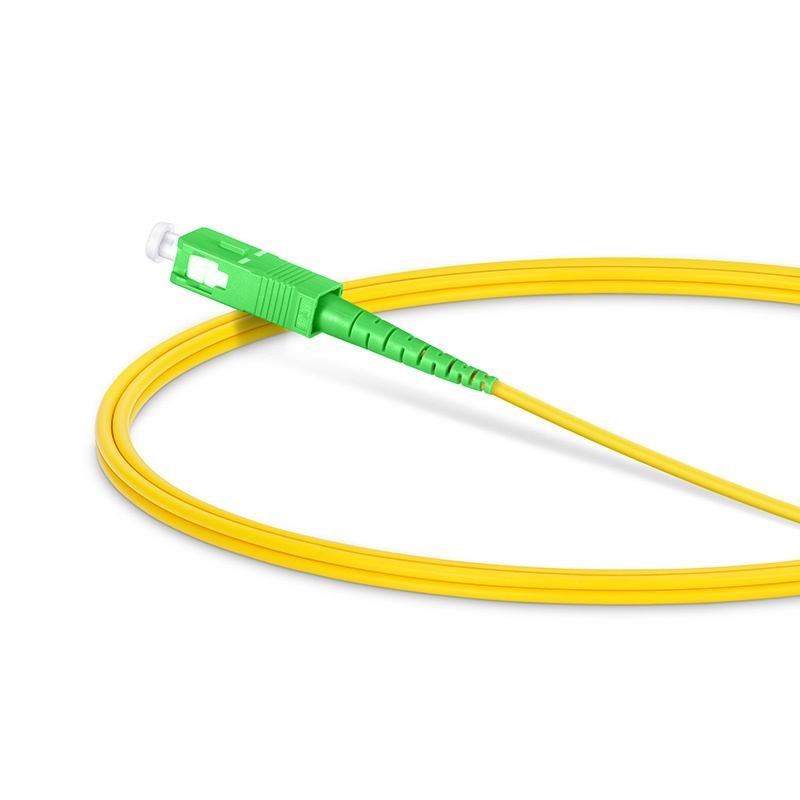

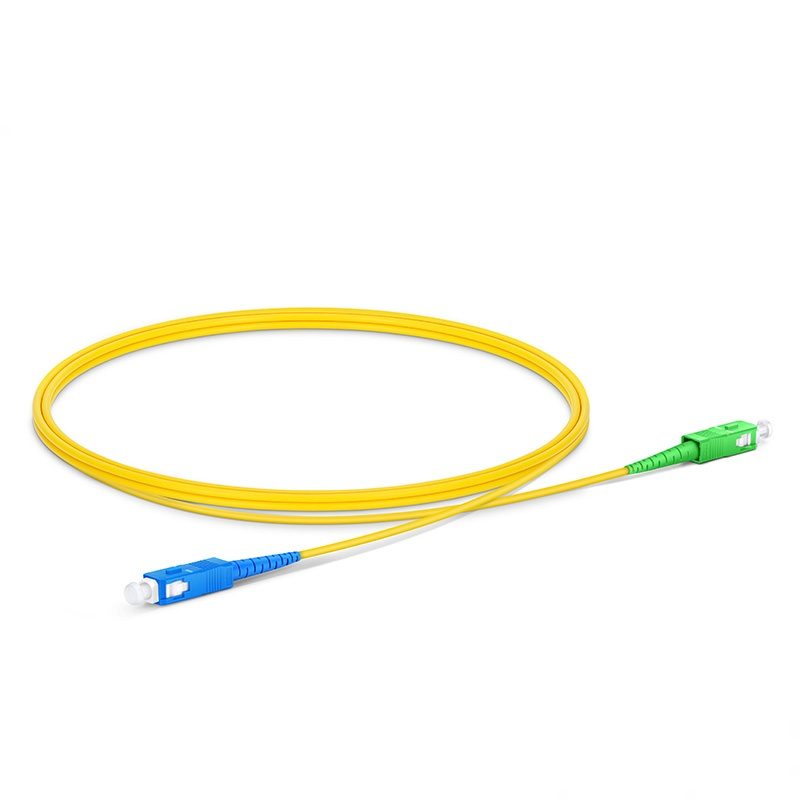

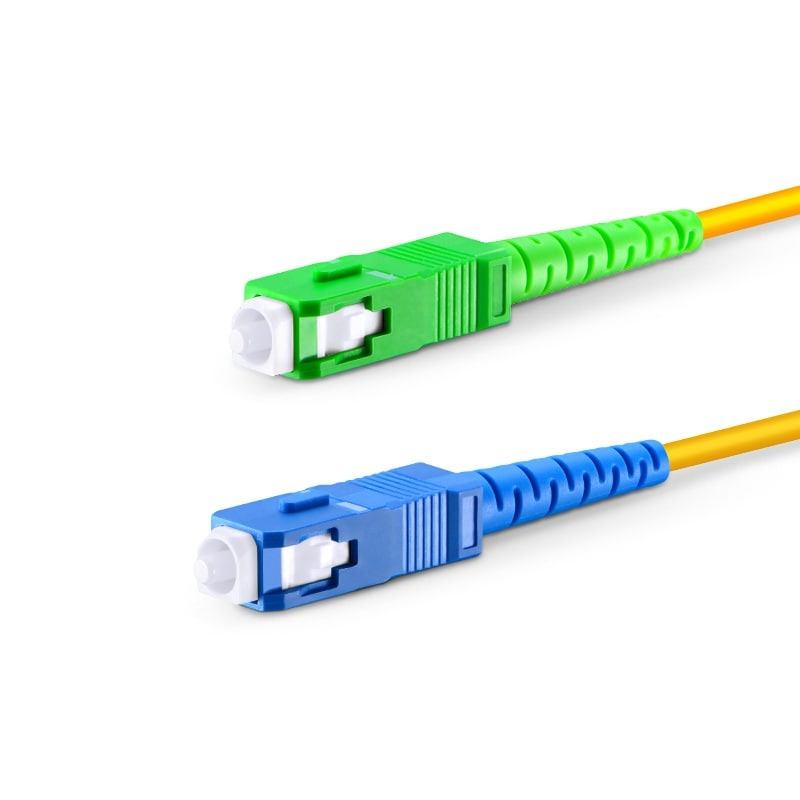

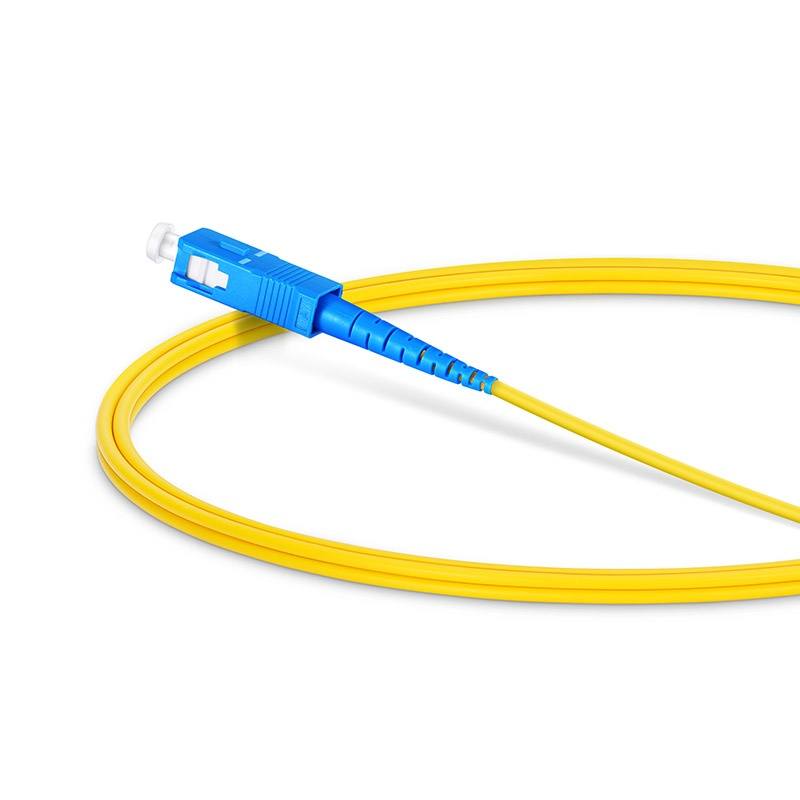

1m SC/UPC-SC/APC Simplex Single-Mode OS2 Fiber Patch Cable PVC 2.0mm

￥20

型号：OS2 9/125 single-mode

Length:

1m 2m 3m 5m 7m 10m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

G.657.A1 Bend-insensitive optical fiber with a minimum bending radius of 10mm

Optical testing ensures network performance

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High-quality and Cost-effective 9/125μm Single-mode Bend-insensitive Fiber Optic Patch Cord

Compared with traditional patch cords, the 9/125μm OS2 single-mode bend-insensitive patch cord has less attenuation when bent or twisted, which makes the installation and maintenance of the patch cord more efficient. It can save more space for high-density cabling in data centers, enterprise networks, telecom equipment rooms, server farms, cloud storage networks, and any place that requires fiber optic patch cords.

This type of patch cord is very suitable for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transmit data up to 10 km at 1310 nm or up to 40 km at 1550 nm.

Specifications and Parameters

Connector A	LC UPC Simplex	Connector B	SC APC Simplex
Number of Fiber Cores	Single - core	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
RoHS Compliance	Compliant	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Jacket	LSZH
Minimum Bend Radius (Fiber Core)	10mm	Minimum Bend Radius (Patch Cord)	10/5D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	60/100N
Insertion Loss	≤0.3dB	Return Loss	UPC≥50dB, APC≥60dB
Attenuation @850nm	0.36dB/km	Attenuation @1300nm	0.22dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C（-40~176℉）
