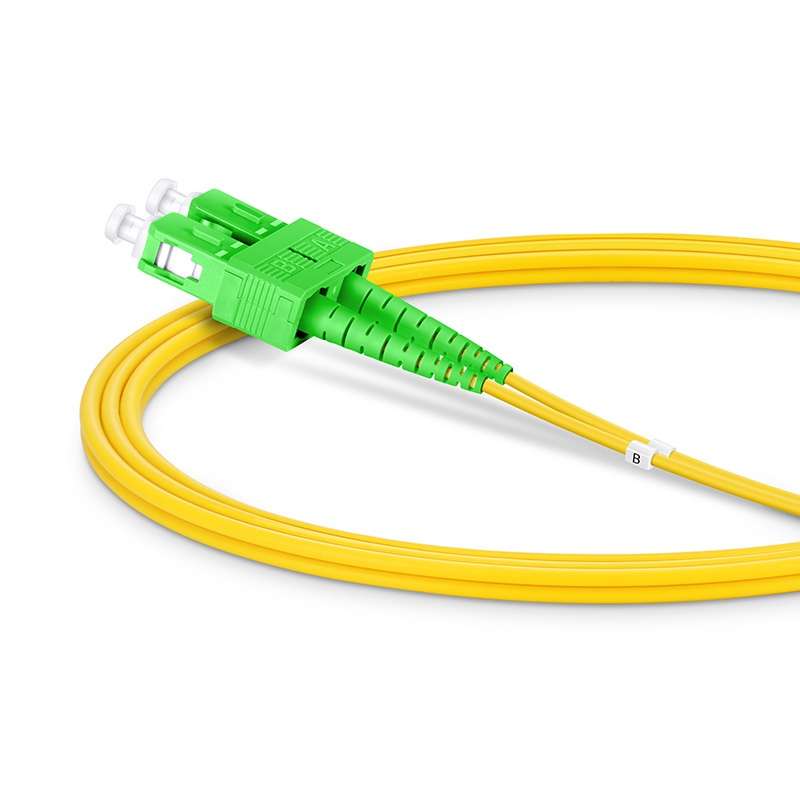

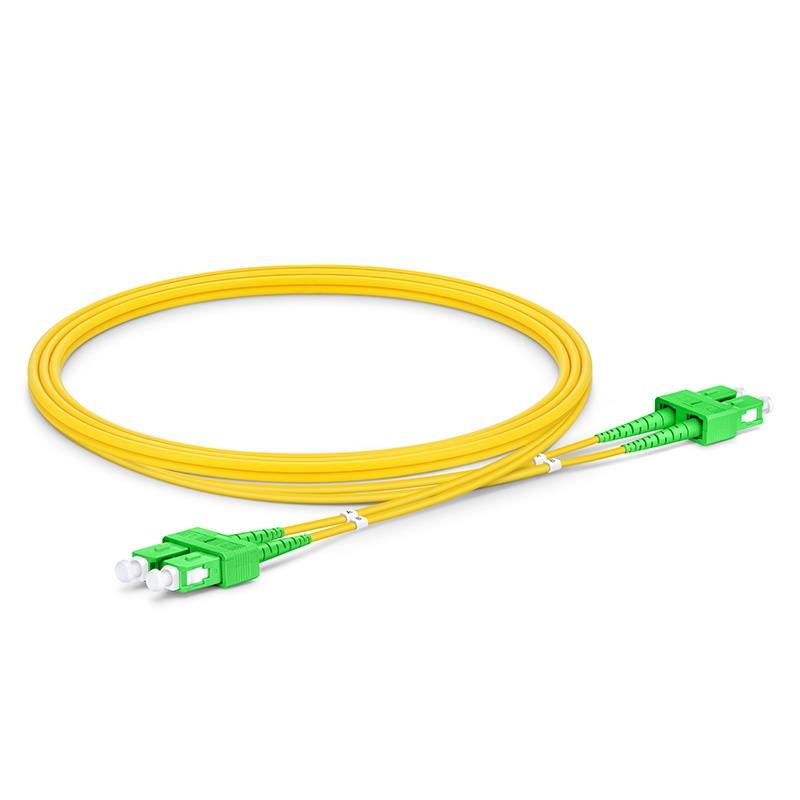

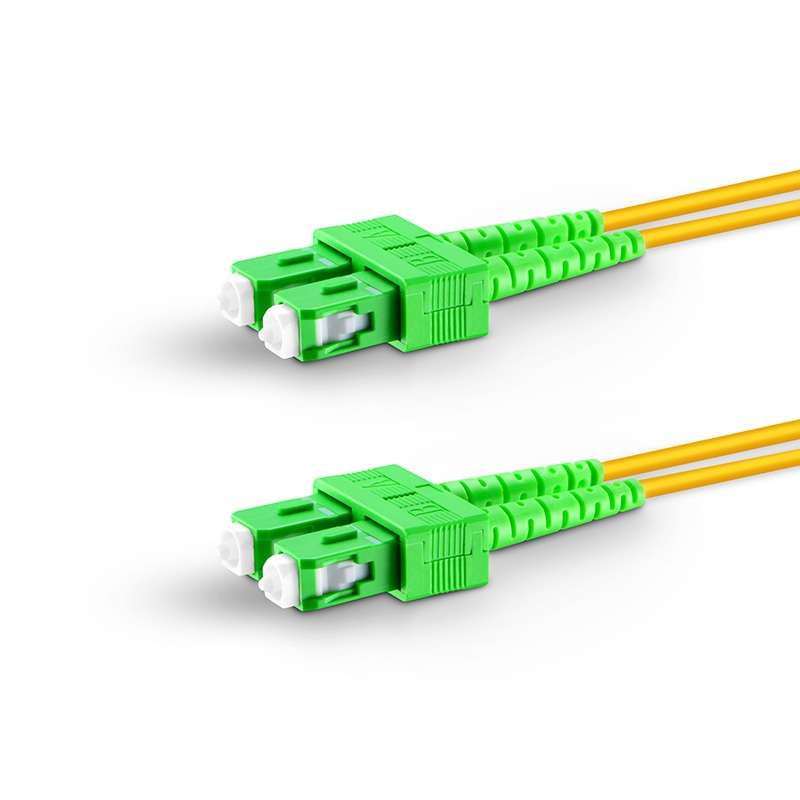

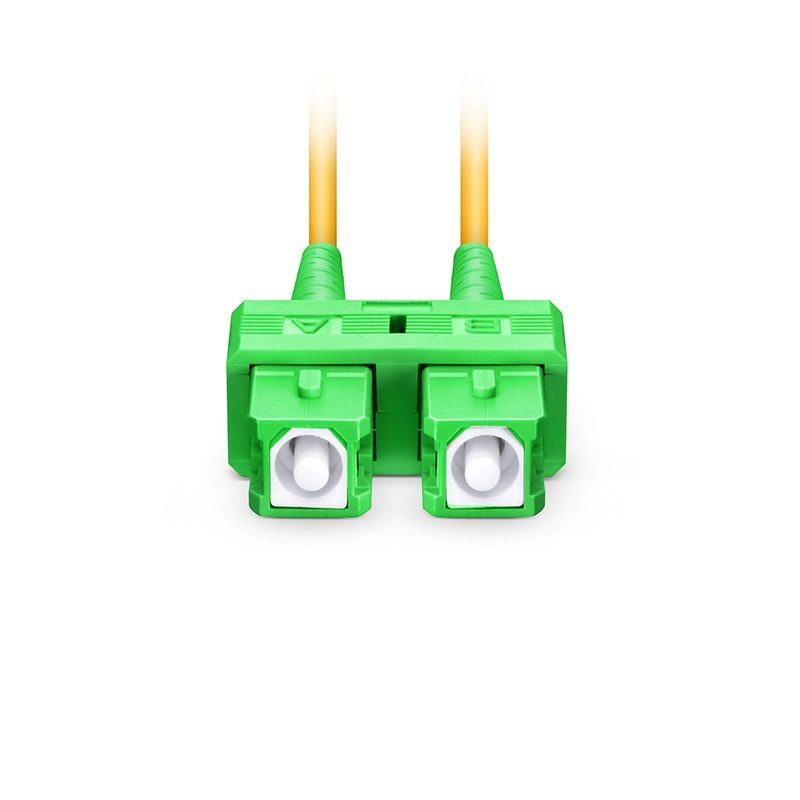

1m SC/APC-SC/APC Duplex Single-Mode OS2 Fiber Patch Cord - 2.0mm PVC

￥37

型号：OS2 9/125 single-mode

Length:

1m 2m 3m 5m 7m 10m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

Twisted pair cables enhance mechanical performance and reduce crimping risk

G.657.A1 Bend-insensitive optical fiber with a minimum bending radius of 10mm

Optical testing ensures network performance

Compliant with TIA-604 (FOCIS) standard

商品详情
资料下载(PDF)

High-quality and Cost-effective 9/125μm Single-mode Bend-insensitive Fiber Optic Patch Cords

Compared with traditional patch cords, the 9/125μm OS2 single-mode bend-insensitive patch cords have less attenuation when bent or twisted. This makes the installation and maintenance of the patch cords more efficient. They can save more space for high-density cabling in data centers, enterprise networks, telecom equipment rooms, server farms, cloud storage networks, and any place that requires fiber optic patch cords.

These patch cords are highly suitable for connecting 1G/10G/40G/100G/400G Ethernet connections. They can transmit data up to 10 km at 1310 nm or up to 40 km at 1550 nm.

Specification Parameters

Connector A	SC APC Duplex	Connector B	SC APC Duplex
Number of Fiber Cores	Dual - core	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Type	OS2 9/125μm	Wavelength	1310/1550nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Jacket	LSZH
Minimum Bend Radius (Fiber Core)	10mm	Minimum Bend Radius (Patch Cord)	10/5D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥60dB
Attenuation @1310nm	0.36dB/km	Attenuation @1550nm	0.22dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
