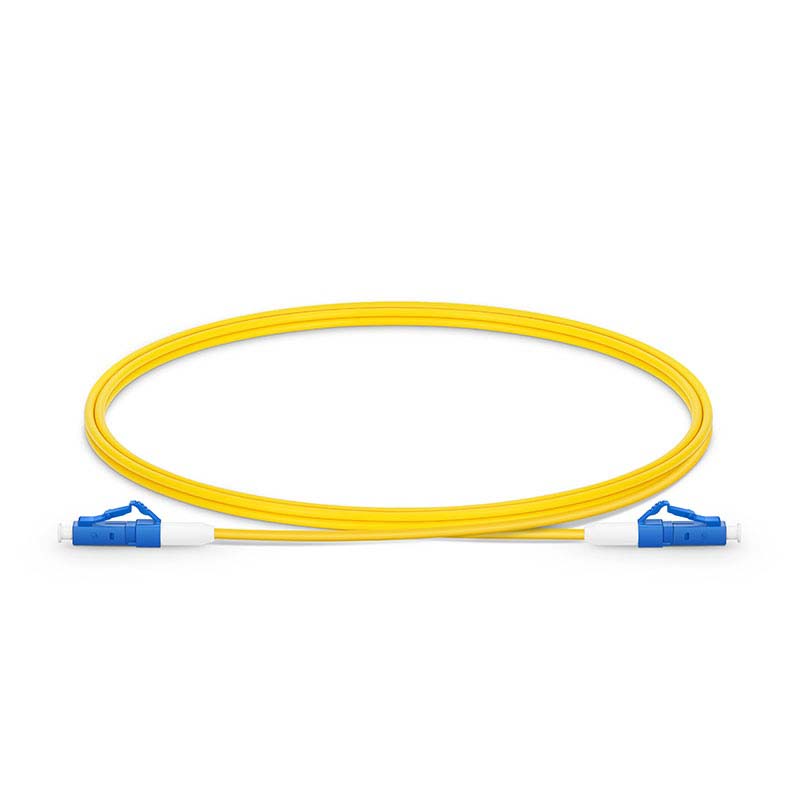

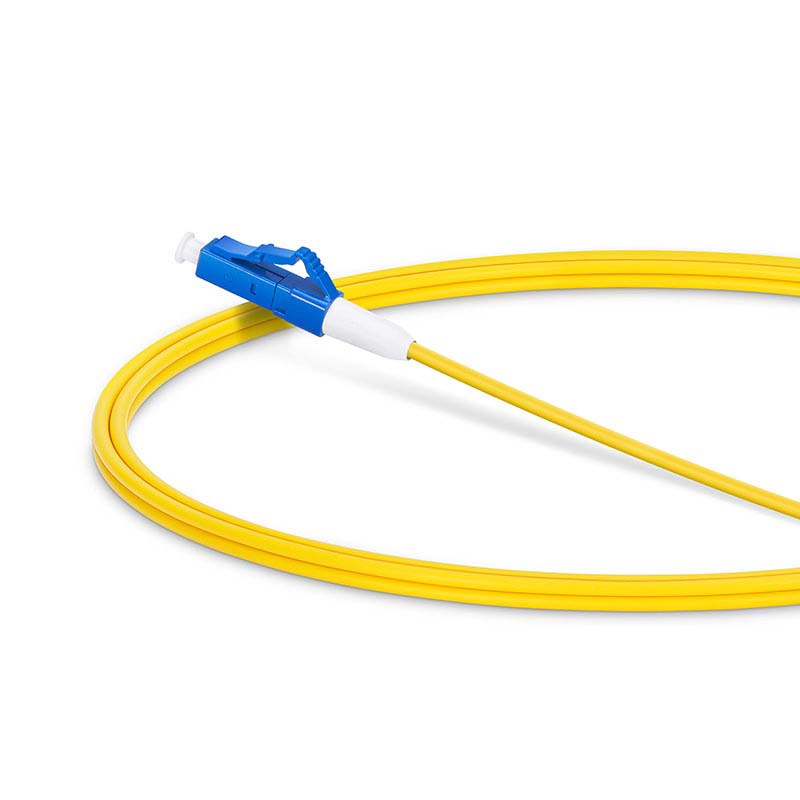

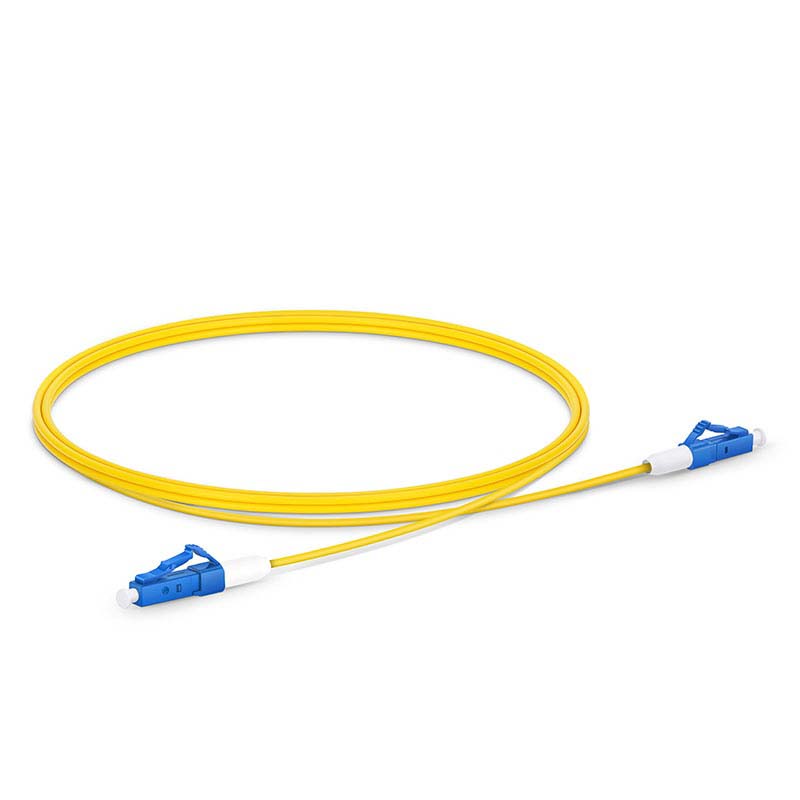

1m LC/UPC-LC/UPC Simplex Single-Mode OS2 G.657.A2 Fiber Patch Cord - 2.0mm PVC
￥20

型号：OS2 9/125 单模

加入购物车

产品特征

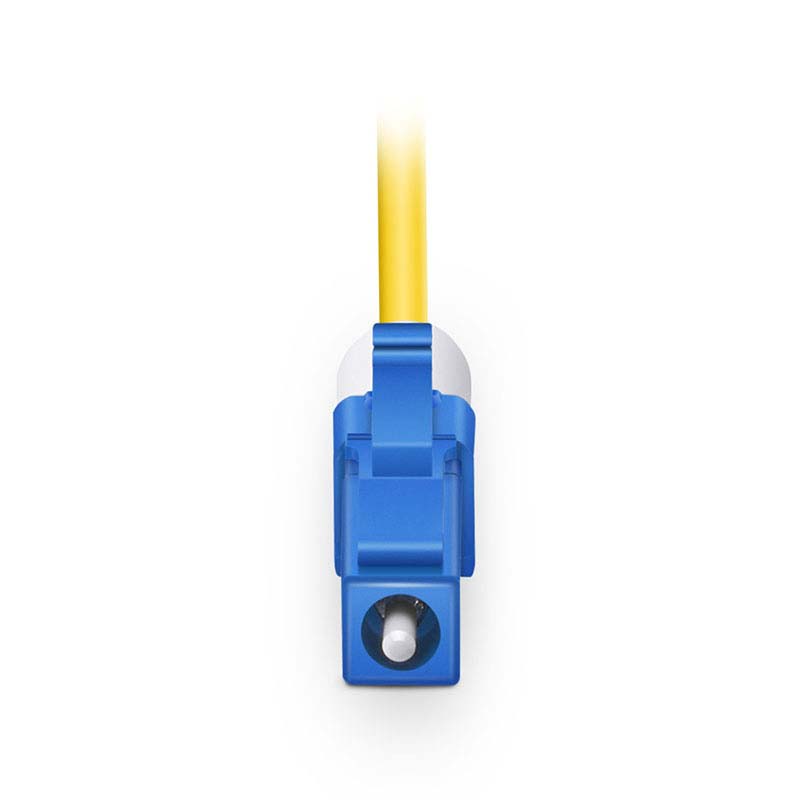

Precision zirconia ferrule connectors ensure low loss, compliant with G.657.A2

Bend-insensitive fiber & 7.5mm minimum bending radius

Optical testing guarantees network performance

Compliant with TIA-604 (FOCIS) standards

  • 商品详情
  • 资料下载(PDF)

High-quality and cost-effective 9/125μm single-mode G.657.A2 bend-insensitive fiber patch cords

G.657.A2 bend-insensitive fiber exhibits significantly lower optical power loss under bending conditions while maintaining compatibility with traditional cabling. It is designed to minimize optical loss during cable bending, enhance the ability to preserve optical performance, and reduce interruptions to chromatic dispersion caused by twisting, bending, or stress—resulting in more durable bandwidth and easier installation.
These patch cords are ideal for 1G/10G/40G/100G/400G Ethernet connections, supporting data transmission distances of up to 10 km at 1310 nm or up to 40 km at 1550 nm.


Specifications：


ParameterSpecification
Connector ALC UPC Simplex
Connector BLC UPC Simplex
Fiber CountSingle-core / Simplex
Fiber GradeG.657.A2
Fiber TypeOS2 9/125μm
Wavelength1310/1550nm
RoHS ComplianceCompliant
Cable TypeTight Buffered
Cable Outer Diameter (OD)2.0mm
Cable JacketLSZH
Minimum Bend Radius (Fiber)10mm
Minimum Bend Radius (Patch Cord)10/5D (Dynamic/Static)
Connector Durability1000 Matings
Tensile Strength (Long/Short Term)60/100N
Insertion Loss≤0.3dB
Return Loss≥50dB
Attenuation @1310nm0.4dB/km
Attenuation @1550nm0.25dB/km
Operating Temperature-20~70°C (-4~158°F)
Storage Temperature-40~80°C (-40~176°F)
