首页 > Fiber Patch Cord > Ordinary Fiber Patch Cords > OS2 single-mode fiber patch cord

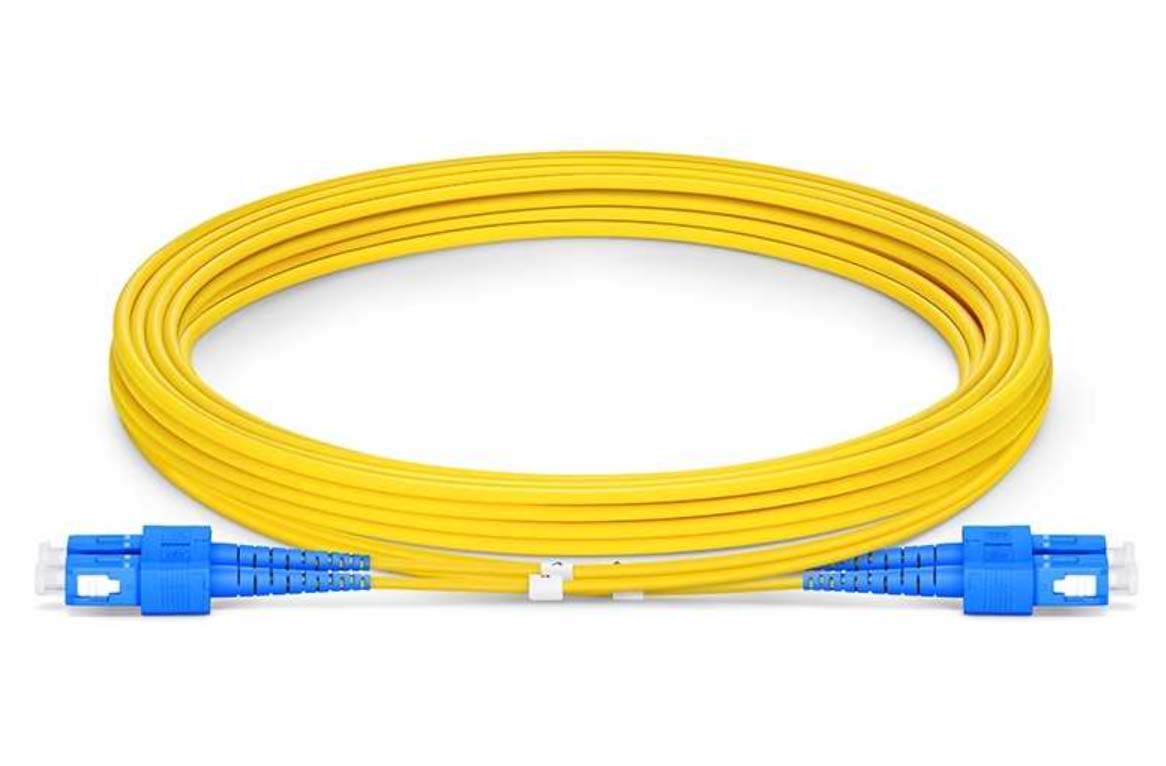

3m SC/UPC-SC/UPC Duplex Single-mode OS2 Fiber Patch Cord, 3.0mm PVC
￥1

型号：HZ-SC-SC-SM-3M

Length:
3m 5m 10m
加入购物车

产品特征

  • 商品详情
  • 资料下载(PDF)

High-quality & Cost-effective 9/125μm Single-mode Fiber Patch Cord


9/125μm single-mode fiber patch cords are RoHS compliant. All patch cords undergo optical insertion loss testing to ensure high quality, and are widely used in network cabling.

Specifications：


Parameter
Connector ASC UPC Duplex
Connector BSC UPC Duplex
Fiber CountDual-core / Duplex
Fiber GradeG.657.A1 (compatible with G.652.D)
PolarityA (Transmit) - B (Receive)
Wavelength1310/1550nm
RoHS ComplianceCompliant
Cable TypeTight Buffered
Cable Outer Diameter (OD)2.0mm
Cable JacketLSZH
Minimum Bend Radius (Fiber)10mm
Minimum Bend Radius (Patch Cord)10/5D (Dynamic/Static)
Connector Durability1000 Matings
Tensile Strength (Long/Short Term)90/150N
Insertion Loss≤0.3dB
Return Loss≥50dB
Attenuation @1310nm0.36dB/km
Attenuation @1550nm0.22dB/km
Operating Temperature-20~70°C (-4~158°F)
Storage Temperature-40~80°C (-40~176°F)
