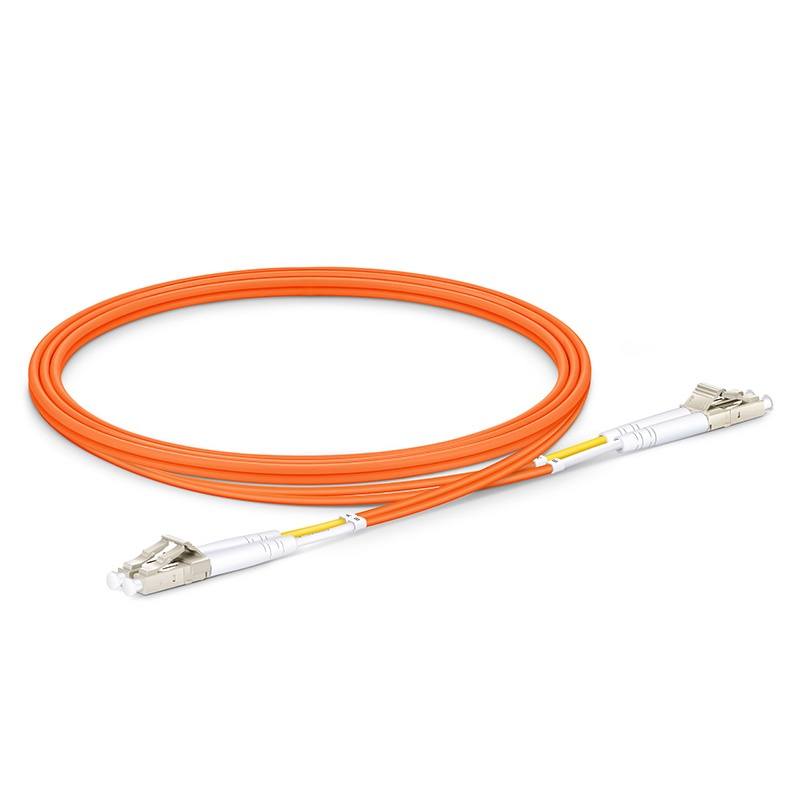

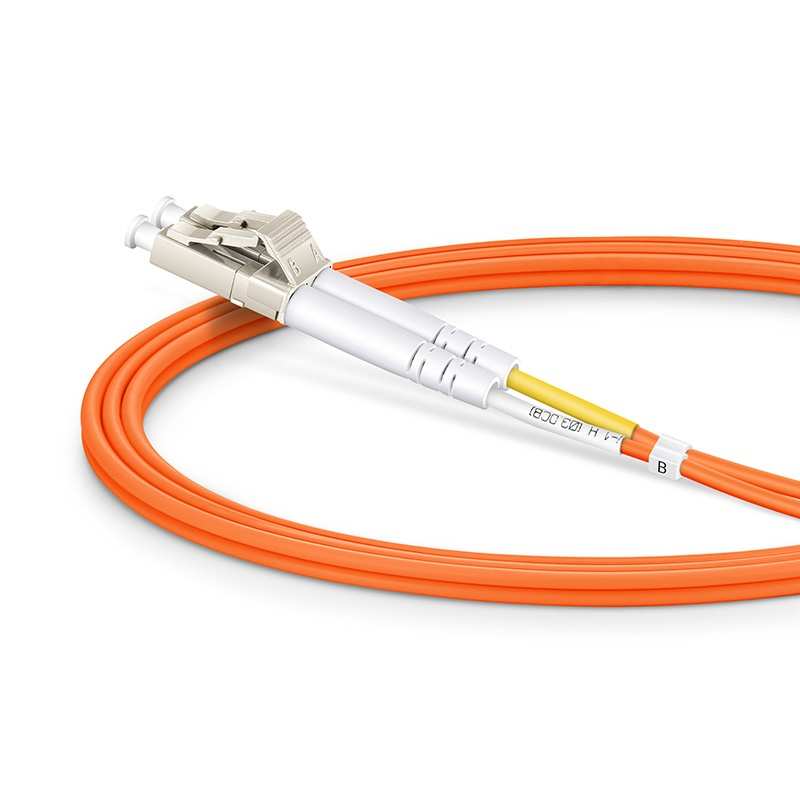

1m LC/UPC-LC/UPC Duplex Multimode OM1 Fiber Patch Cord - 2.0mm PVC

￥35

型号：OM1 Multimode

Length:

1m 2m 3m 5m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

10N tensile strength and 180° rotating connector

The guide kit has a tensile strength of 10N and a connector rotation function of 180°

商品详情
资料下载(PDF)

High - quality and Cost - effective 62.5/125μm OM1 Multimode Fiber Optic Jumper

The 62.5/125μm OM1 multimode fiber optic jumper is suitable for Fast Ethernet, Gigabit Ethernet, and Fiber Channel applications. It can also provide more high - density cabling space for data centers, enterprise networks, telecommunication equipment rooms, servers, cloud storage networks, etc., and connect pre - terminated cassette distribution modules in the main distribution, horizontal distribution, and equipment distribution areas.

This type of 62.5/125 OM1 multimode fiber optic jumper is very suitable for connecting to 100/1000BASE - SX optical modules, etc., and is used for Fast Ethernet, Gigabit Ethernet, and Fiber Channel applications.

Specifications and Parameters

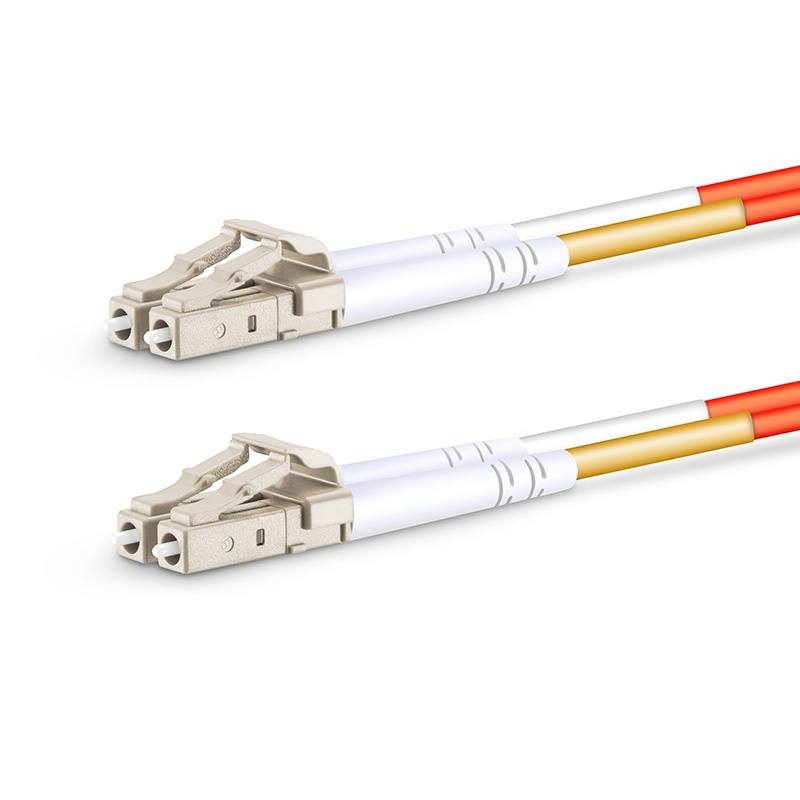

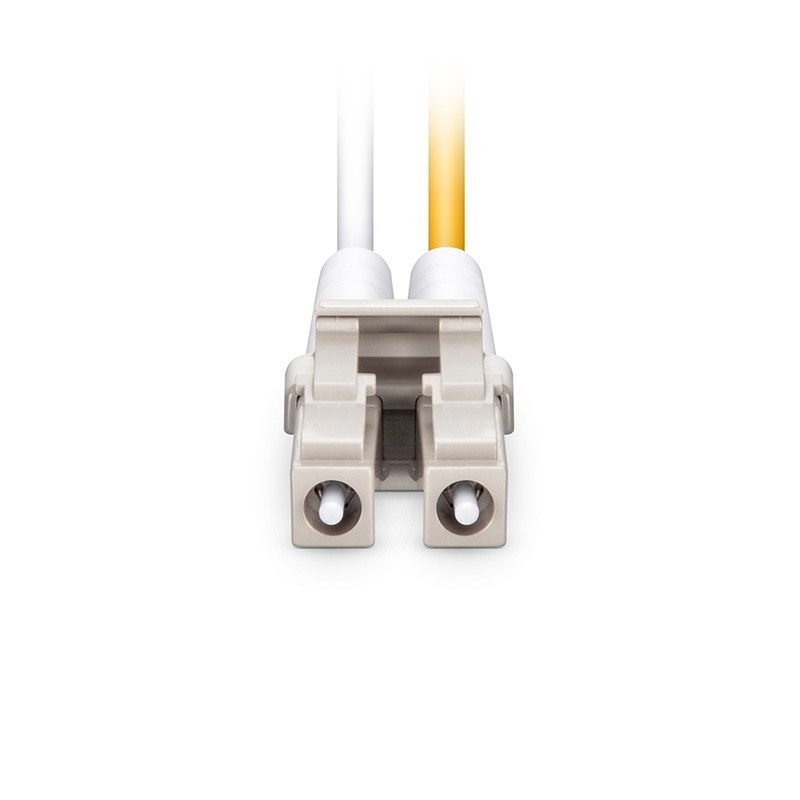

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Fiber Core Count	Dual - core	Fiber Grade	G.651
Fiber Type	OM1 62.5/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bend Radius (Fiber Core)	15mm	Minimum Bend Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation @1310nm	3.0dB/km	Attenuation @1550nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
