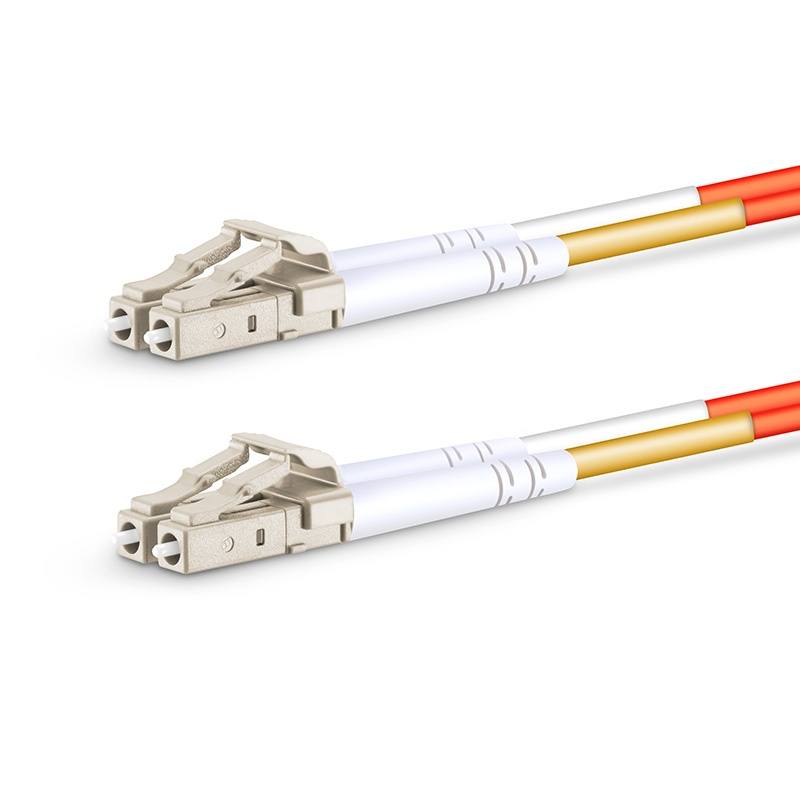

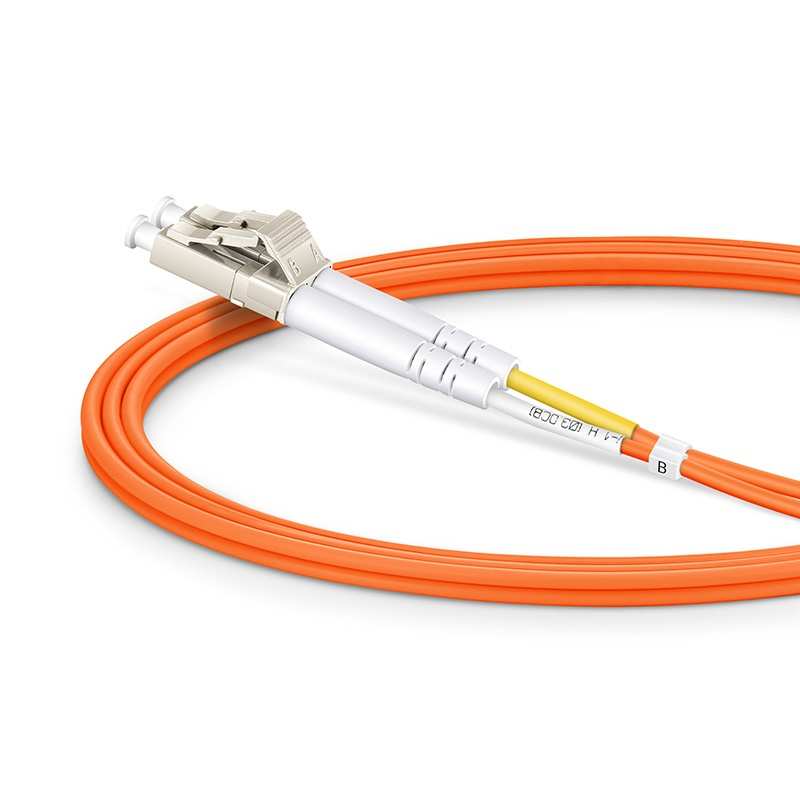

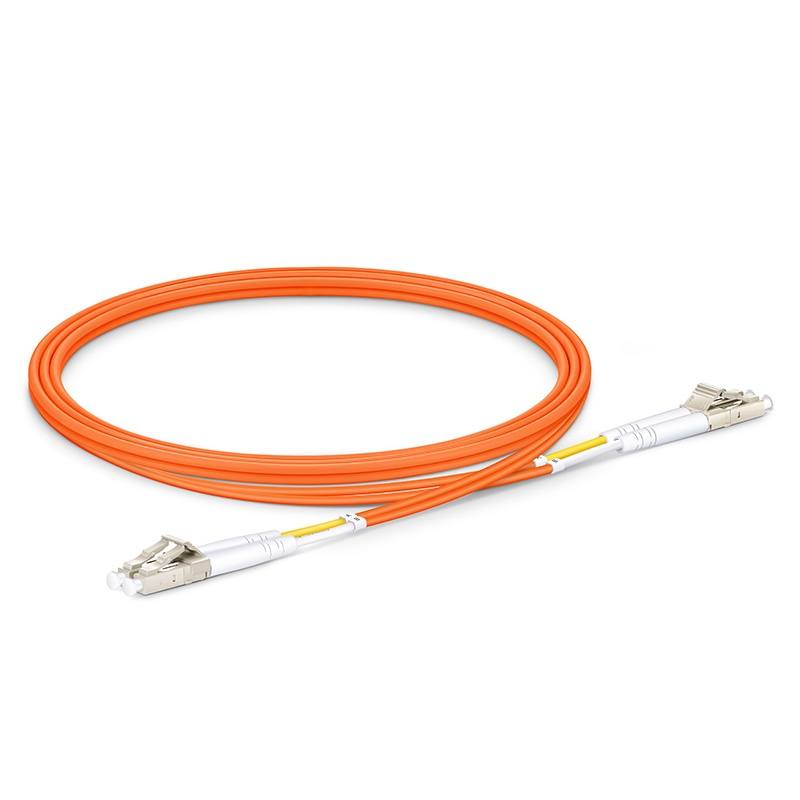

1m LC/UPC-LC/UPC Duplex Multimode OM2 Fiber Patch Cord - 2.0mm PVC

￥35

型号：HZ-LC-LC-DX-1M2

Length:

1m 2m 3m 5m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

Bend-insensitive optical fiber, minimum bend radius 7.5mm

Can be used for OM1 applications, longer distance, lower loss

Optical testing ensures network performance

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS)

商品详情
资料下载(PDF)

High - Quality and Cost - Effective 50/125μm OM2 Multimode Bend - Insensitive Fiber Optic Jumper

Compared with traditional fiber optic jumpers, the 50/125μm OM2 multimode bend - insensitive fiber optic jumper has less attenuation when bent or twisted, which will make the installation and maintenance of the fiber optic jumper more efficient. It can also provide more high - density cabling space for data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, etc., and connect pre - terminated cassette distribution modules in the main distribution, horizontal distribution, and equipment distribution areas.

This type of 50/125 OM2 multimode fiber optic jumper is very suitable for connecting 1000BASE - SX, SFP optical modules, etc., and is used in Gigabit Ethernet and Fibre Channel applications.

Specifications and Parameters

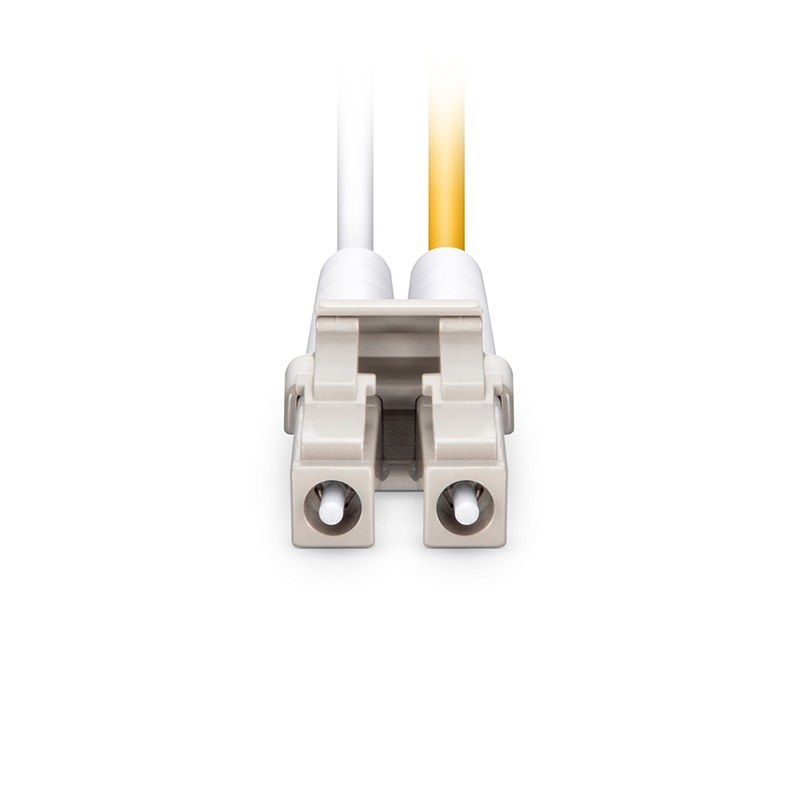

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	G.651
Fiber Type	OM2 50/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
