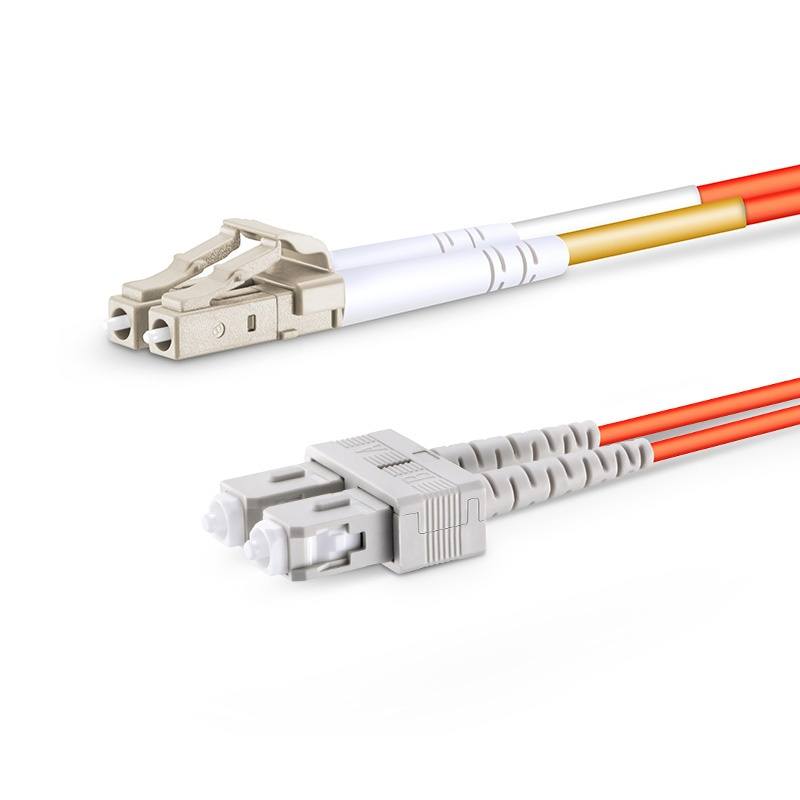

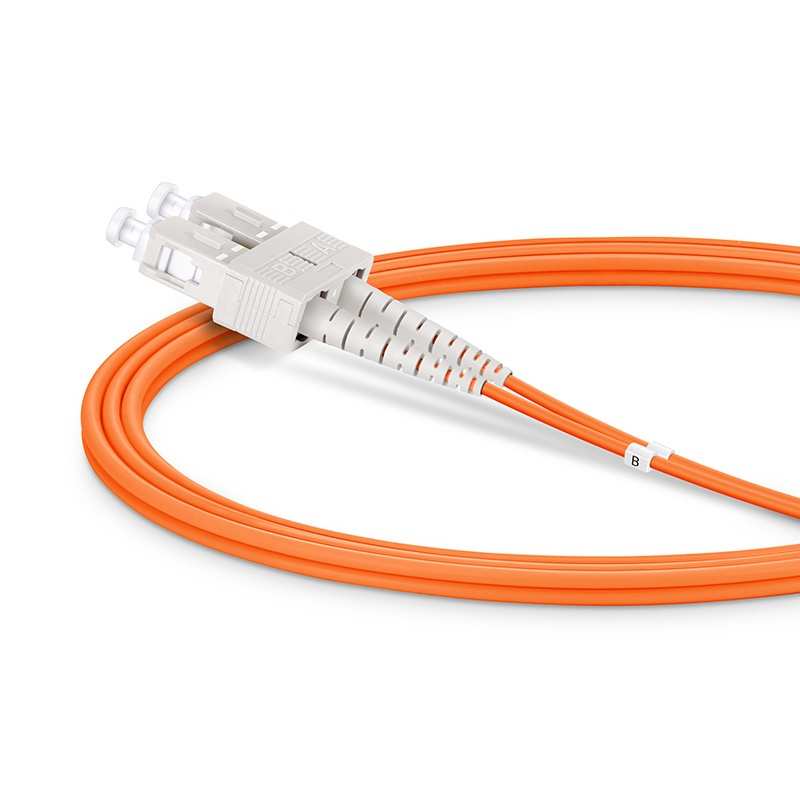

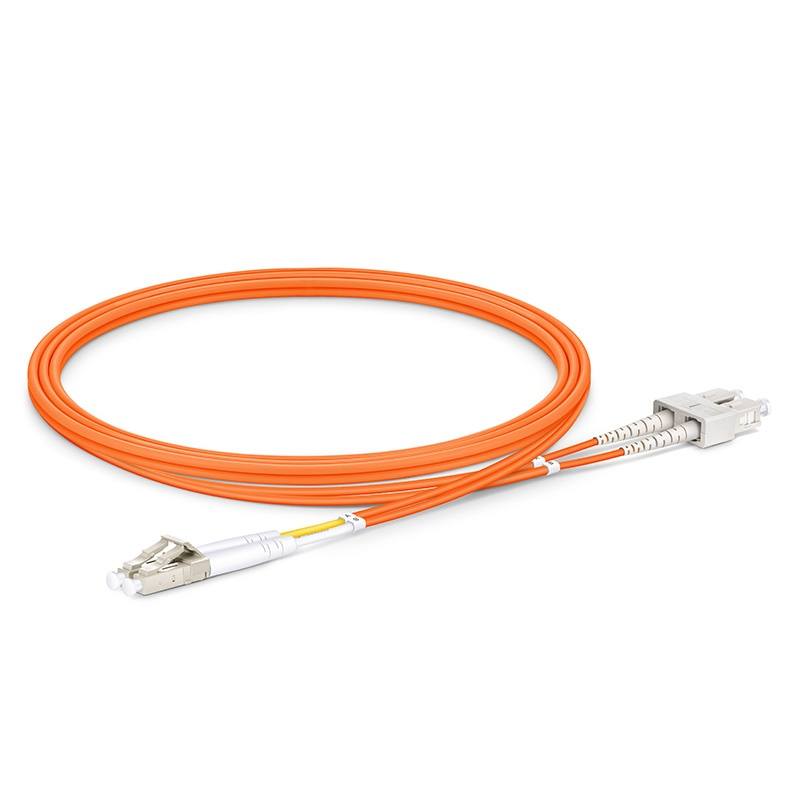

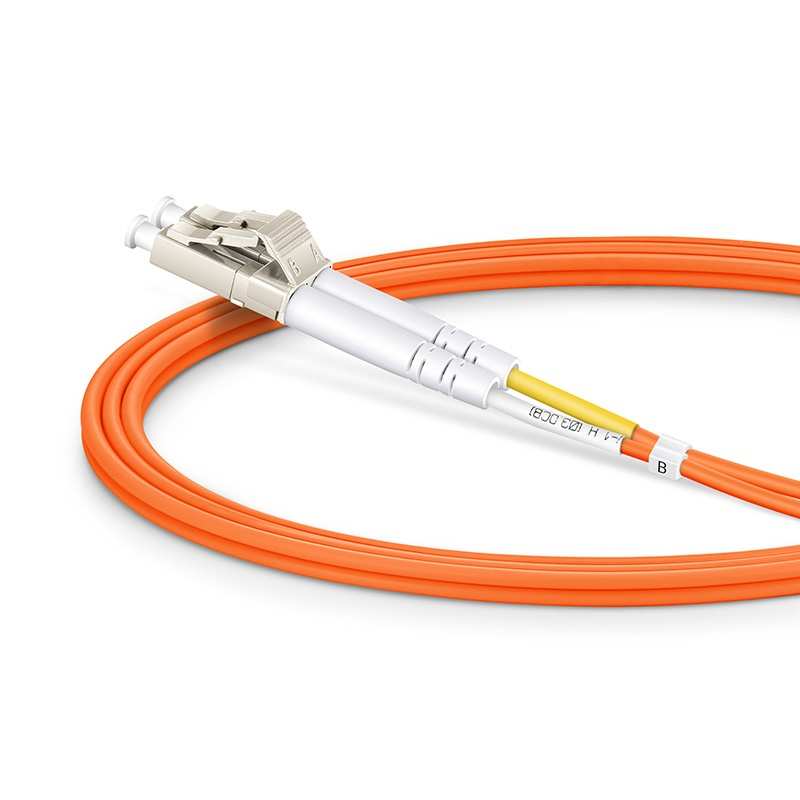

1m LC/UPC-SC/UPC Duplex Multimode OM1 Fiber Patch Cord - 2.0mm PVC

￥35

型号：OM1 Multimode

Length:

1m 2m 3m 5m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

10N tensile strength and 180° rotating connector

The guide kit has a tensile strength of 10N and a connector rotation function of 180°

Optical testing ensures network performance

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS)

商品详情
资料下载(PDF)

High-Quality and Cost-Effective 62.5/125μm OM1 Multimode Fiber Optic Jumper

The 62.5/125μm OM1 multimode fiber optic jumper is suitable for Fast Ethernet, Gigabit Ethernet, and Fibre Channel applications. It can also provide more high - density cabling space for data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, etc., and connect pre - terminated cassette distribution modules in the main distribution, horizontal distribution, and equipment distribution areas. This type of 62.5/125μm OM1 multimode fiber optic jumper is very suitable for connecting 100/1000BASE - SX optical modules, etc., and is used in Fast Ethernet, Gigabit Ethernet, and Fibre Channel applications.

Specification Parameters

Connector A	LC UPC Duplex	Connector B	ST UPC Duplex
Number of Fiber Cores	Dual - core	Fiber Grade	G.651
Fiber Type	OM1 62.5/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	15mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
