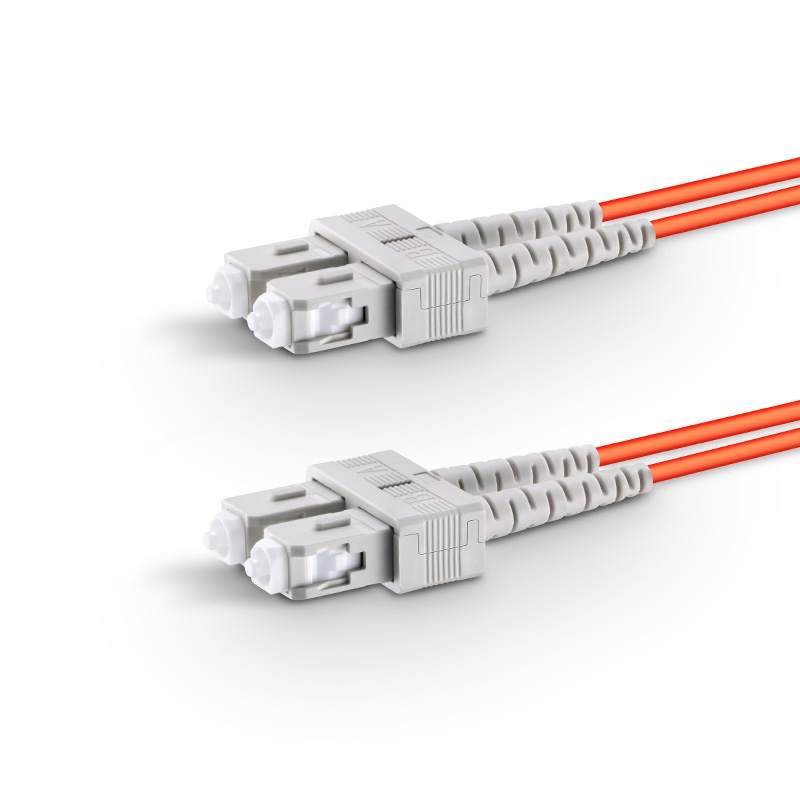

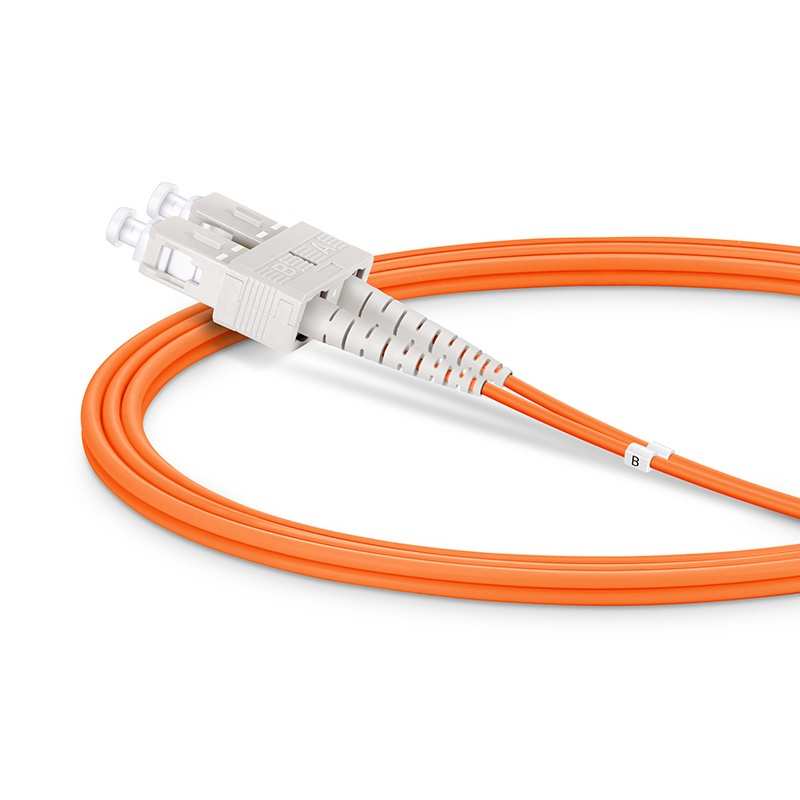

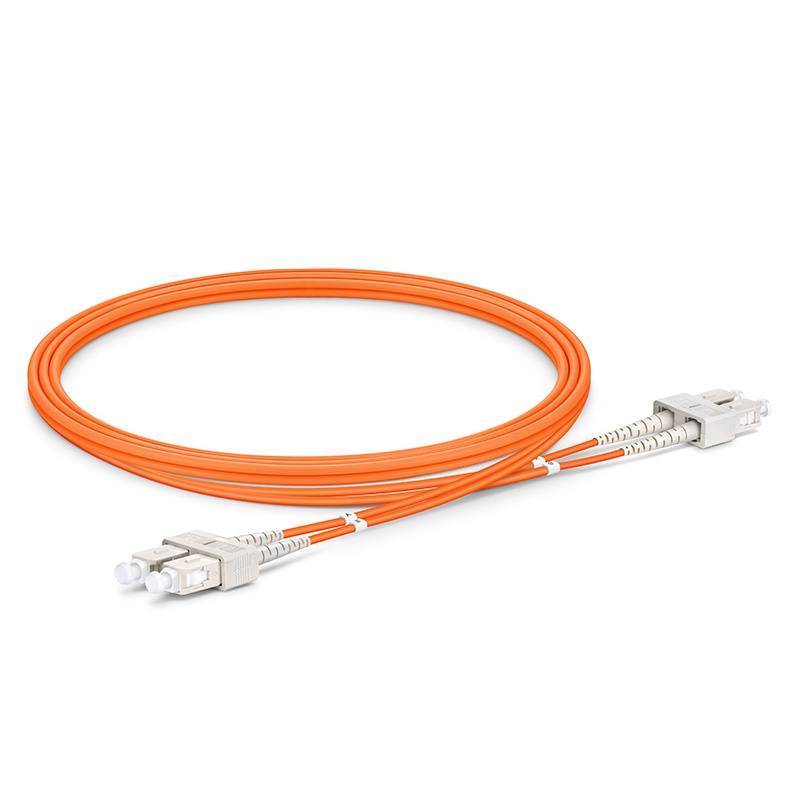

1m SC/UPC-SC/UPC Duplex Multimode OM1 Fiber Patch Cord - 2.0mm PVC

￥35

型号：OM1 Multimode

Length:

1m 2m 3m 5m

加入购物车

产品特征

Precision zirconia ferrule connector ensures low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

10N tensile strength and 180° rotating connector

The guide kit has a tensile strength of 10N and a connector rotation of 180°

Optical testing ensures network performance

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS)

商品详情
资料下载(PDF)

High-Quality and Cost-Effective 62.5/125μm OM1 Multimode Fiber Optic Jumper

The 62.5/125μm OM1 multimode fiber optic jumper is suitable for Fast Ethernet, Gigabit Ethernet, and Fibre Channel applications, such as data centers, telecommunications rooms, server farms, cloud storage networks, and anywhere fiber optic jumpers are needed. This type of 62.5/125μm OM1 multimode fiber optic jumper is ideal for connecting 100/1000BASE-SX optical modules and the like, and is used in Fast Ethernet, Gigabit Ethernet, and Fibre Channel applications.

Specification Parameters

Connector A	SC UPC Duplex	Connector B	SC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	G.651
Fiber Type	OM1 62.5/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	15mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
