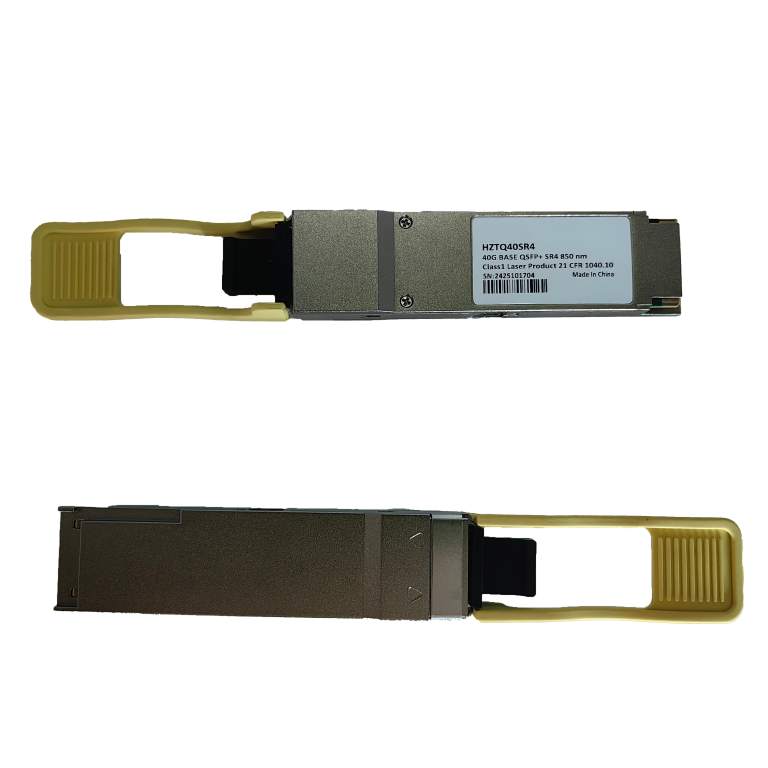

HZTQ40SR4
￥140

型号：HZTQ40SR4

加入购物车

产品特征

Hot-swappable QSFP form factor

Supports bit rates up to 10.3125 Gb/s per channel

Single MPO12 interface

4x10.3125G/s 850nm VCSEL transmitter, PIN array detector

Operating box temperature: 0 to 70℃

Low power consumption <1.5W

The maximum link length on OM3 multimode fiber (MMF) is 100 meters

All-metal casing, featuring excellent EMI performance

IIC Management Interface

Single-channel 3.3V power supply

  • 商品详情
  • 资料下载(PDF)

光模块01

光模块02

光模块03

Applications

•40G Ethernet

• Infiniband QDR interconnection

• Access to 4x10G base SR Ethernet

standard

•IEEE 802.3ba

•SFF-8636

•Compliant with RoHS standards (lead-free)

Order Information

Part number

Product Description

HZTQ40SR4

QSFP+, 40Gbps, SR4, MM, 100m, 0ºC ~ +70ºC, With DDM
