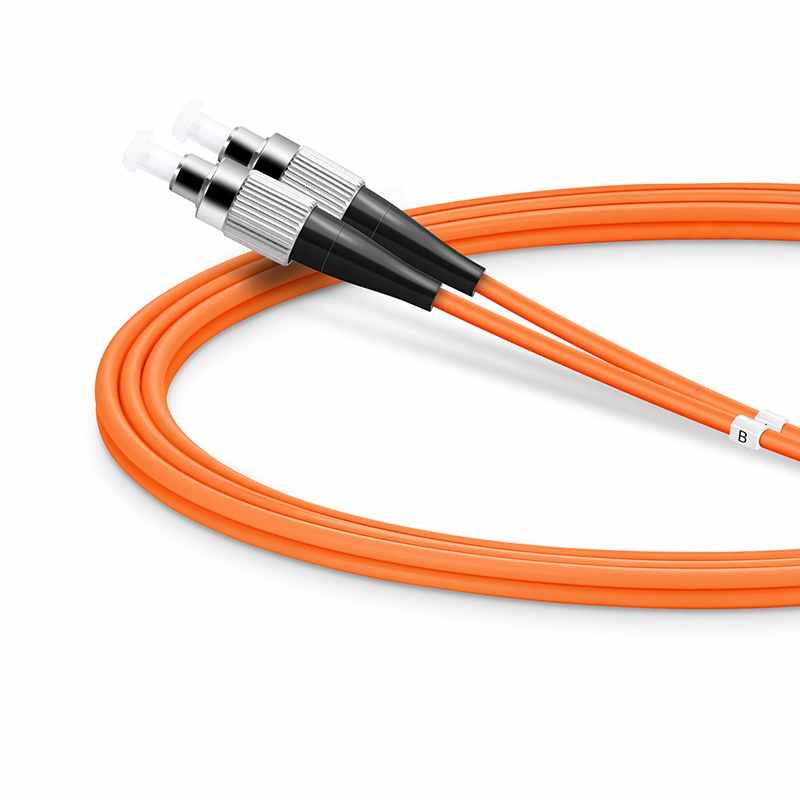

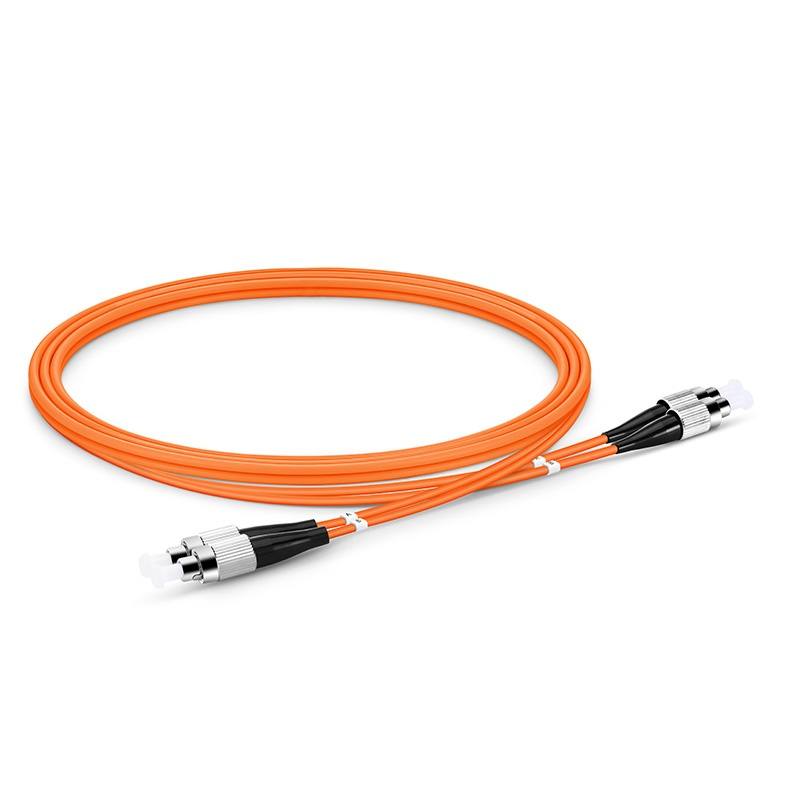

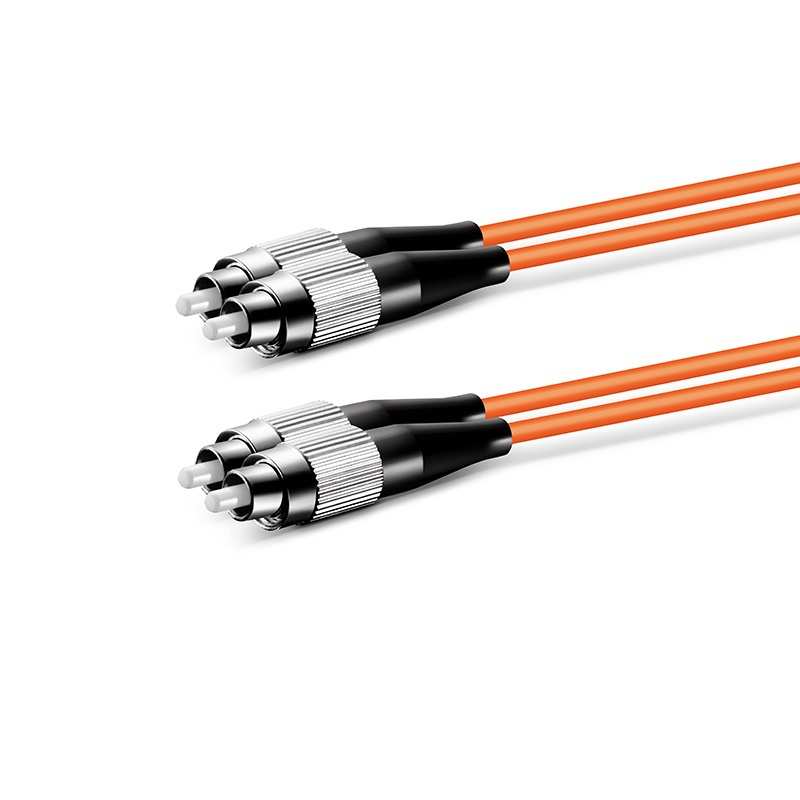

1m FC/UPC-FC/UPC Duplex Multimode OM1 Fiber Patch Cord - 2.0mm PVC

￥1

型号：OM1 Multimode

产品特征

商品详情
资料下载(PDF)

OM1 Multimode Fiber Optic Patch Cord

The 62.5/125μm OM1 multimode fiber optic patch cord is suitable for Fast Ethernet, Gigabit Ethernet, and Fibre Channel applications. It can also provide more high - density wiring space for data centers, enterprise networks, telecom equipment rooms, servers, cloud storage networks, etc. , and connect pre - terminated cassette distribution modules in the main distribution, horizontal distribution, and equipment distribution areas. This 62.5/125 OM1 multimode fiber optic patch cord is very suitable for connecting 100/1000BASE - SX optical transceivers, etc. , and is used in Fast Ethernet, Gigabit Ethernet, and Fibre Channel applications.

Specification Parameters

Connector A	FC UPC Duplex	Connector B	FC UPC Duplex
Fiber Count	Dual - core	Fiber Grade	G.651
Fiber Type	OM1 62.5/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight - buffered
Cable Outer Diameter (OD)	2.0mm	Cable Jacket	LSZH
Minimum Bend Radius (Fiber)	15mm	Minimum Bend Radius (Patch Cord)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long - term/Short - term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation @850nm	3.0dB/km	Attenuation @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)

线缆详情页04+05

线缆详情页06

线缆详情页07+08
