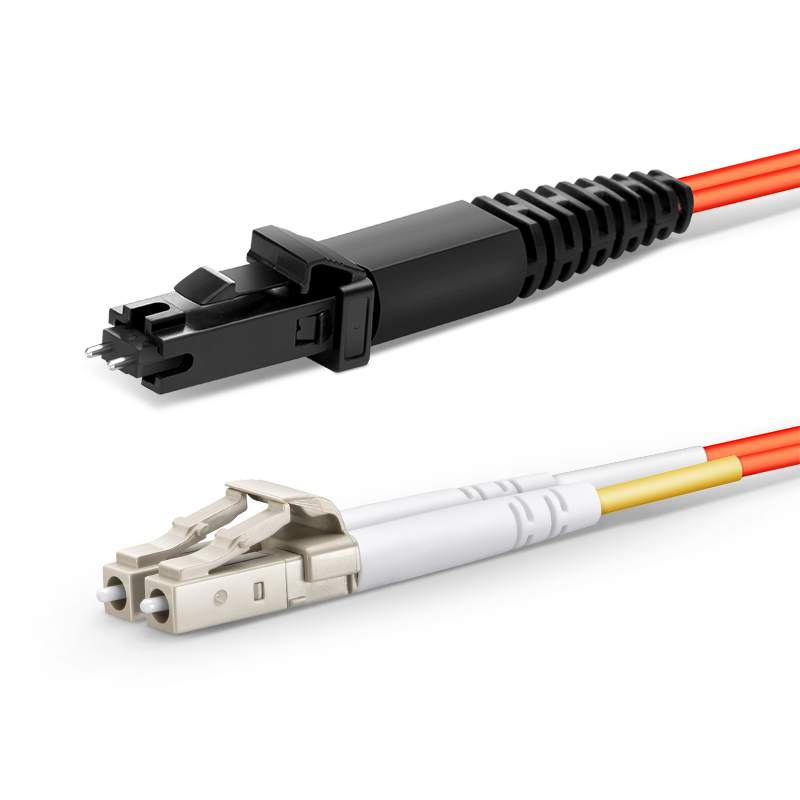

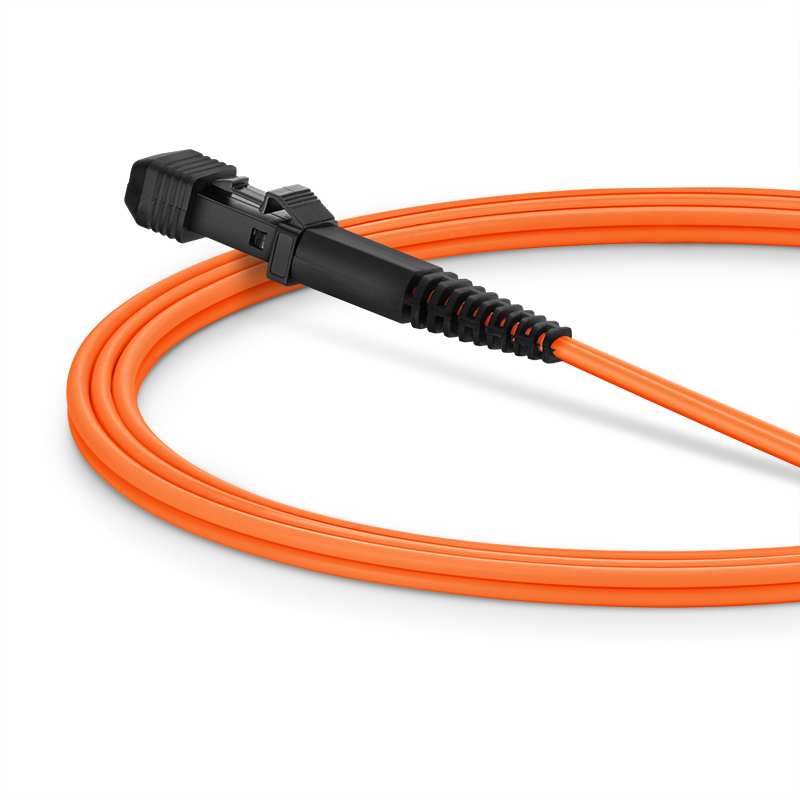

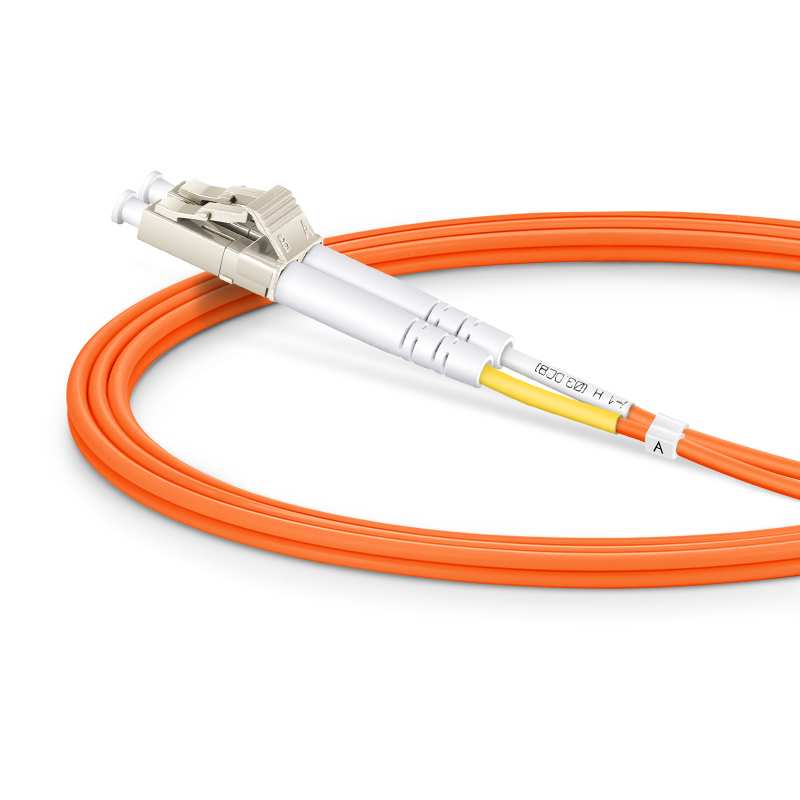

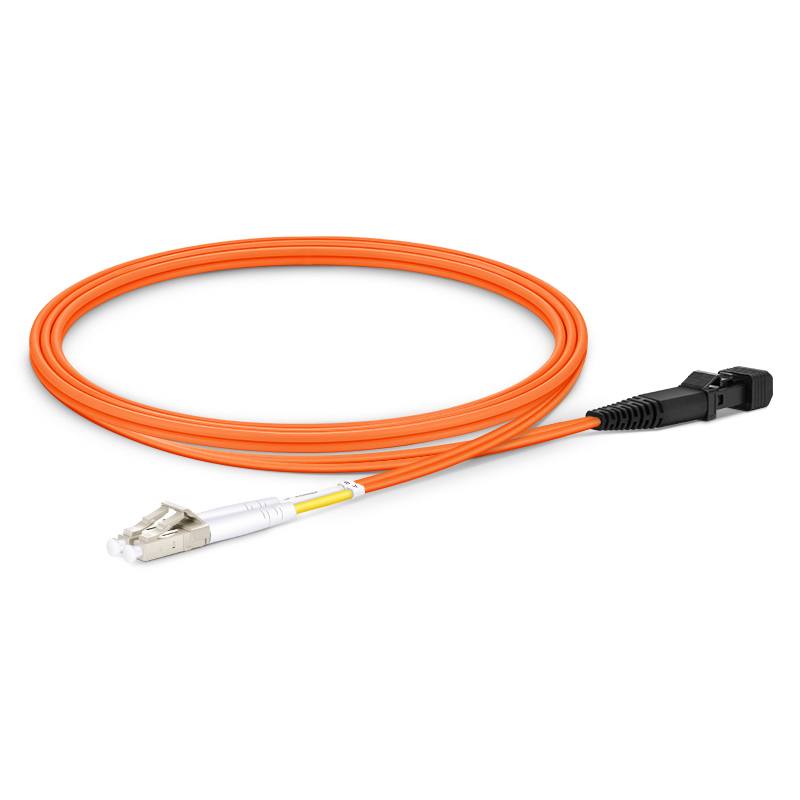

1m MTRJ/UPC-LC/UPC Duplex Multimode OM2 Fiber Patch Cable - 1.8mm PVC

￥50

型号：OM2 Multimode

加入购物车

产品特征

Precision zirconia ferrule connectors ensure low loss

The double-layer fiber core structure provides better mechanical performance and a lower risk of curling damage.

G.657.A1 bend-insensitive optical fiber & 7.5mm minimum bend radius

Can be used for OM1 applications, with longer transmission distance and lower loss

Optical testing ensures network performance

Specifically designed for aerial, direct-buried, and pipeline installation

Compliant with TIA-604 (FOCIS)

商品详情
资料下载(PDF)

1m MTRJ/UPC - LC/UPC Duplex Multimode OM2 Fiber Optic Jumper - 1.8mm PVC (OFNR)

Compared with traditional fiber optic jumpers, the 50/125μm OM2 multimode bend - insensitive fiber optic jumper has less attenuation when bent or twisted. This makes the installation and maintenance of the fiber optic jumper more efficient. It can also provide more high - density cabling space for data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, etc., and connect pre - terminated cassette distribution modules in the main distribution, horizontal distribution, and equipment distribution areas.

This type of 50/125 OM2 multimode fiber optic jumper is very suitable for connecting 1000BASE - SX, SFP optical modules, etc., and is used in Gigabit Ethernet and Fibre Channel applications.

Specifications and Parameters

Connector A	MTRJ UPC Male	Connector B	LC UPC Duplex
Number of Fiber Cores	Dual-core	Fiber Grade	Bend-insensitive
Fiber Type	OM2 50/125μm	Wavelength	850/1300nm
Polarity	A (Transmitting End) - B (Receiving End)	Cable Type	Tight Buffer
Cable Outer Diameter (OD)	2.0mm	Cable Outer Sheath	LSZH
Minimum Bending Radius (Fiber Core)	7.5mm	Minimum Bending Radius (Jumper)	20/10D (Dynamic/Static)
Connector Durability	1000 Cycles	Tensile Strength (Long-term/Short-term)	90/150N
Insertion Loss	≤0.3dB	Return Loss	≥30dB
Attenuation Value @850nm	3.0dB/km	Attenuation Value @1300nm	1.0dB/km
Operating Temperature	-20~70°C (-4~158°F)	Storage Temperature	-40~80°C (-40~176°F)
