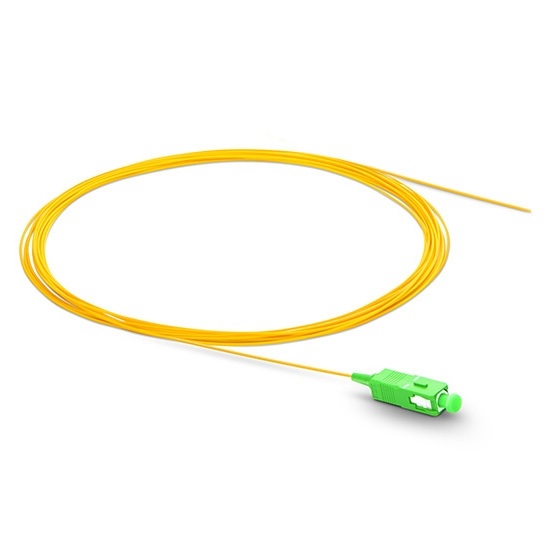

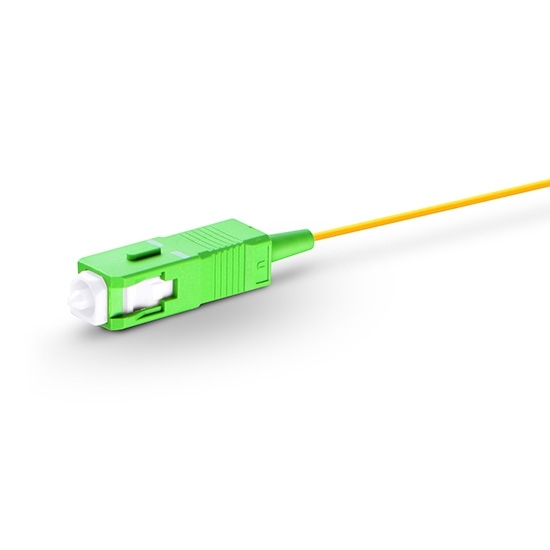

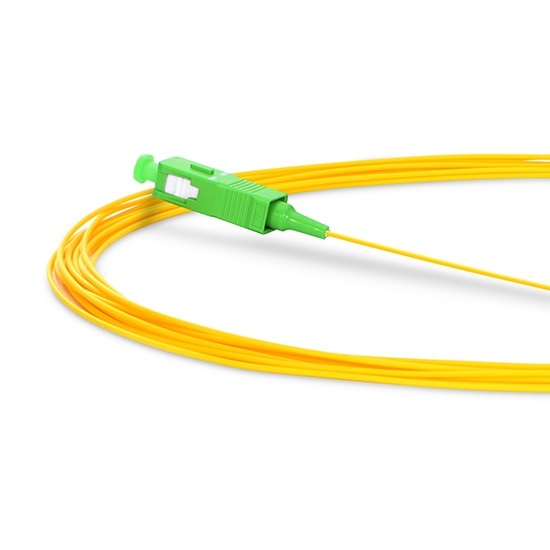

1m SC/APC Single-Mode OS2 Fiber Patch Cord - 0.9mm PVC

￥13

型号：SC APC|OS2

Length:

1m 2m

Series:

加入购物车

产品特征

G.657.A1 bend-resistant optical fiber with a minimum bending radius of 10mm

Color coding facilitates splicing with 0.9mm optical fibers

Easily peelable 900 μm tight coating

Industrial-grade PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

SC/APC Single - fiber Single - mode OS2 Fiber Pigtail - 0.9mm PVC (LSZH)

Fiber pigtails provide a fast method for manufacturing communication equipment on - site. Designed, manufactured, and tested in accordance with protocols and performance specified by industry standards, they will meet the most stringent mechanical and performance specifications.

Specification Parameters

Connector A	SC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Configuration	Simplex
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	APC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Yellow
Wavelength	1310 nm/1550 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥60 dB	Interchangeability	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
