1m SC/UPC Single-Mode OS2 Fiber Patch Cord - 0.9mm PVC

￥13

型号：SC UPC|OS2

Length:

1m 2m

Series:

加入购物车

产品特征

G.657.A1 bend-insensitive optical fiber & minimum bending radius of 10mm

Insertion loss and return loss both meet optical inspection standards

Meets all performance requirements of IEC-61754 and TIA-604 (FOCIS)

Support splicing and mechanical fusion of fiber optic cabling systems

商品详情
资料下载(PDF)

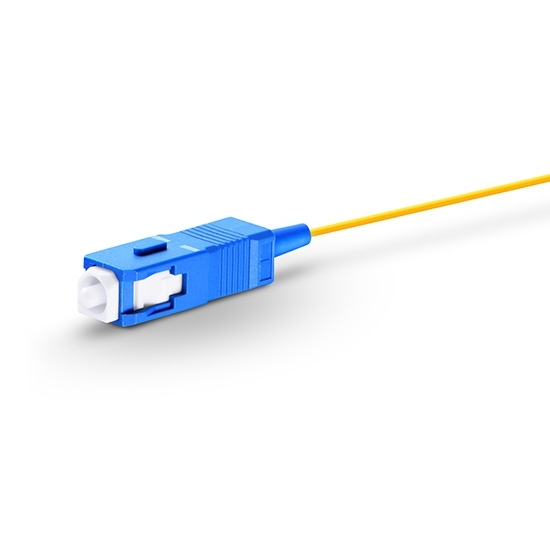

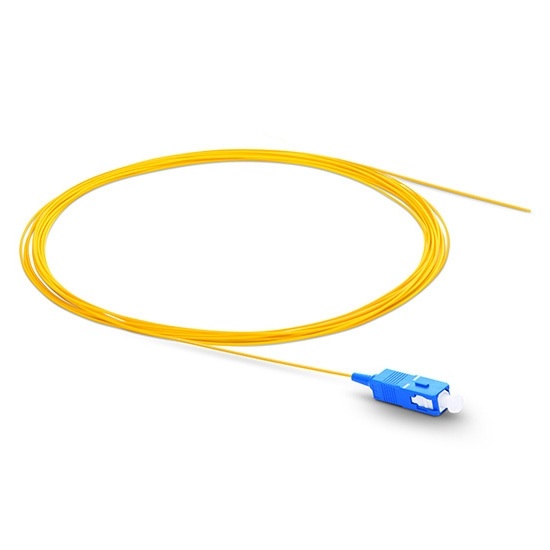

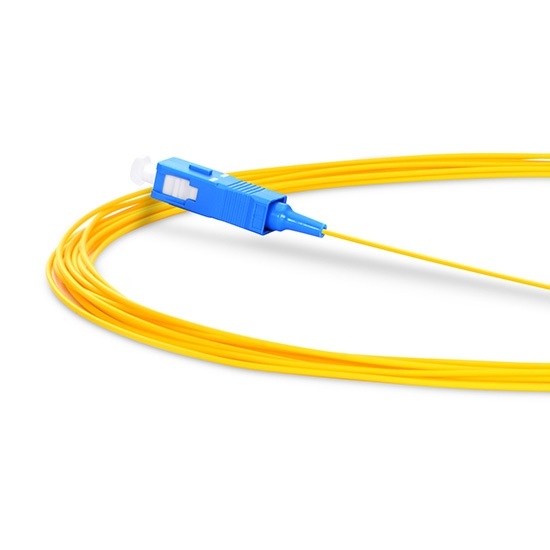

SC/UPC Simplex Single-mode OS2 Fiber Pigtail - 0.9mm PVC

Fiber pigtails provide a fast method for manufacturing communication equipment on - site. Designed, manufactured, and tested in accordance with the protocols and performance specified by industry standards, they will meet the most stringent mechanical and performance specifications.

Specifications and Parameters

Connector A	SC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Configuration	Simplex
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Yellow
Wavelength	1310 nm/1550 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥50 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

线缆详情页04+05

线缆详情页06

线缆详情页07+08
