1m LC/UPC Single-Mode Multimode OM3 Fiber Patch Cord - 0.9mm PVC

￥13

型号：LC UPC|OM3

Length:

1m 2m

Series:

加入购物车

产品特征

G.657.A1 bend-insensitive optical fiber & minimum bending radius of 10mm

Insertion loss and return loss both meet optical inspection standards

Meets all performance requirements of IEC-61754 and TIA-604 (FOCIS)

Supports splicing and mechanical fusion of fiber optic cabling systems

商品详情
资料下载(PDF)

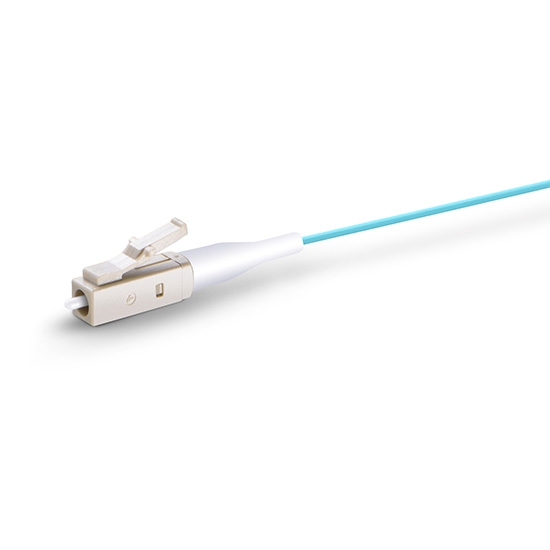

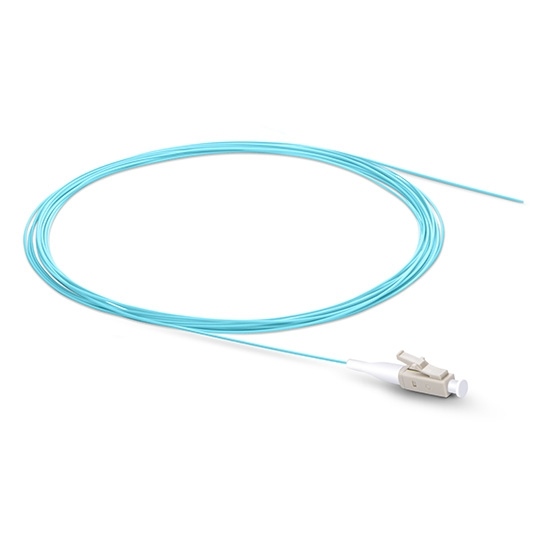

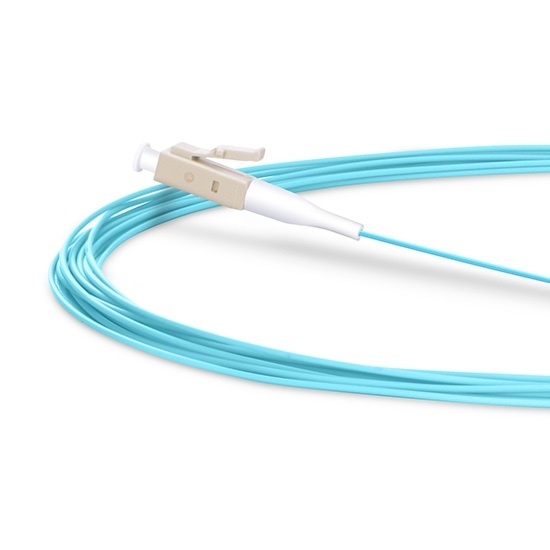

LC/UPC Simplex Multimode Fiber Pigtail - 0.9mm PVC

Fiber pigtails provide a fast method for manufacturing communication equipment on - site. Designed, manufactured, and tested in accordance with the protocols and performance specified by industry standards, they will meet the most stringent mechanical and performance specifications.

Specification Parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	50/125 μm	Fiber Configuration	Simplex
Fiber Grade	Bend - Insensitive	Fiber Core Diameter	7.5 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Aqua Blue
Wavelength	850 nm/1300 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥30 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
