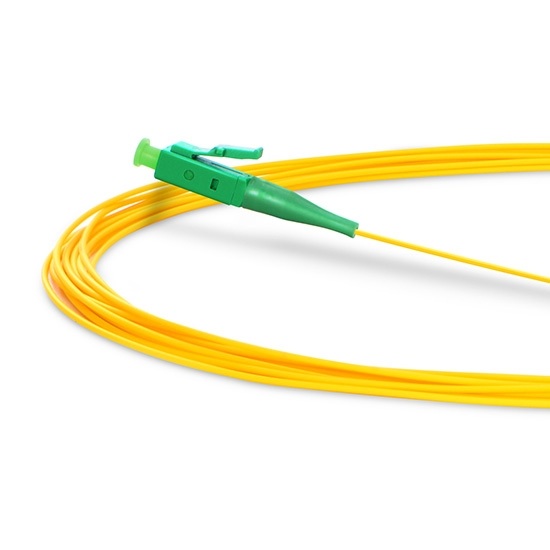

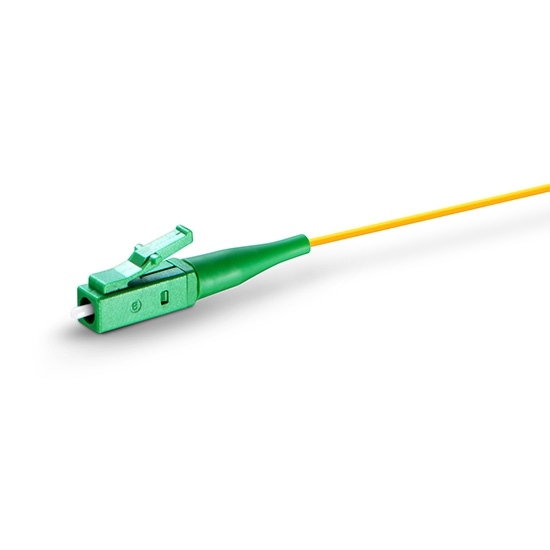

1m LC/APC Single-Mode OS2 Fiber Patch Cord - 0.9mm PVC

￥13

型号：LC APC|OS2

Length:

1m 2m

Series:

加入购物车

产品特征

G.657.A1 bend-resistant optical fiber with a minimum bending radius of 10mm

Color coding facilitates splicing with 0.9mm optical fibers

Easily peelable 900 μm tight coating

Industrial-grade PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

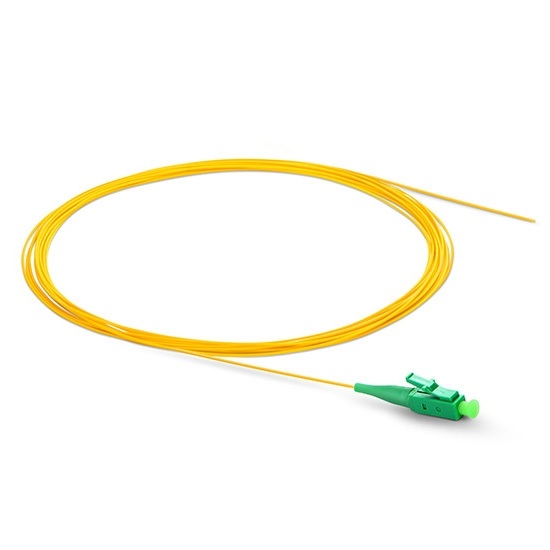

LC/APC Simplex Single-mode OS2 Fiber Pigtail - 0.9mm PVC (LSZH)

Fiber pigtails provide a fast method for manufacturing communication equipment on - site. Designed, manufactured, and tested in accordance with the protocols and performance specified by industry standards, they will meet the most stringent mechanical and performance specifications.

Specifications and parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Configuration	Simplex
Fiber Grade	Bend - Insensitive	Fiber Core Diameter	10 mm
Polish Type	APC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Yellow
Wavelength	1310 nm/1550 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥60 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

线缆详情页04+05

线缆详情页06

线缆详情页07+08
