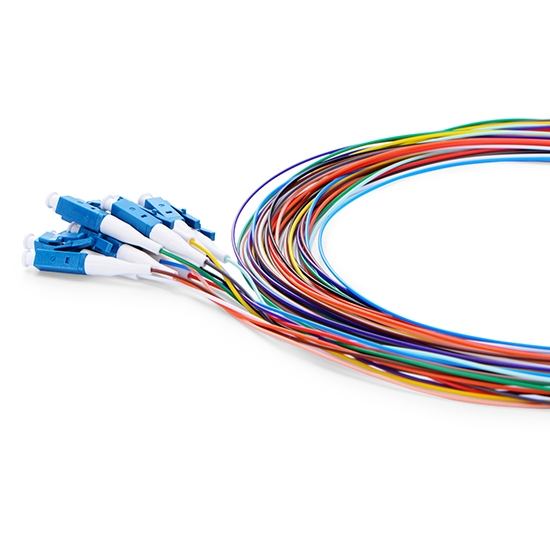

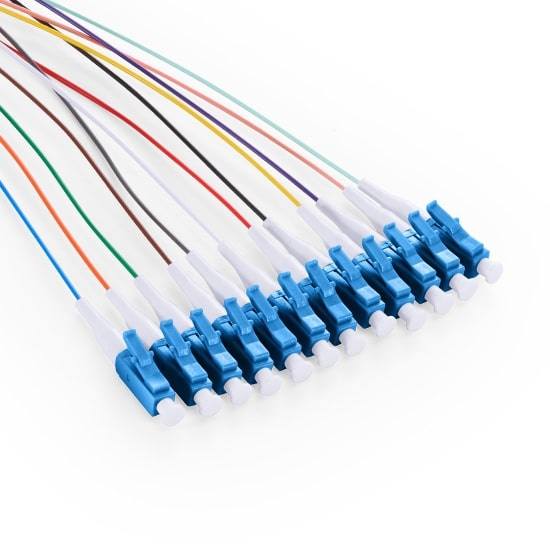

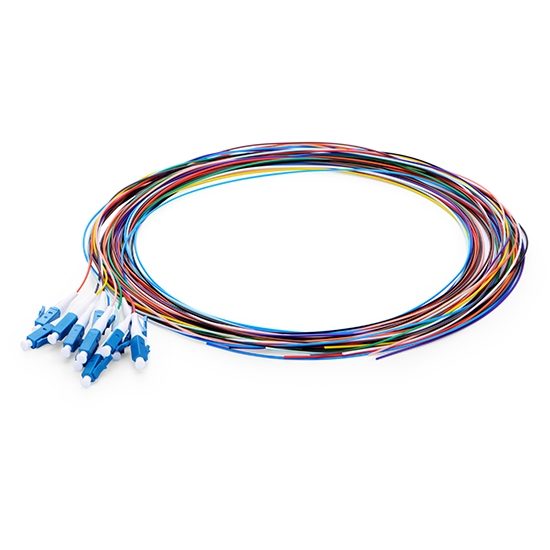

1m (3ft) LC UPC 12-core OS2 single-mode unjacketed color-coded PVC 0.9mm fiber optic pigtail

￥110

型号：LC UPC|OS2

Length:

1m 2m

Series:

LC UPC|OS2 LC APC |OS2 SC APC|OS2 SC UPC|OS2

加入购物车

产品特征

Insertion loss and return loss both meet optical inspection standards

Color-coded, easy for connectors to identify

Meets all performance requirements of IEC-61754 and TIA-608 (FOCIS)

Support splicing and mechanical fusion of fiber optic cabling systems

商品详情
资料下载(PDF)

12 - Core LC/UPC Single - Mode Colored Fiber Pigtail - No Outer Jacket

Fiber pigtails provide a means to rapidly manufacture on - site communication equipment. They are designed, manufactured, and tested in accordance with the protocols and performance specified by industrial standards, and can meet your most stringent mechanical and performance requirements.

Specification Parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Count	12
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Wavelength	1310 nm/1550 nm	Fiber Pigtail Color	12 Colors
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥50 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

线缆详情页04+05

线缆详情页06

线缆详情页07+08
