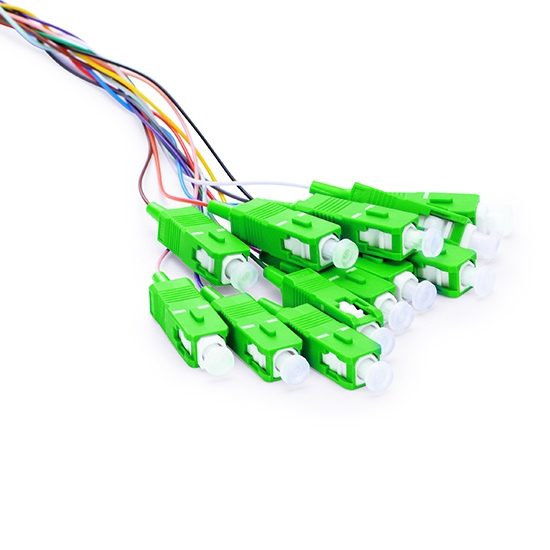

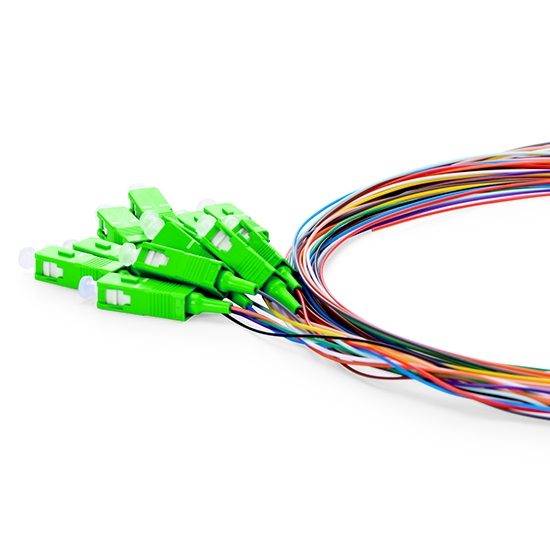

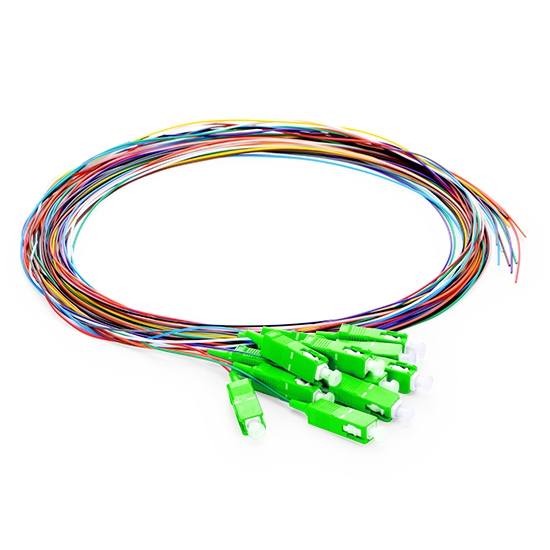

1m (3ft) SC APC 12-core OS2 single-mode unarmored fiber optic patch cord with color coding, PVC 0.9mm fiber cable

￥120

型号：SC APC|OS2

Length:

1m 2m

Series:

SC APC|OS2 SC UPC|OS2 LC APC |OS2 LC UPC |OS2

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

Color-coded for easy fusion splicing of 0.9mm optical fiber

Easily peelable 900µm tight coating

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

OS2 12 - fiber SC/APC Unterminated Color - Coded Fiber Pigtail without Outer Sheath, LSZH, 0.9mm, 1m (3ft)

The 12 - fiber pigtail is suitable for fusion - splicing fiber connections required in structured cabling systems, including data centers, broadband cable TV, passive optical networks (PON), wavelength division multiplexing (WDM or DWDM), fiber - to - the - home (FTTH), as well as voice services in ATM and SONET metropolitan area networks and access networks.

The OS2 bend - insensitive fiber pigtail has lower attenuation than traditional fiber pigtails when bent or twisted, thus making its installation and maintenance more efficient.

Specifications and Parameters

Connector A	SC	Connector B	Unterminated
Fiber Type	9/125 μm	Number of Fibers	12
Fiber Grade	G.657.A1	Fiber Core Radius	10mm
Polish Type	APC	Cable Outer Diameter (OD)	0.9 mm
Wavelength	1310 nm/1550 nm	Fiber Pigtail Color	12 Colors
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥60 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

线缆详情页04+05

线缆详情页06

线缆详情页07+08
