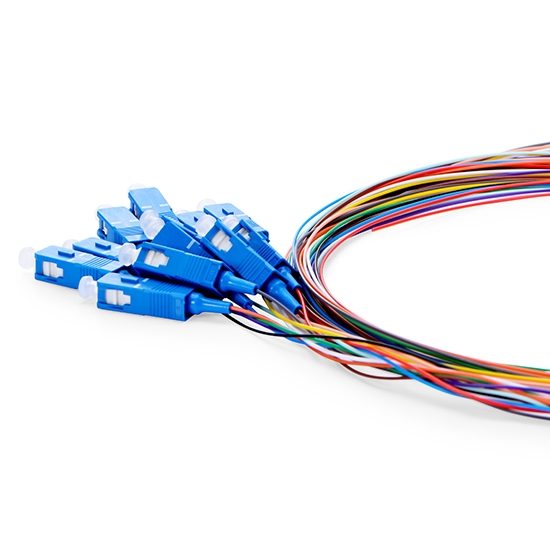

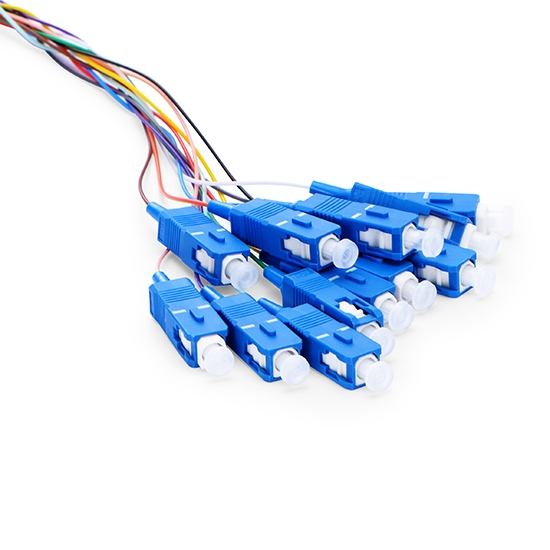

1m (3ft) SC UPC 12-core OS2 single-mode unjacketed color-coded PVC 0.9mm fiber optic patch cord

￥110

型号：SC UPC|OS2

Length:

1m 2m

Series:

SC UPC|OS2 SC APC|OS2 LC UPC |OS2 LC APC |OS2

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

Color-coded for easy fusion splicing of s0.9mm optical fibers

Easily peelable 900µm tight coating

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

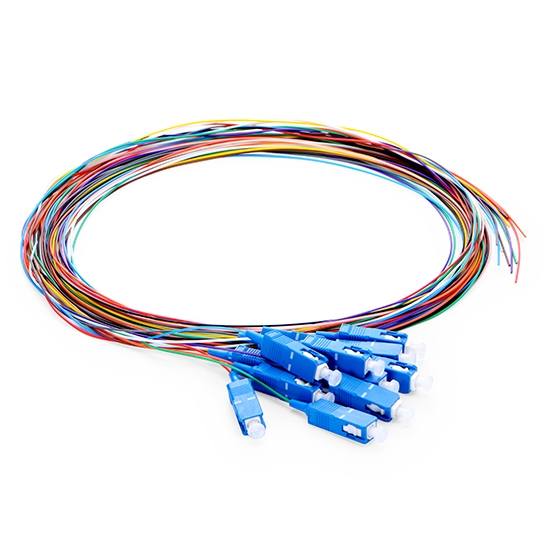

12-core SC/UPC single-mode color fiber pigtail-without outer sheath

Optical fiber pigtails provide a method for rapidly manufacturing field communication equipment. They are designed, manufactured and tested according to the agreement and performance stipulated by industrial standards, which can meet your most stringent mechanical and performance requirements.

Specification Parameters

Connector A	SC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Count	12
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Wavelength	1310 nm/1550 nm	Fiber Pigtail Color	12 Colors
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥50 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
