1m (3ft) LC APC 12-core OS2 single-mode unarmored fiber optic patch cord with color-coded PVC 0.9mm fiber
￥120

型号：LC APC |OS2

Length:
1m 2m
Series:
LC APC |OS2 LC UPC |OS2 SC APC|OS2 SC UPC|OS2
加入购物车

产品特征

G.657.A1 bend-resistant optical fiber with a minimum bending radius of 10mm

Color coding facilitates splicing with 0.9mm optical fibers

Easily peelable 900 μm tight coating

Industrial-grade PVC cable outer sheath

Supports fusion splicing and mechanical splicing

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

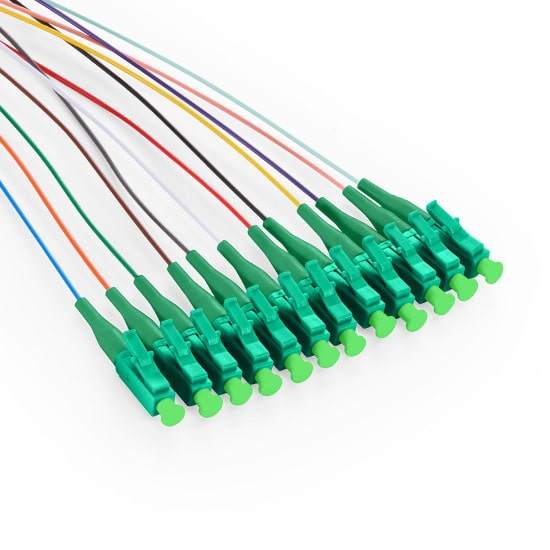

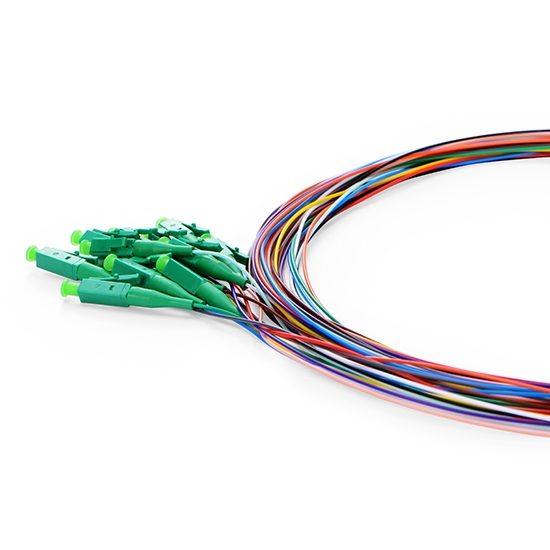

OS2 12-core LC/APC unterminated color fiber pigtail without outer jacket, LSZH, 0.9mm, 1m (3ft)

The 12-core fiber pigtail is suitable for fiber connections required in fusion-spliced structured cabling systems, including data centers, broadband cable TV, passive optical networks (PON), wavelength division multiplexing (WDM or DWDM), fiber-to-the-home (FTTH), as well as voice services in ATM and SONET metropolitan area networks and access networks.

The OS2 bend-insensitive fiber pigtail has lower attenuation than traditional fiber pigtails when bent or twisted, thus making its installation and maintenance more efficient.

Specification Parameters

Connector A

LC

Connector B

Unterminated

Fiber Type

9/125 μm

Fiber Count

12

Fiber Grade

G.657.A1

Fiber Core Diameter

10 mm

Polish Type

APC

Cable Outer Diameter (OD)

0.9 mm

Wavelength

1310 nm/1550 nm

Fiber Pigtail Color

12 Colors

Insertion Loss

≤0.3 dB

Interchangeability

≤0.2 dB

Return Loss

≥60 dB

Vibration Test

≤0.2 dB

Operating Temperature

-40~75°C

Storage Temperature

-45~85°C
