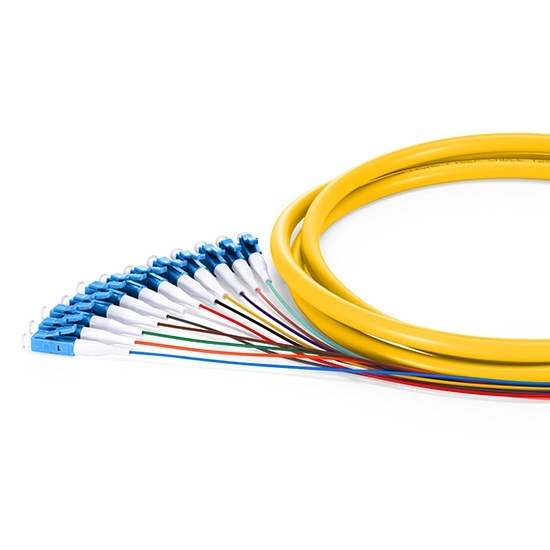

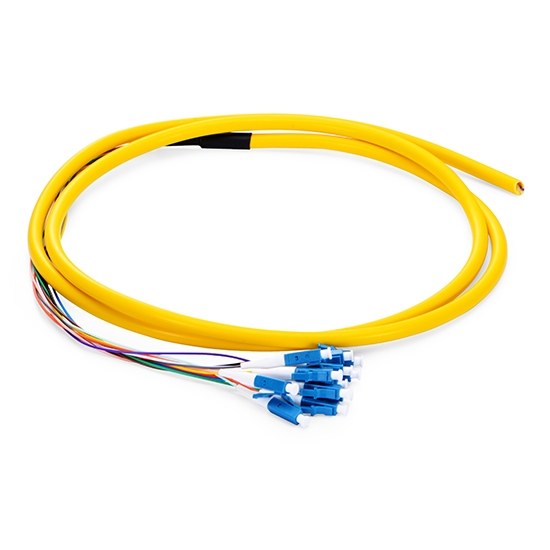

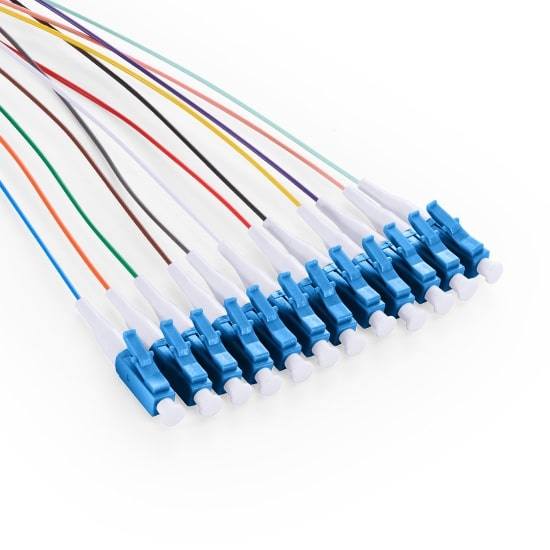

1m 12-core LC/UPC single-mode bundle round cable fiber pigtail - 0.9mm PVC jacket

￥110

型号：LC UPC|OS2

Length:

1m 2m

Series:

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

Color-coded for easy fusion splicing of s0.9mm optical fiber

Easily peelable 900µm tight coating

Supports fusion splicing and mechanical splicing

Industry standard PVC cable outer sheath

商品详情
资料下载(PDF)

12 - Core LC/UPC Single - Mode Ribbon Fiber Pigtail, PVC Jacket

Fiber pigtails provide a method for quickly manufacturing on - site communication equipment. They are designed, manufactured and tested in accordance with the protocols and performance specified by industrial standards, and can meet your most stringent mechanical and performance requirements.

Specification Parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Count	12
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Yellow
Wavelength	1310 nm/1550 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥50 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
