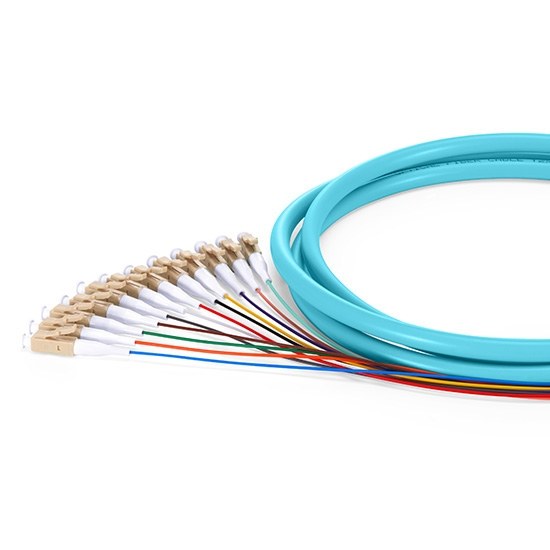

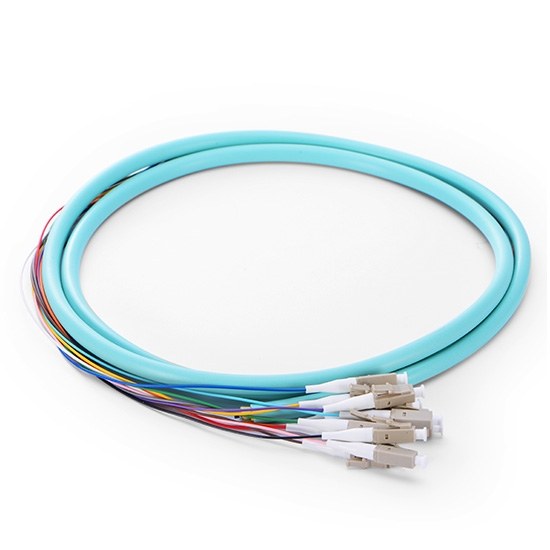

1m 12-core LC/UPC multimode OM3 ribbon fiber optic pigtail - 0.9mm PVC

￥125

型号：LC UPC|OM3

Length:

1m 2m

Series:

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

Color-coded for easy fusion splicing of s0.9mm optical fiber

Easily peelable 900µm tight coating

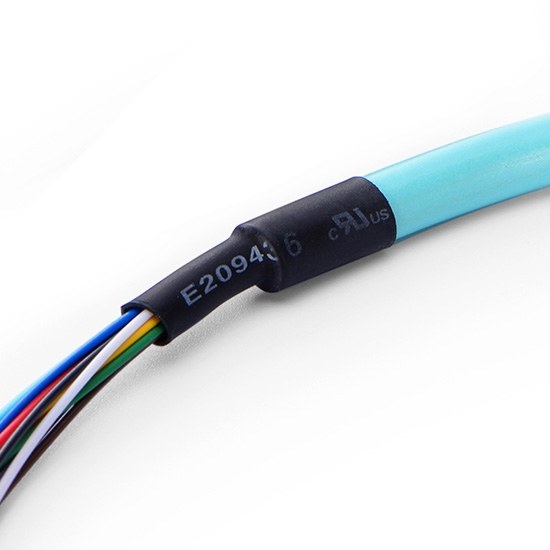

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

12 - Core LC/UPC Multimode OM3 Ribbon Fiber Pigtail, PVC Jacket

Fiber pigtails provide a way to quickly manufacture on - site communication equipment. They are designed, manufactured and tested in accordance with the protocols and performance specified by industrial standards, and can meet your most stringent mechanical and performance requirements.

Specification Parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	50/125 μm	Fiber Count	12
Fiber Grade	Bend - Insensitive	Fiber Core Diameter	7.5 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Aqua Blue
Wavelength	850 nm/1300 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥30 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
