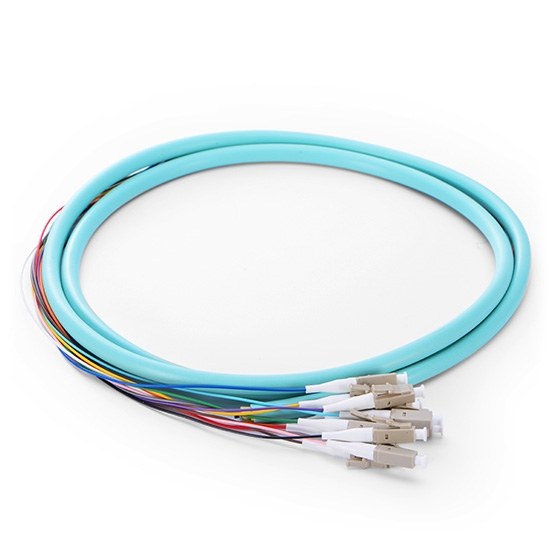

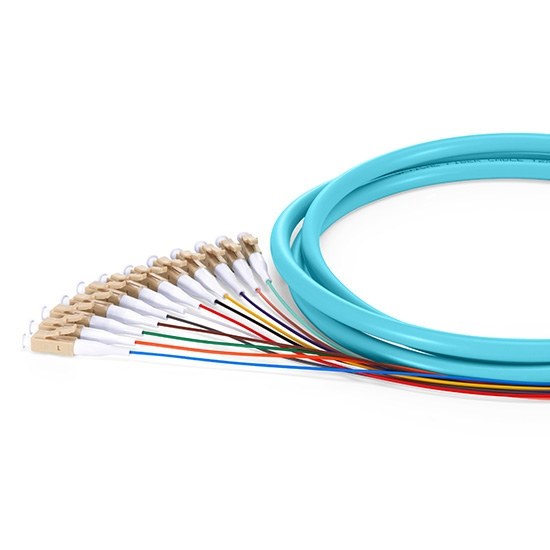

1m 12-core LC/UPC multimode OM4 ribbon fiber optic pigtail - 0.9mm PVC

￥170

型号：LC UPC|OM4

Length:

1m 2m

Series:

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

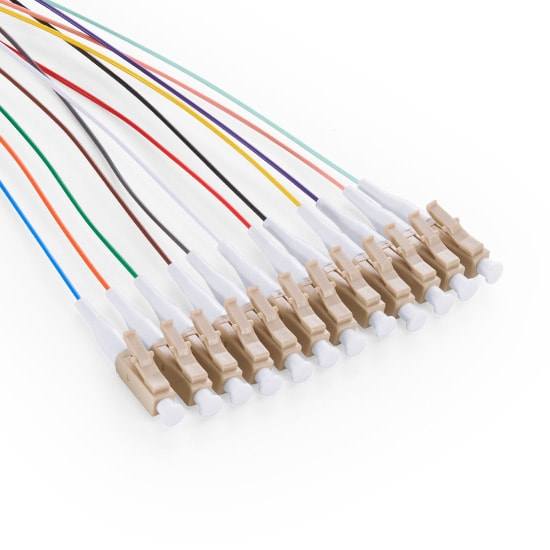

Color-coded for easy fusion splicing of 0.9mm optical fiber

Easily peelable 900µm tight coating

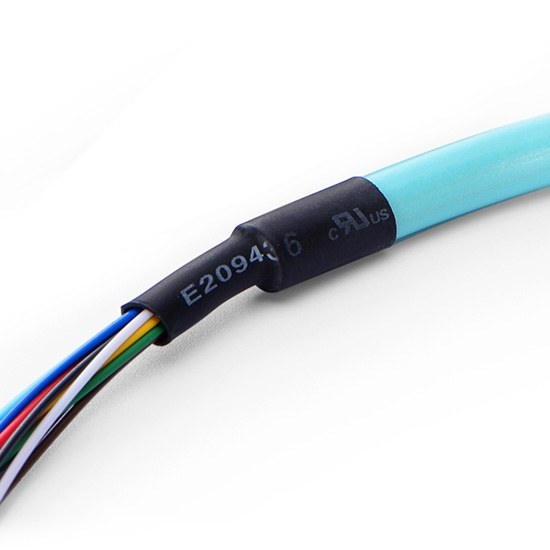

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

OM4 12 - Core LC/UPC Unterminated Fiber Pigtail, Ribbon Type, LSZH, 0.9mm, 1.5m (5ft)

The 12 - core fiber pigtail is suitable for fiber connections required in fusion - spliced structured cabling systems, including data centers, broadband cable TV, passive optical networks (PON), wavelength division multiplexing (WDM or DWDM), fiber - to - the - home (FTTH), as well as voice services in ATM and SONET metropolitan area networks and access networks.

The OM4 bend - insensitive fiber pigtail has lower attenuation than traditional fiber pigtails when bent or twisted, thus making its installation and maintenance more efficient.

Specifications and Parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	50/125 μm	Fiber Count	12
Fiber Grade	Bend - Insensitive	Fiber Core Diameter	7.5 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Aqua Blue
Wavelength	850nm/1300 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥30 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C

线缆详情页04+05

线缆详情页06

线缆详情页07+08
