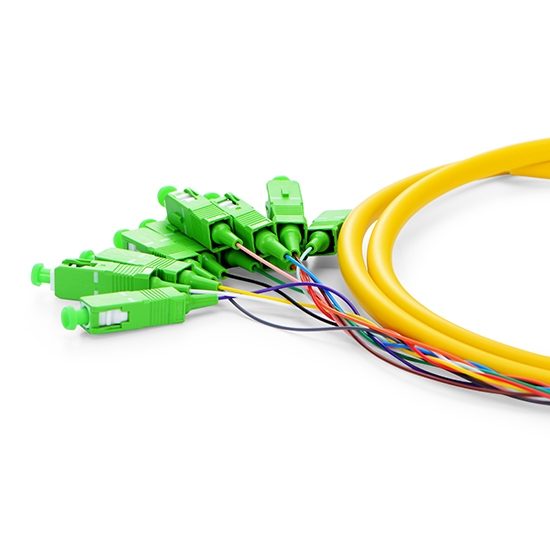

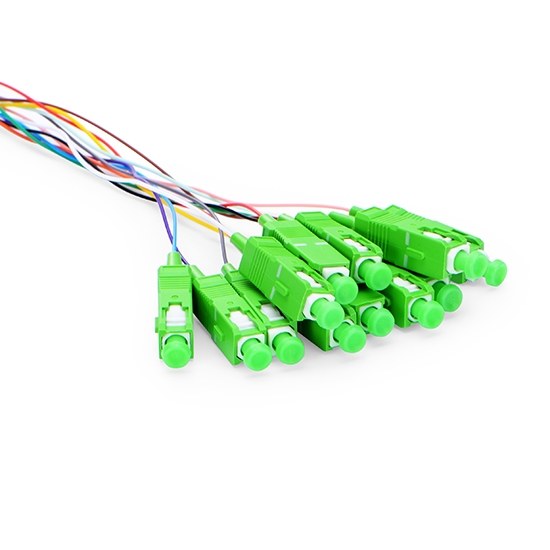

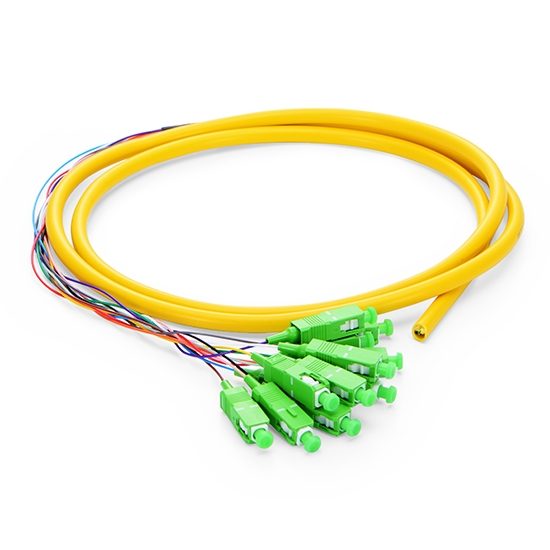

1m 12-core SC/APC Single-Mode OS2 Ribbon Fiber Patch Cord - 0.9mm PVC
￥115

型号：SC APC|OS2

Length:
1m 2m
Series:
SC APC|OS2 LC UPC |OS2 LC APC |OS2 SC UPC|OS2 LC UPC |OM3 LC UPC|OM4
加入购物车

产品特征

Bend-resistant optical fiber with a minimum bend radius of 7.5 mm

Color-coded for easy fusion splicing of s0.9mm optical fiber

Easily peelable 900µm tight coating

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

  • 商品详情
  • 资料下载(PDF)

线缆详情页01

线缆详情页02

线缆详情页03

12 - Core SC/APC Single - Mode Ribbon Fiber Pigtail, PVC Jacket

Fiber pigtails provide a method for quickly manufacturing on - site communication equipment. They are designed, manufactured and tested in accordance with the protocols and performance specified by industrial standards, and can meet your most stringent mechanical and performance requirements.

Specification Parameters

Connector A

SC

Connector B

Unterminated

Fiber Type

9/125 μm

Fiber Count

12

Fiber Grade

G.657.A1

Fiber Core Diameter

10 mm

Polish Type

APC

Cable Outer Diameter (OD)

0.9 mm

Cable Outer Sheath

PVC

Jacket Color

Yellow

Wavelength

1310 nm/1550 nm

Durability

1000 Cycles

Insertion Loss

≤0.3 dB

Interchangeability

≤0.2 dB

Return Loss

≥60 dB

Vibration Test

≤0.2 dB

Operating Temperature

-40~75°C

Storage Temperature

-45~85°C

线缆详情页04+05

线缆详情页06

线缆详情页07+08
