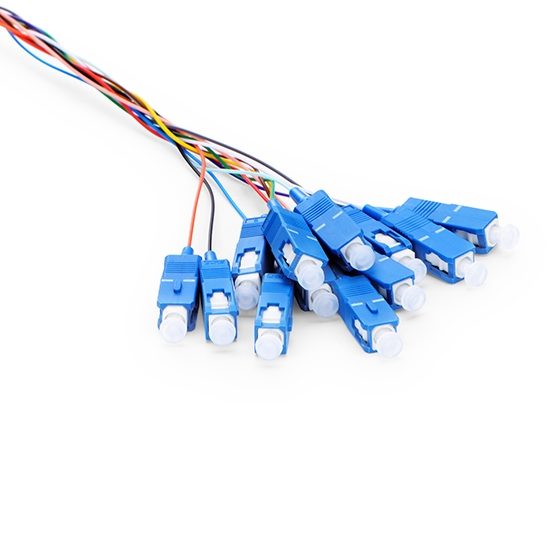

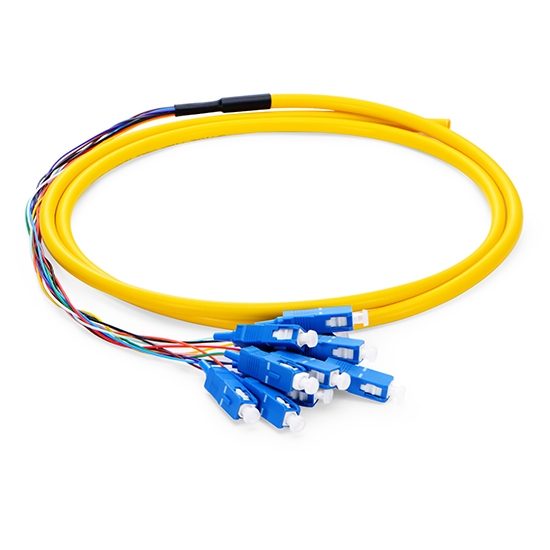

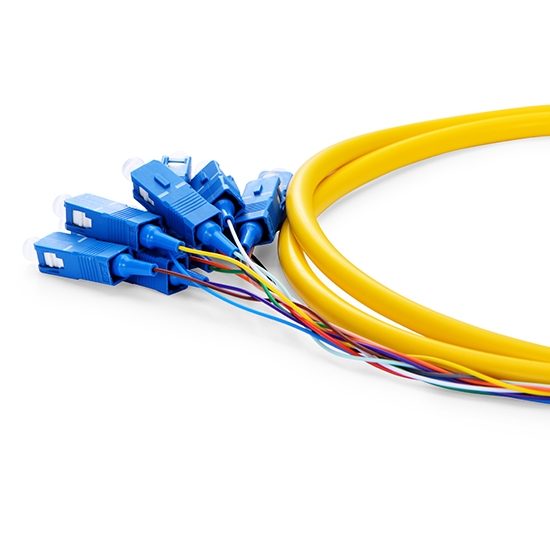

1m 12-core SC/UPC Single-Mode OS2 Ribbon Fiber Patch Cord - 0.9mm PVC

￥110

型号：SC UPC|OS2

Length:

1m 2m

Series:

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

Color-coded for easy fusion splicing of s0.9mm optical fibers

Easily peelable 900µm tight coating

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

OS2 12-core SC/UPC unterminated fiber pigtail, bundle, LSZH, 0.9mm, 1.5m(5ft)

12-core fiber pigtails are suitable for fiber optic connections required in fusion-spliced structured cabling systems, including data centers, broadband cable television, passive optical networks (PON), wavelength division multiplexing (WDM or DWDM), fiber-to-the-home (FTTH), as well as voice services in ATM and SONET metropolitan area networks and access networks.

OS2 bend-insensitive fiber pigtails have lower attenuation than traditional fiber pigtails when bent or twisted, making their installation and maintenance more efficient.

Specifications and parameters

Connector A	SC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Count	12
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	UPC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Yellow
Wavelength	1310nm/1550 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥50 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
