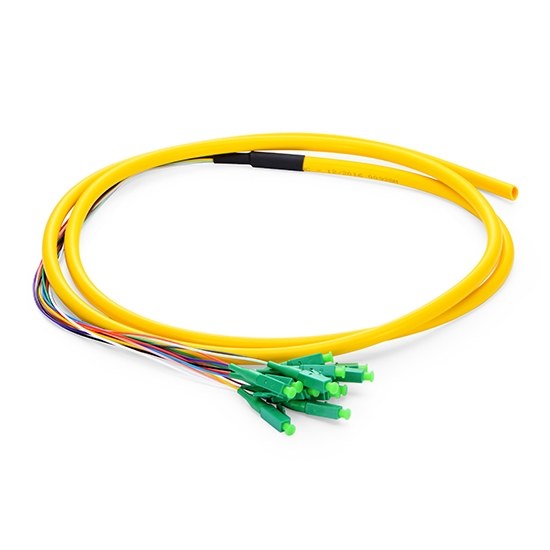

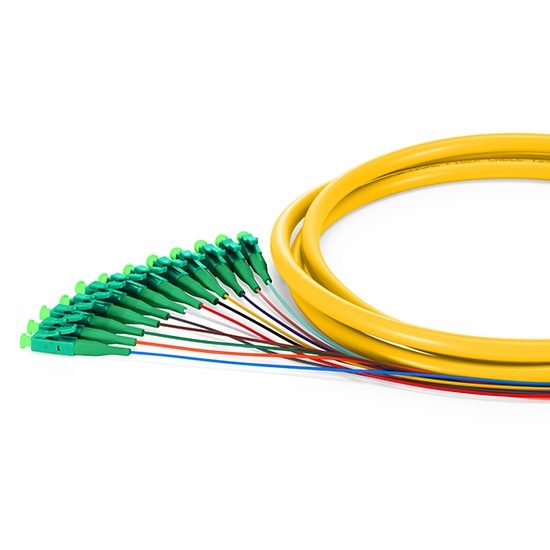

1m 12-core LC/APC single-mode OS2 ribbon fiber optic pigtail - 0.9mm PVC

￥115

型号：LC APC |OS2

Length:

1m 2m

Series:

加入购物车

产品特征

Bend-resistant optical fiber with a minimum bending radius of 7.5mm

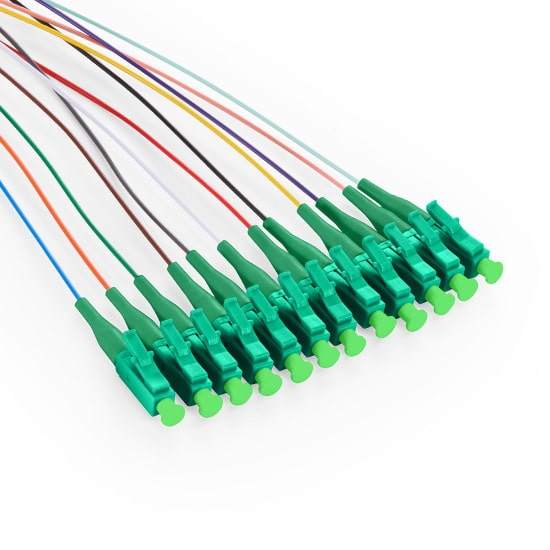

Color-coded for easy fusion splicing of 0.9mm optical fiber

Easily peelable 900µm tight coating

Industry standard PVC cable outer sheath

Supports fusion splicing and mechanical splicing

商品详情
资料下载(PDF)

OS2 12 - Core LC/APC Unterminated Fiber Pigtail, Ribbon Type, LSZH, 0.9mm, 1.5m (5ft)

The 12 - core fiber pigtail is suitable for fiber connections required in fusion - spliced structured cabling systems, including data centers, broadband cable TV, passive optical networks (PON), wavelength division multiplexing (WDM or DWDM), fiber - to - the - home (FTTH), as well as voice services in ATM and SONET metropolitan area networks and access networks.

The OS2 bend - insensitive fiber pigtail has lower attenuation than traditional fiber pigtails when bent or twisted, thus making its installation and maintenance more efficient.

Specification Parameters

Connector A	LC	Connector B	Unterminated
Fiber Type	9/125 μm	Fiber Count	12
Fiber Grade	G.657.A1	Fiber Core Diameter	10 mm
Polish Type	APC	Cable Outer Diameter (OD)	0.9 mm
Cable Outer Sheath	PVC	Jacket Color	Yellow
Wavelength	1310 nm/1550 nm	Durability	1000 Cycles
Insertion Loss	≤0.3 dB	Interchangeability	≤0.2 dB
Return Loss	≥60 dB	Vibration Test	≤0.2 dB
Operating Temperature	-40~75°C	Storage Temperature	-45~85°C
