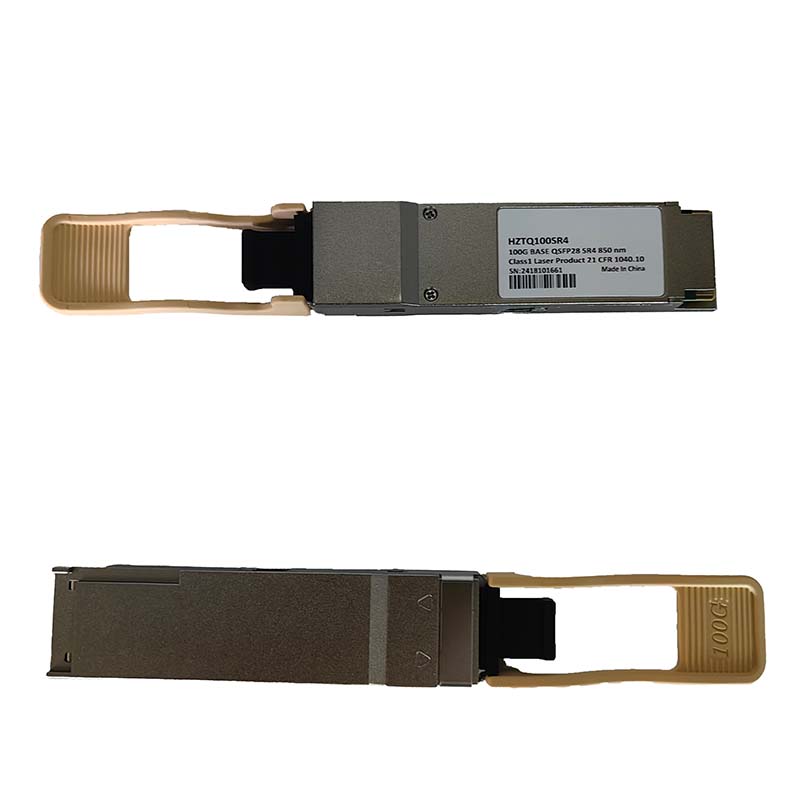

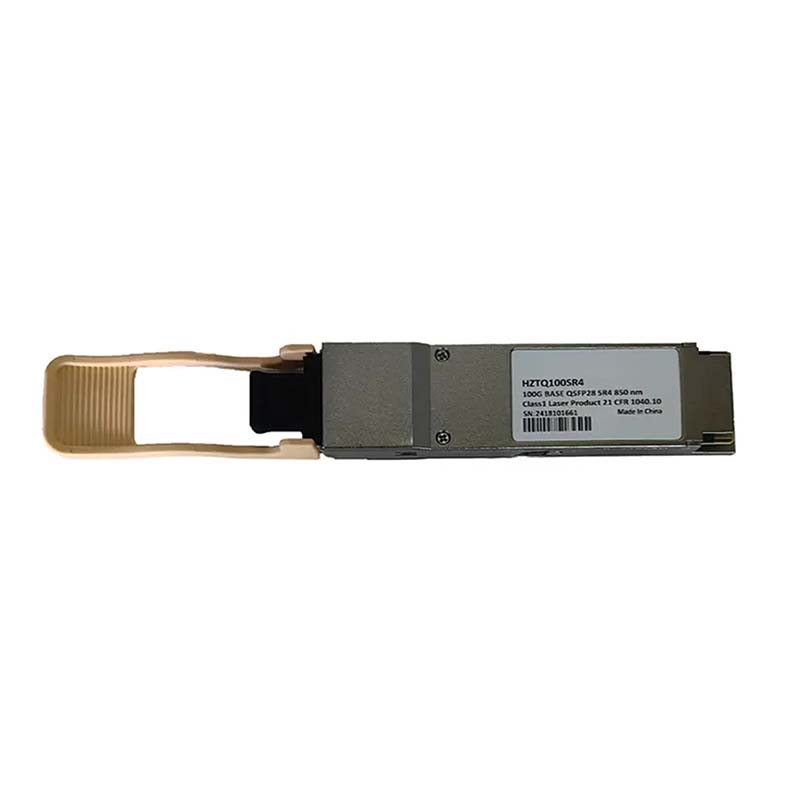

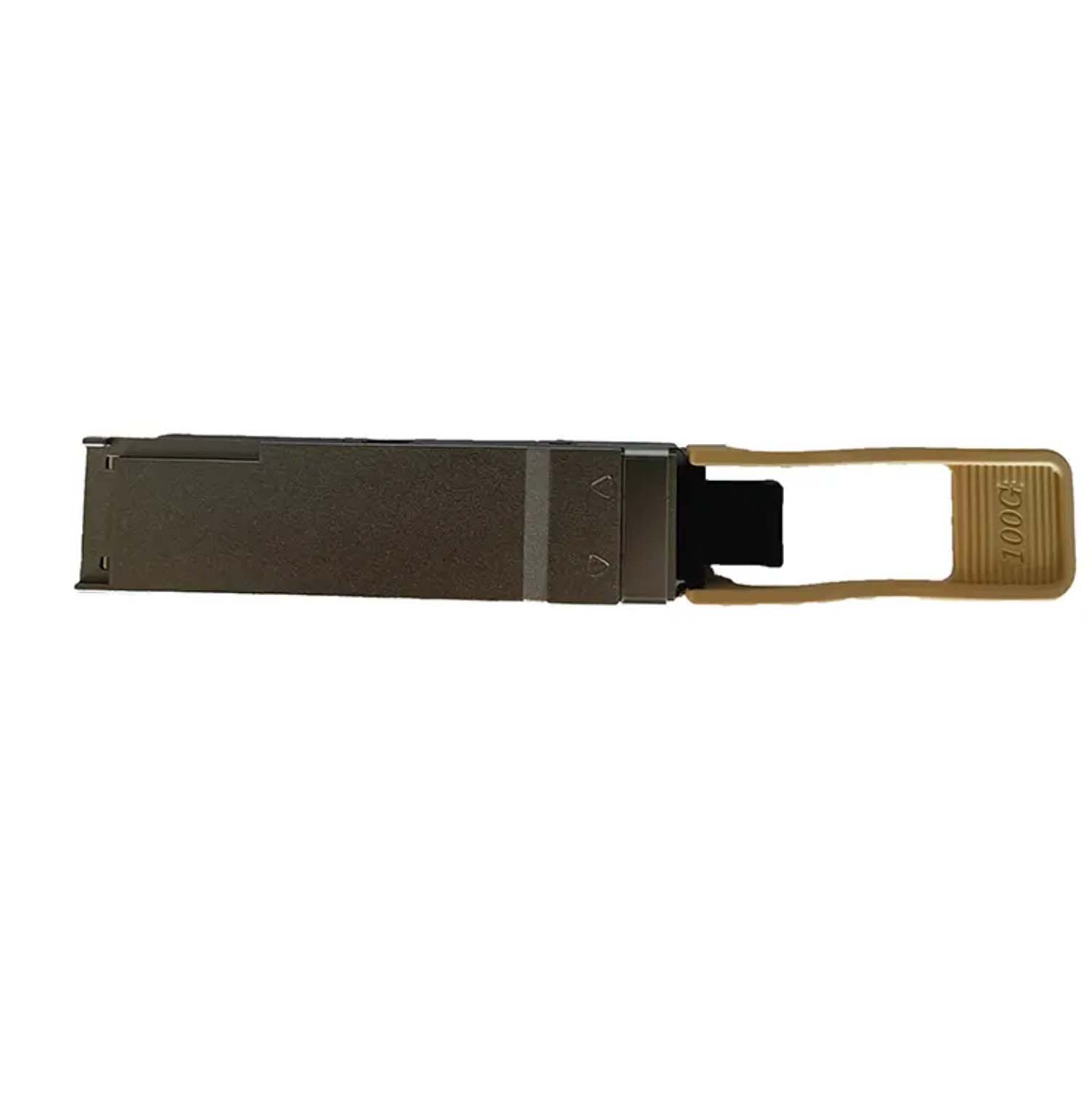

HZTQ100SR4
￥170

型号：HZTQ100SR4

加入购物车

产品特征

Hot-swappable QSFP28 dimensions

Supports an aggregate bit rate of up to 103.1 Gb/s

Single MPO12 interface

4x25G/s 850nm VCSEL transmitter, PIN array detector

Operating box temperature: 0 to 70℃

The maximum link length on OM4 multimode fiber (MMF) is 100 meters

All-metal casing, featuring excellent EMI performance

IIC Management Interface

Single-channel 3.3V power supply

Complies with RoHS standards (lead-free)

  • 商品详情
  • 资料下载(PDF)

光模块01

光模块02

光模块03

Applications

• 100G Ethernet

• Other optical links

standard

•IEEE 8023bm

•SFF-8636、SFF-8665、SFF-8679

Order Information

Part number

Product Description

HZTQ100SR4

QSFP28, 100Gbps, SR4, MM, 100m, 0ºC ~ +70ºC, With DDM

 光模块04

光模块05

光模块06
