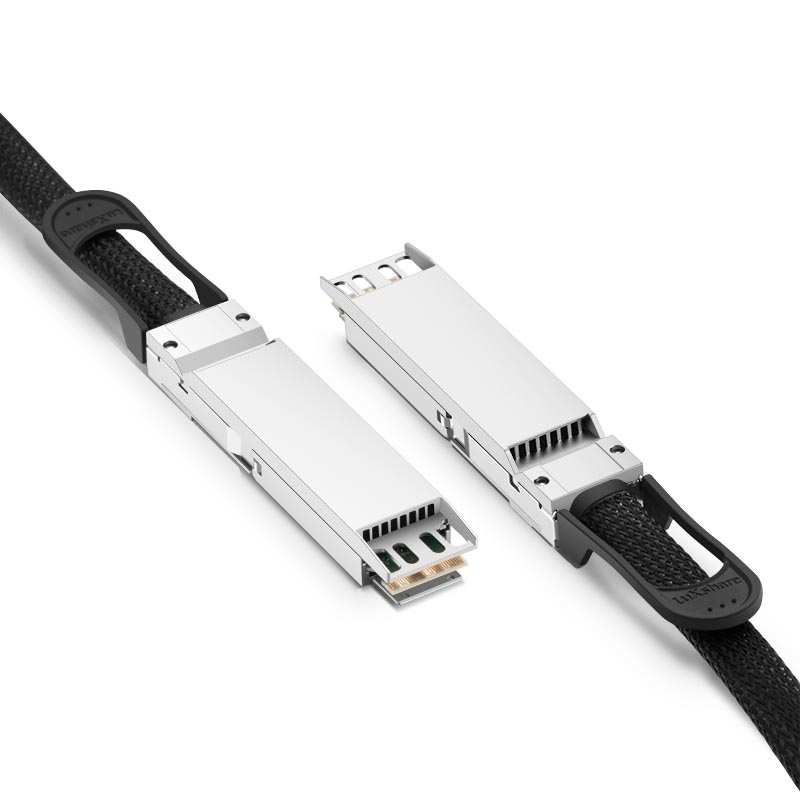

0.5m (2ft) NVIDIA/Mellanox Compatible 1.6T OSFP XDR InfiniBand Closed-Top Passive High-Speed Cable
￥3600

型号：HZDO1600D005

length:
0.5m (2ft) 1m（3ft）
compatible:
NVIDIA (InfiniBand)
加入购物车

产品特征

Complies with InfiniBand XDR end-to-end system requirements

Max power consumption: 0.1W

Up to 1600Gbps total throughput, compliant with IEEE 802.3 standards

8x 200G-PAM4 to 8x 200G-PAM4

Assembled with advanced dual-core 16-pair bulk cable

Excellent SI reliability and physical performance, with enhanced flexibility and bendability

Delivers superior mechanical durability and shielding to reduce crosstalk

Compliant with hot-pluggable OSFP MSA standards

Ideal for high-performance computing (HPC) and machine learning (ML) architectures

  • 商品详情
  • 资料下载(PDF)

电缆详情页01

电缆详情页02

电缆详情页03

电缆详情页04

电缆详情页05

NVIDIA/Mellanox Compatible 1.6T OSFP XDR InfiniBand Passive High-Speed Cable

(0.5m, Passive, OSFP to OSFP)


ParameterValue
PackageOSFP (Closed-Top) to OSFP (Closed-Top)
Max Data Rate1600Gbps
Media TypeCopper
Cable TypePassive Twisted Pair
Cable Length0.5m (2ft)
AWG27AWG
Minimum Bend Radius60mm
Power Consumption≤0.1W
Outer Jacket MaterialPET
Commercial Temperature Range0~70°C (32~158°F)
ProtocolsIEEE 802.3, OSFP MSA
Modulation FormatPAM4

电缆详情页06

电缆详情页07

电缆详情页08

电缆详情页09
