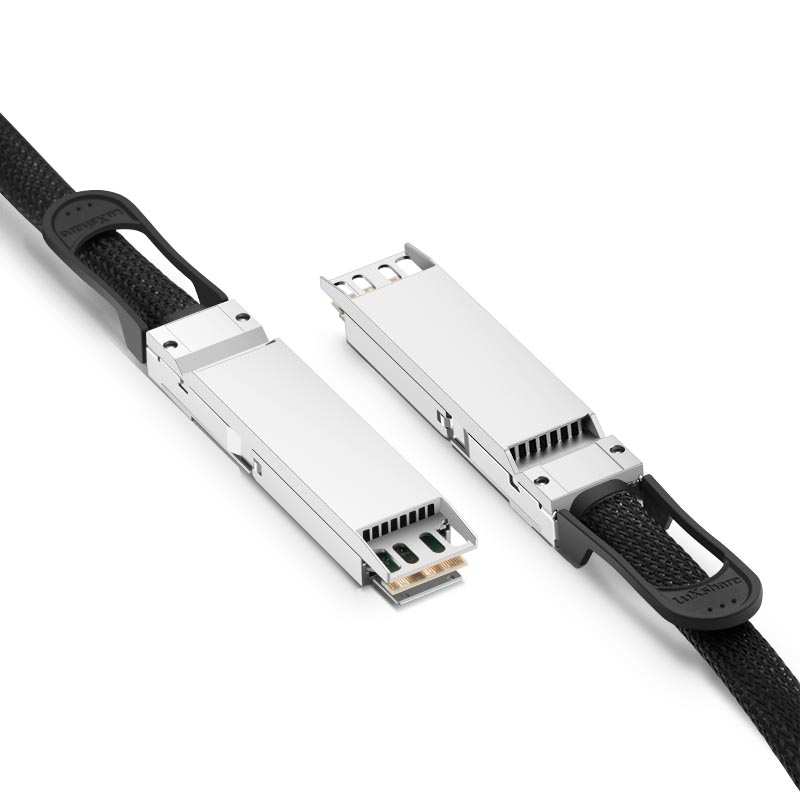

1m (3ft) NVIDIA/Mellanox Compatible 1.6T OSFP XDR InfiniBand Closed Top Passive High-Speed Cable
￥3900

型号：HZDO1600D01

length:
1m（3ft） 0.5m (2ft)
compatible:
NVIDIA (InfiniBand)
加入购物车

产品特征

Meets InfiniBand XDR end-to-end system requirements

Maximum power consumption: 0.1W

Up to 1600Gbps total throughput, compliant with IEEE 802.3 specifications

8x 200G-PAM4 to 8x 200G-PAM4

Assembled with advanced dual-core 16-pair bulk cable

Excellent SI reliability and physical performance, with enhanced flexibility and bending capability

Delivers superior mechanical durability and shielding, reducing crosstalk

Compliant with hot-pluggable OSFP MSA standard

Suitable for high-performance computing (HPC) and machine learning (ML) architectures

  • 商品详情
  • 资料下载(PDF)

电缆详情页01

电缆详情页02

电缆详情页03

电缆详情页04

电缆详情页05

NVIDIA/Mellanox Compatible 1.6T OSFP XDR InfiniBand Passive High-Speed Cable

(1m, Passive, OSFP to OSFP)


Specifications:

ParameterValue
PackageOSFP (Top-Closed) to OSFP (Top-Closed)
Max Data Rate1600Gbps
Fiber TypeCopper Cable
Cable TypePassive Twisted Pair
Cable Length1m (3ft)
Wire Gauge27AWG
Minimum Bend Radius60mm
Power Consumption≤0.1W
Outer Jacket MaterialPET
Commercial Temperature Range0~70°C (32~158°F)
ComplianceIEEE 802.3, OSFP MSA
Modulation FormatPAM4

电缆详情页06

电缆详情页07

电缆详情页08

电缆详情页09
