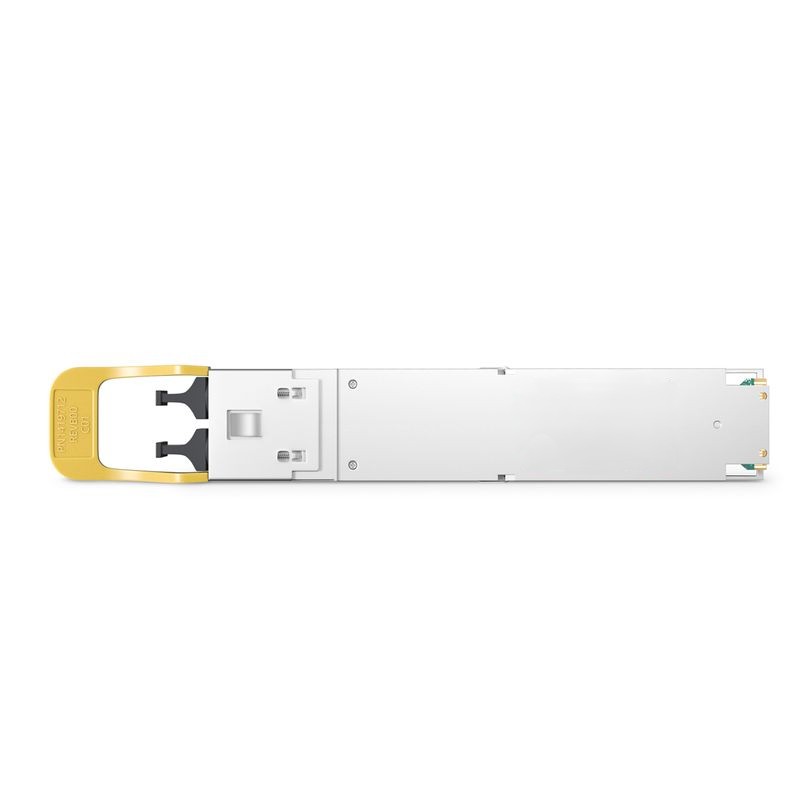

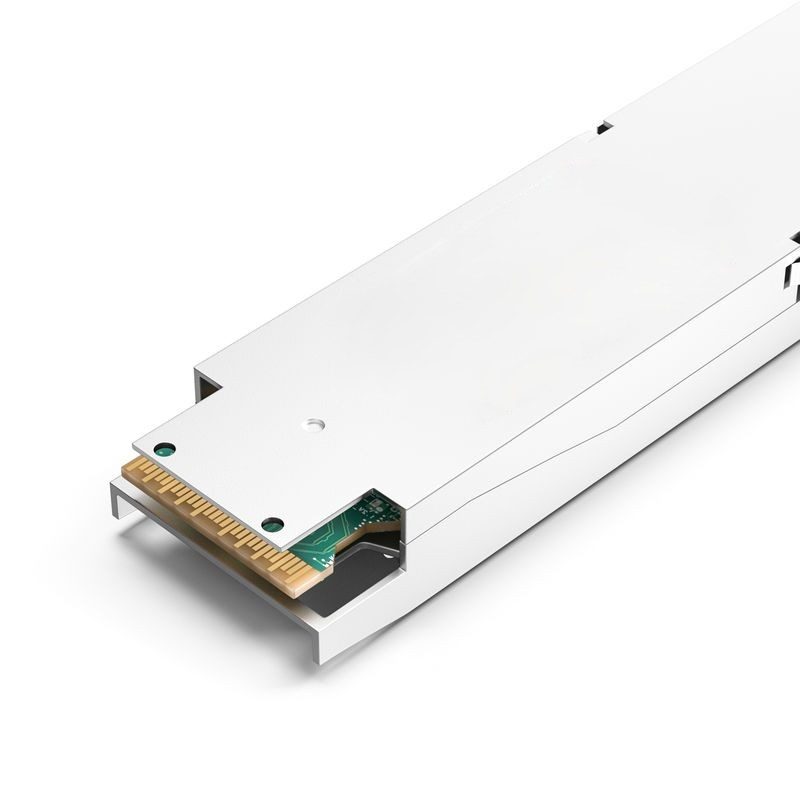

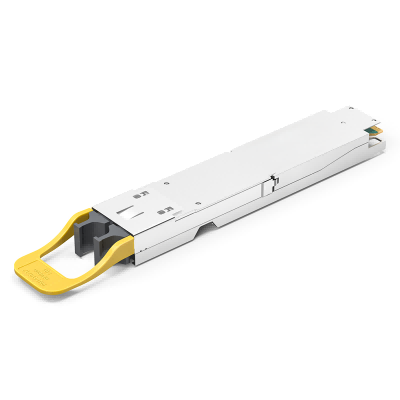

NVIDIA/Mellanox MMS4X00-NM Compatible 800GBASE 2xDR4/DR8 OSFP NDR InfiniBand Single-mode Optical Transceiver with Top Heatsink, PAM4, 1310nm, 500m, DOM, Dual MPO-12/APC, for Quantum-2 Switches

￥9400

型号：HZTO8002DR4

Optical module model:

MS4X00-NM | 800G DR4 MMS4X00-NS | 800G DR4 MMS4X50-NM | 800G FR4 MMA4Z00-NS | 800G SR4

compatible:

NVIDIA InfiniBand (800G)

加入购物车

产品特征

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption: 16.5W

OSFP with top heatsink, designed for Quantum-2 liquid-cooled switches

Supports 800G-to-800G links between switches or 800G-to-dual 400G ConnectX-7 NIC connections

Converts 8×100G-PAM4 electrical signals into 2 parallel 4×100G-PAM4 optical paths

Hardware-verified for full compatibility with NVIDIA QM9700/9790 devices

Compliant with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety; supports digital diagnostic monitoring (DDM/DOM)

商品详情
资料下载(PDF)

NVIDIA/Mellanox MMS4X00-NM Compatible 800G OSFP DR8 PAM4 NDR InfiniBand Optical

Transceiver (2x DR4, 1310nm, 500m, Dual MPO-12/APC, DOM, with Top Heatsink)

This NVIDIA/Mellanox InfiniBand MMS4X00-NM compatible OSFP transceiver is an InfiniBand 800Gb/s

2x400Gb/s dual-port OSFP, a DR8 parallel 8-channel optical module. It uses 2 fibers and 4‑channel

MPO‑12/APC optical connectors, each supporting a data rate of 400Gb/s. The parallel short‑reach

8‑channel (DR8) design adopts 100G‑PAM4 modulation, with a maximum transmission distance of

500m over 8 single‑mode fibers. It is designed for InfiniBand NDR end‑to‑end systems. It is an ideal solution for supercomputing, enabling seamless integration into compute and storage

infrastructures to ensure efficient high‑performance interconnection. It is intended for Quantum‑2

liquid‑cooled switches.

Specifications:

Parameter	Value
Package	Dual-port OSFP (with top heatsink)
Max Data Rate	850Gbps (8x 106.25Gbps)
Wavelength	1310nm
Max Reach	500m

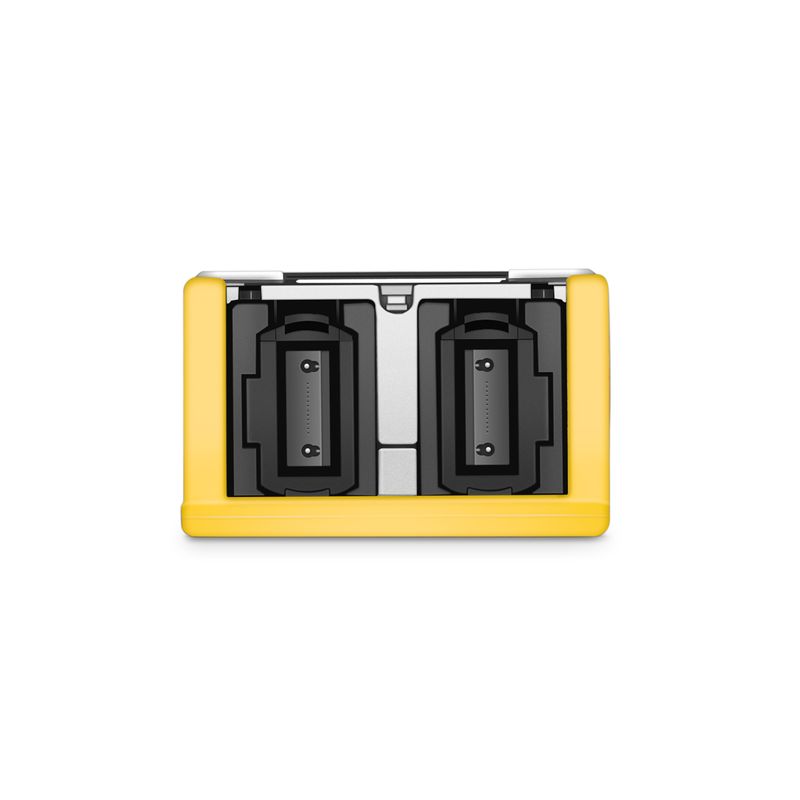

Connector	Dual MTP/MPO-12 APC
Fiber Type	Single-mode
Transmitter Type	EML
Receiver Type	PIN
Transmit Power	-2.9~4.0dBm
Min Receive Power	-5.9dBm
Power Budget	3dB
Receive Overload	5dBm
Power Consumption	16.5W
Extinction Ratio	>3.5dB
Electrical Modulation	8x100G-PAM4
Optical Modulation	Dual 4x100G-PAM4
Packaging Technology	COB (Chip-on-Board)
Modulation Format	PAM4
CDR	DSP integrated on Tx and Rx
Built-in FEC	No
Compliance	IEEE 802.3cu-2021, IEEE P802.3ck D2.2
Warranty	5 Years
