NVIDIA/Mellanox MMS4X50-NM Compatible 800GBASE 2xFR4 OSFP NDR InfiniBand Single-mode Optical Transceiver with Top Heatsink, PAM4, 1310nm, 2km, DOM, 2×Duplex LC/UPC, for Quantum-2 Switches_800G OSFP InfiniBand_IB Optical Module_InfiniBand Network_Product Center

型号：HZTO8002FR4

Optical module model:

MMS4X50-NM | 800G FR4 MMA4Z00-NS | 800G SR4 MS4X00-NM | 800G DR4 MMS4X00-NS | 800G DR4

compatible:

NVIDIA InfiniBand (800G)

Meets InfiniBand NDR end-to-end system requirements

Built-in Broadcom 7nm DSP chip, maximum power consumption is 16.5W

OSFP with top heatsink for Quantum-2 liquid-cooled switches

Supports 800G to 800G links between switches

Converts 8×100G-PAM4 electrical signals into 2×4×100G-PAM4 optical signals for multiplexing

Verified on real hardware to ensure full compatibility with NVIDIA QM9700/9790 devices

Complies with OSFP MSA, IEEE 802.3ck, RoHS standards and Class 1 laser safety, supports digital diagnostic monitoring (DDM/DOM)

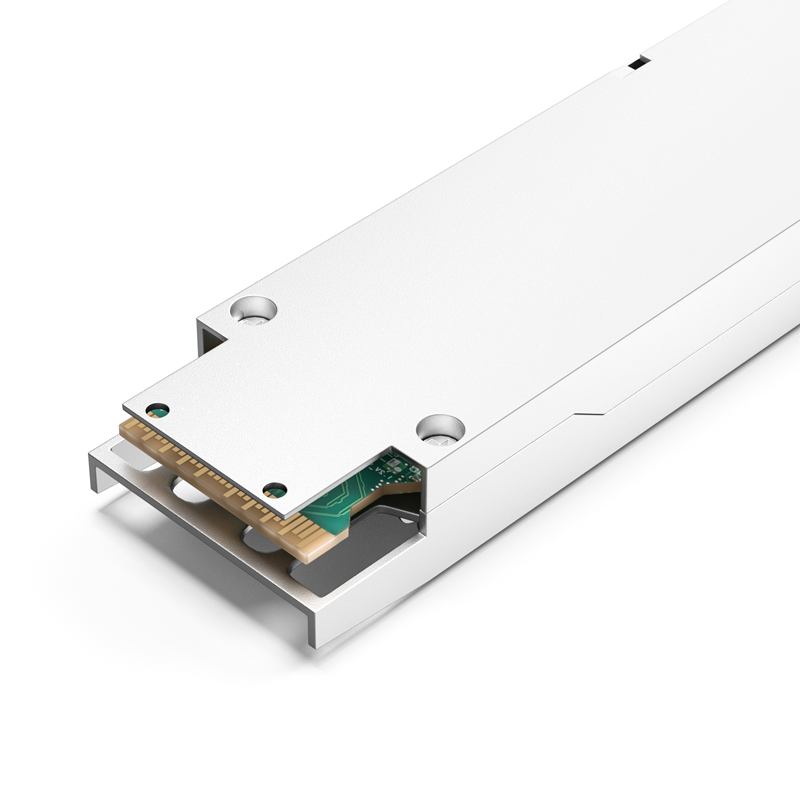

This NVIDIA/Mellanox InfiniBand MMS4X50-NM compatible OSFP transceiver is an InfiniBand

800Gb/s 2x400Gb/s dual-port OSFP, 2xFR4 single-mode multiplexed optical module. It uses 2

fibers and 4-channel duplex LC optical connectors, each supporting 100G-PAM4 transmission.

The parallel short-reach 8-channel (2xFR4) design is based on CWDM4 serial multiplexing at the

1310nm wavelength grid, adopting the 100G-PAM4 electro-optic modulation format. It is designed

for InfiniBand NDR end-to-end systems. It is an ideal solution for supercomputing, enabling seamless integration into compute and storage

infrastructures to ensure efficient high-performance interconnection. It is intended for Quantum-2

liquid-cooled switches.

Specifications

Parameter	Value
Package	Dual-port OSFP (with top heatsink)
Max Data Rate	850Gbps (8x 106.25Gbps)
Wavelength	1271nm, 1291nm, 1311nm, 1331nm
Max Reach	2km
Connector	Duplex LC UPC
Fiber Type	Single-mode
Transmitter Type	EML
Receiver Type	PIN
Transmit Power	-3.2~4.4dBm
Min Receive Power	-7.2dBm
Power Budget	4dB
Receive Overload	4.4dBm
Power Consumption	16.5W
Extinction Ratio	>3.5dB
Electrical Modulation	8x100G-PAM4
Optical Modulation	Dual 4x100G-PAM4
DDM/DOM	Supported
Commercial Temp Range	0~70°C (32~158°F)
Compliance	IEEE 802.3ck, IEEE 802.3cu, OSFP MSA
Warranty	5 Years
