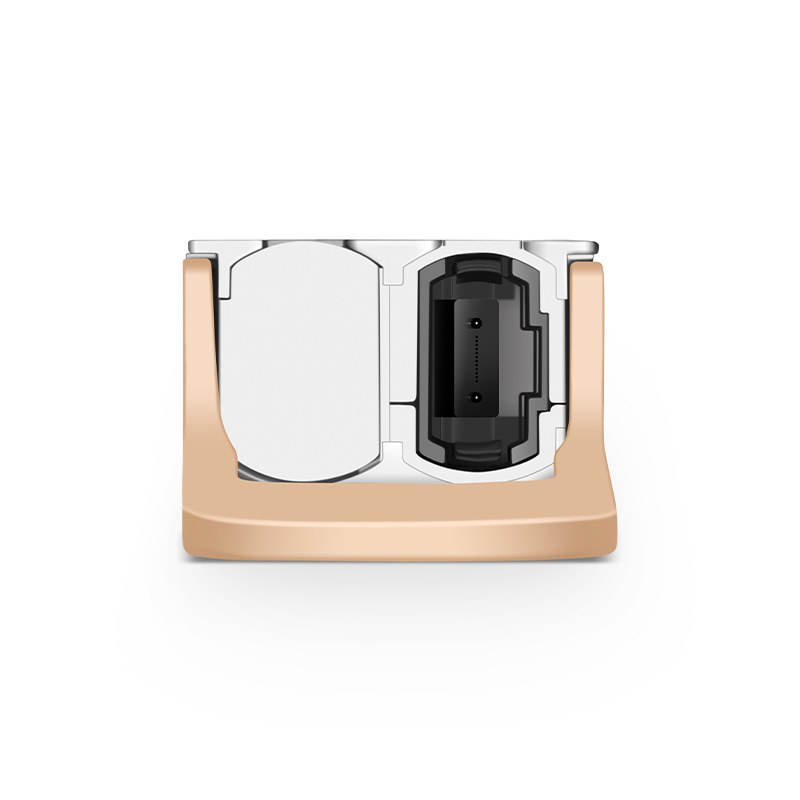

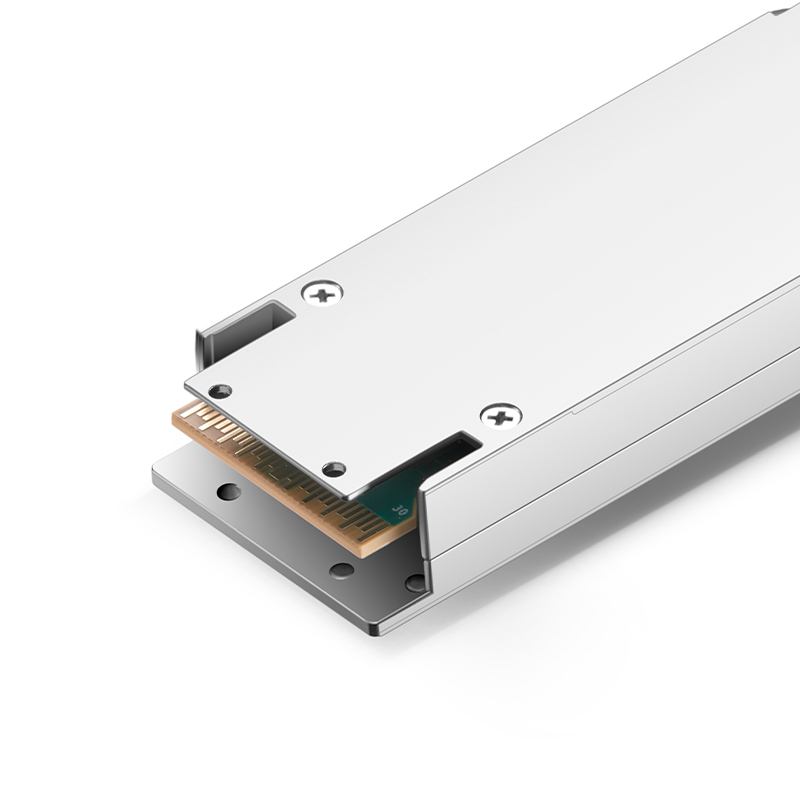

This NVIDIA Mellanox InfiniBand MMA4Z00-NS400 compatible OSFP optical module is an InfiniBand
400Gb/s single-port OSFP112 SR4 multimode parallel optical transceiver, utilizing a single 4-channel
MPO-12/APC optical connector. The short-reach 4-channel (SR4) design adopts 100G-PAM4 modulation, with a maximum transmission distance of 50m over OM4 multimode fiber. It is suitable
for InfiniBand NDR end-to-end systems. It is an ideal solution for supercomputing, enabling seamless integration into compute and storage
infrastructures to ensure efficient high-performance interconnection. It is used for connecting
ConnectX-7 OSFP network adapters and 2×400G InfiniBand switches with dual-port optical modules.
SpecificationsL:
| Parameter | Value/Description |
| Package | QSFP112 |
| Maximum Transmission Rate | 425Gbps (4x106.25Gb/s) |
| Wavelength | 1310nm |
| Maximum Transmission Distance | 500m |
| Interface | MPO-12 (APC) |
| Fiber Type | Single-mode (SMF) |
| Transmitter Type | EML |
| Receiver Type | PIN |
| Transmit Power | -2.9~4.0dBm |
| Minimum Receive Power | -5.9dBm |
| Power Budget | 3dB |
| Receive Overload | 4.0dBm |
| Power Consumption | 10W |
| Extinction Ratio | >3.5dB |
| DDM/DOM (Digital Diagnostic Monitoring) | Supported |
| Commercial Temperature Range | 0~70°C (32~158°F) |
| Electrical Modulation | 4x100G-PAM4 |
| Optical Modulation | 4x100G-PAM4 |
| DSP | TX & RX |
| Built-in FEC | No |
| Core Size | G.652/9µm |
| Packaging Technology | BOX |
| Technical Standards | IEEE Std 802.3ck, QSFP112 MSA, CMIS 5.0 |
| Warranty | 5 Years |
