NVIDIA Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 NDR InfiniBand Multimode Optical Transceiver, PAM4, 850nm, 50m, DOM, MPO-12/APC, for ConnectX-7 HCA_400G OSFP/QSFP112 InfiniBand_IB Optical Module_InfiniBand Network_Product Center

型号：HZTF400SR4

Optical module model:

compatible:

NVIDIA InfiniBand (400G)

Meets InfiniBand NDR end-to-end system requirements

Meets InfiniBand NDR end-to-end system requirements; built-in Broadcom 7nm chip, maximum power consumption 10W

Supports 800G to 2×400G link connections between switch and network adapter

Supports 1/2-rate configuration for 2×200G

Converts 4×106.25G PAM4 electrical signals to 400GAUI-4 electrical signals for parallel transmission

Complies with hot-pluggable QSFP112 standard

Complies with QSFP-112 MSA, CMIS Rev. 5.0, IEEE 802.3ck standards and Class 1 laser safety

Verified on real hardware to ensure full compatibility with NVIDIA ConnectX-7 network adapter

NVIDIA Mellanox MMA1Z00-NS400 Compatible 400GBASE-SR4 QSFP112 NDR InfiniBand

Optical Transceiver, PAM4 (Multimode, 850nm, 50m, MPO-12/APC, DOM)

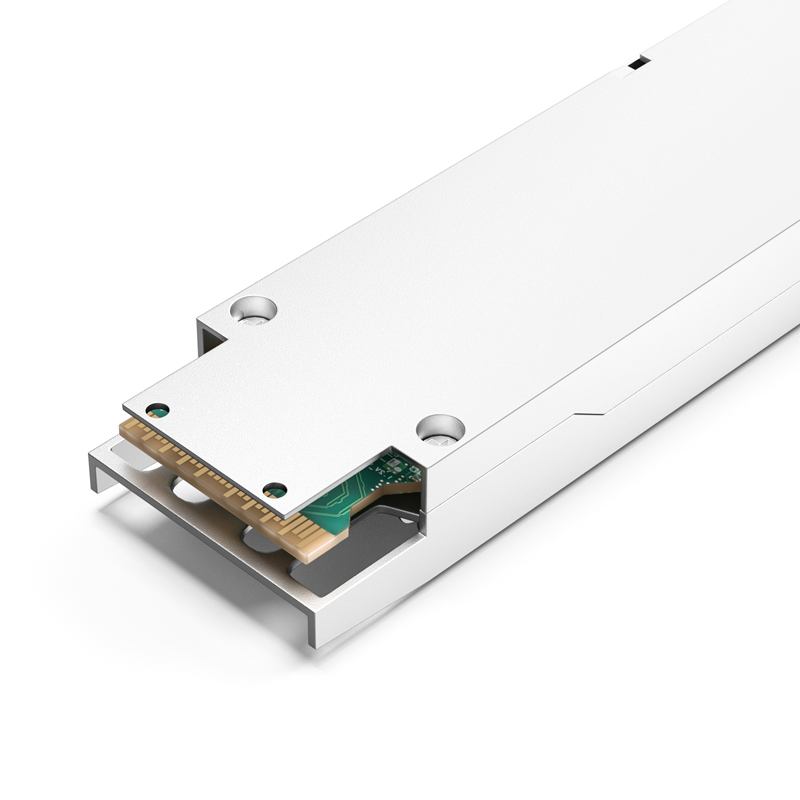

This NVIDIA/Mellanox MMA1Z00-NS400 compatible QSFP112 NDR InfiniBand transceiver is a

400Gb/s single-port QSFP112 SR4 parallel optical module, equipped with a single 4‑channel

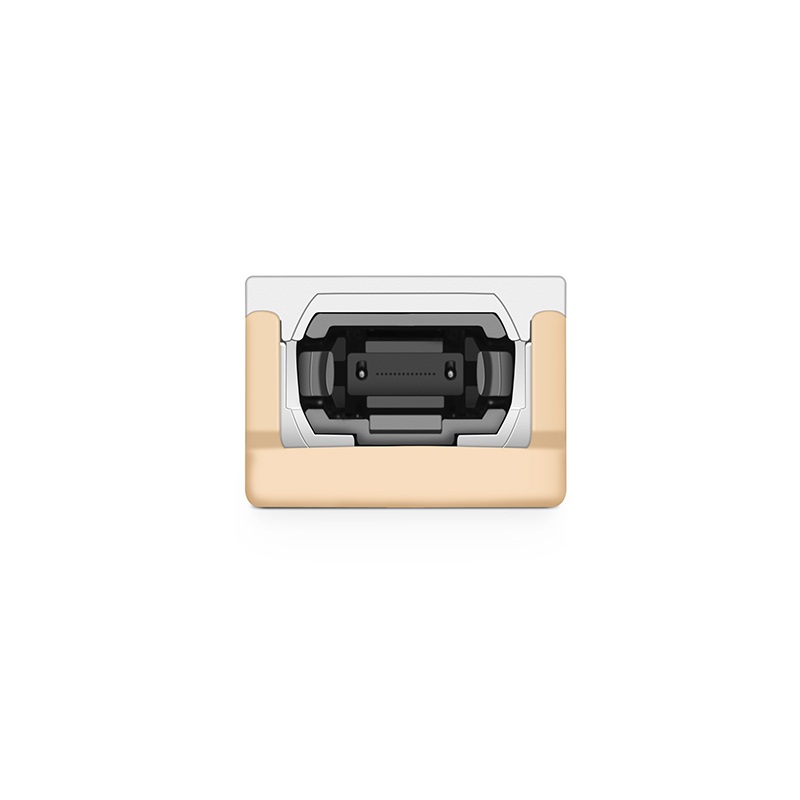

MPO‑12/APC connector. Featuring a short‑reach 4‑channel (SR4) design with 100G‑PAM4

modulation, it supports transmission distances of up to 50m over OM4 multimode fiber. The

module is used to connect ConnectX‑7/QSFP112 network adapters and 2×400G InfiniBand

switches with dual‑port optical modules. When connected to a 1:2 breakout cable, only 2 channels are active on the split end, activating

just 2 out of the 4 channels in the 400G transceiver. This automatically configures a 200G data

rate and reduces power consumption. It is an ideal solution for supercomputing, designed for InfiniBand NDR end‑to‑end systems,

enabling seamless integration into compute and storage infrastructures to ensure efficient,

high‑performance interconnection.

Specifications:

电缆详情页06

电缆详情页07

电缆详情页08

电缆详情页09
