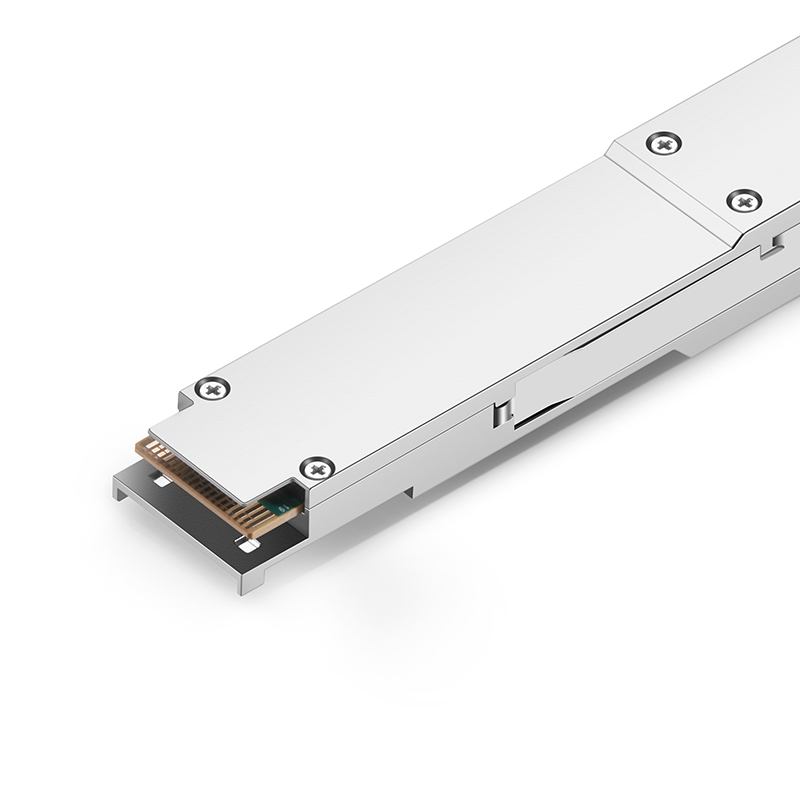

This NVIDIA/Mellanox compatible QSFP112 NDR InfiniBand transceiver is a 400Gb/s single-port

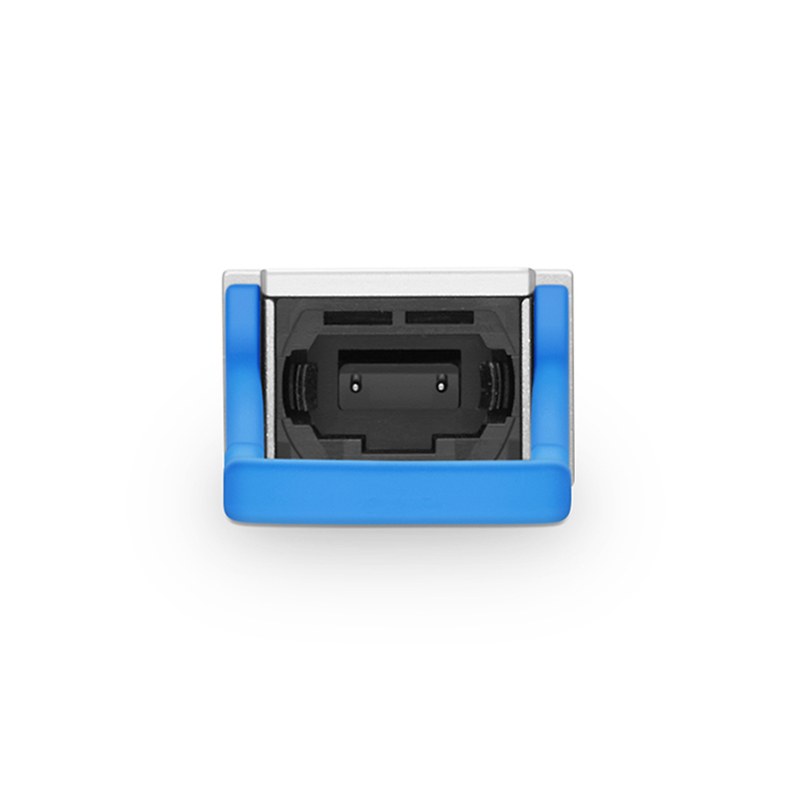

QSFP112 DR4 single-mode parallel optical module equipped with a single 4-channel MPO-12/APC
connector. Featuring a short-reach 4-channel (DR4) design with 100G-PAM4 modulation, it supports
transmission distances of up to 500m over OS2 single-mode fiber. The module is used to connect
ConnectX-7/QSFP112 network adapters and 2×400G InfiniBand switches with dual-port optical
modules. When connected to a 1:2 breakout cable, only 2 channels are active on the split end, activating
just 2 out of the 4 channels in the 400G transceiver. This automatically configures a 200G data
rate and reduces power consumption. It is an ideal solution for supercomputing, designed for InfiniBand NDR end-to-end systems,
enabling seamless integration into compute and storage infrastructures to ensure efficient,
high-performance interconnection.
Specifications:
| Parameter | Value |
| Package | QSFP112 |
| Max Data Rate | 425Gbps (4x106.25Gb/s) |
| Wavelength | 1310nm |
| Max Reach | 500m |
| Connector | MPO-12 (APC) |
| Fiber Type | Single-mode |
| Transmitter Type | EML |
| Receiver Type | PIN |
| Transmit Power | -2.9~4.0dBm |
| Min Receive Power | -5.9dBm |
| Power Budget | 3dB |
| Receive Overload | 4.0dBm |
| Power Consumption | 10W |
| Extinction Ratio | >3.5dB |
| DDM/DOM | Supported |
| Commercial Temp Range | 0~70°C (32~158°F) |
| Electrical Modulation | 4x100G-PAM4 |
| Optical Modulation | 4x100G-PAM4 |
| DSP | Tx & Rx |
| Built-in FEC | No |
| Core Size | G.652/9um |
| Packaging Technology | BOX |
| Technical Standards | IEEE Std 802.3ck, QSFP112 MSA, CMIS 5.0 |
| Warranty | 5 Years |
