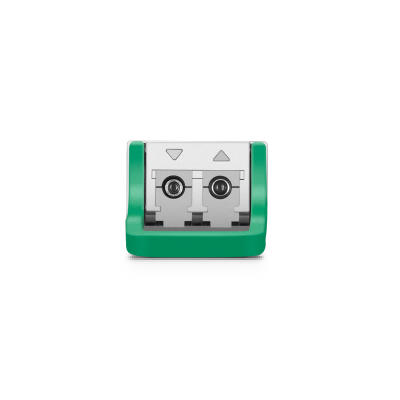

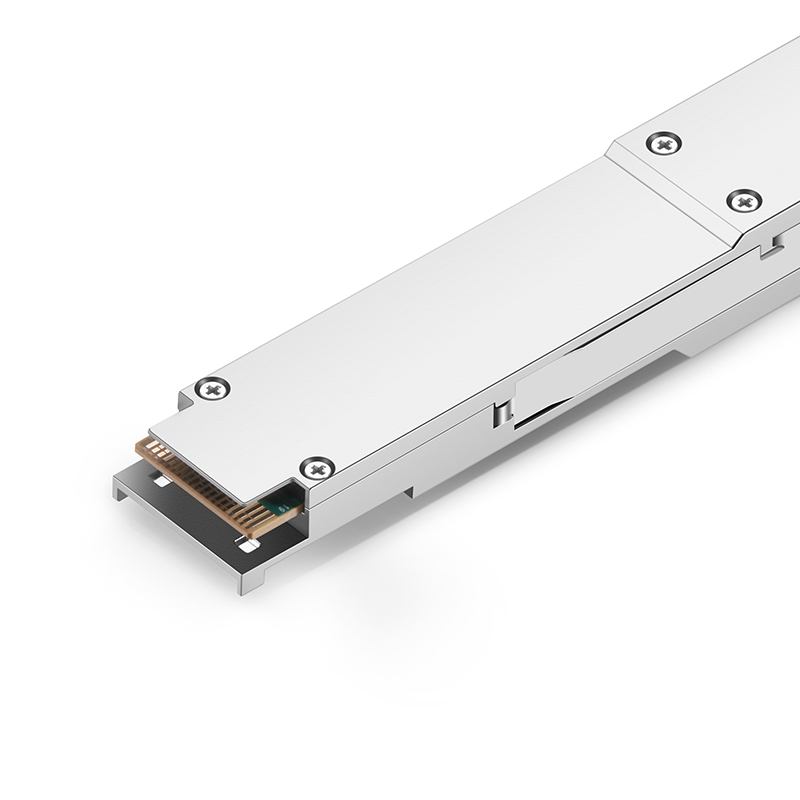

This NVIDIA/Mellanox compatible QSFP112 NDR InfiniBand transceiver is an InfiniBand 400Gb/s
single-port QSFP112 FR4 single-mode parallel optical module with a single 4-channel duplex
LC/UPC optical connector. Featuring a short-reach 4-channel (FR4) design with 100G-PAM4
modulation, it supports transmission distances of up to 2km over OS2 single-mode fiber. The
module is used to connect ConnectX-7/QSFP112 network adapters and 2×400G InfiniBand
switches with dual-port optical modules. It is an ideal solution for supercomputing, designed for InfiniBand NDR end-to-end systems,
enabling seamless integration into compute and storage infrastructures to ensure efficient,
high-performance interconnection.
Specifications:
| Parameter | Value |
| Package | QSFP112 |
| Max Data Rate | 425Gbps (4x106.25Gb/s) |
| Wavelength | 1310nm |
| Max Reach | 2km |
| Connector | Duplex LC UPC |
| Fiber Type | Single-mode |
| Transmitter Type | EML |
| Receiver Type | PD |
| Transmit Power | -3.3~3.5dBm |
| Min Receive Power | -7.3dBm |
| Power Budget | 4dB |
| Receive Overload | 3.5dBm |
| Power Consumption | 10W |
| Extinction Ratio | >3.5dB |
| DDM/DOM | Supported |
| Commercial Temp Range | 0~70°C (32~158°F) |
| Electrical Modulation | 4x100G-PAM4 |
| Optical Modulation | 4x100G-PAM4 |
| Core Size | 9μm |
| Packaging Technology | COC |
| Technical Standards | IEEE 802.3cu, OIF-CEI-112G-VSR-PAM4, CMIS Rev 4.0, QSFP-112 MSA |
| Warranty | 5 Years |
