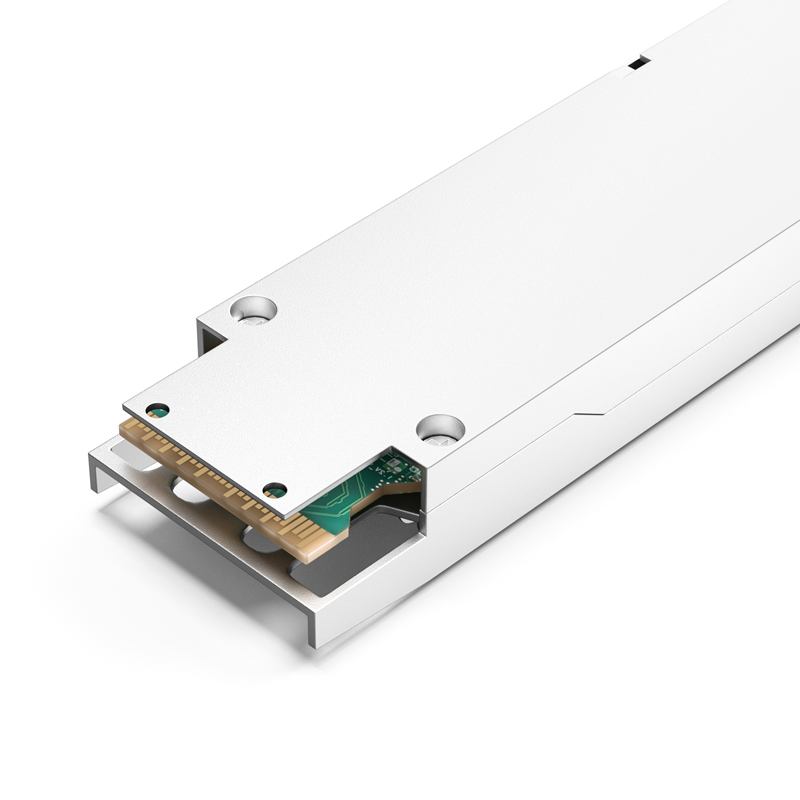

NVIDIA/Mellanox MMA1T00-HS Compatible 200GBASE-SR4 QSFP56 HDR InfiniBand Multimode Optical Transceiver, 850nm, 100m, DOM, MPO-12/UPC, for Quantum Switches and ConnectX-6 HCA

￥1700

型号：HZTD200SR4

Optical module model:

MMA1T00-HS|200G SR4

compatible:

NVIDIA InfiniBand (200G)

加入购物车

产品特征

Complies with InfiniBand HDR end-to-end system requirements

Built-in Marvell chip, maximum power consumption 5W

Supports 200G link connections between switches or switch-to-NIC connections

Converts 4 channels of 50G-PAM4 electrical signals to 4 channels of 50G-PAM4 optical signals for parallel transmission

Fully tested and fully compatible with NVIDIA QM8700/8790 switches and ConnectX-6 HCAs

Complies with QSFP56 MSA (Multi-Source Agreement) and IEEE 802.3 standards, Class 1 Laser Safety, with DDM support

商品详情
资料下载(PDF)

NVIDIA/Mellanox MMA1T00-HS Compatible QSFP56 200GBASE-SR4 HDR InfiniBand

Optical Transceiver (MMF, 850nm, 100m, MPO-12/UPC, DOM)

This NVIDIA/Mellanox MMA1T00-HS compatible QSFP56 HDR InfiniBand transceiver is a 200Gb/s

single-port QSFP56, SR4 multimode parallel transceiver with a single 4-channel MPO‑12/UPC optical

connector. It features parallel multimode, short-reach 4‑channel (SR4) transmission using 50G‑PAM4 modulation,

supporting a maximum link distance of 0.1 km (100 m) over four multimode fibers. It is qualified for use in HDR InfiniBand end-to-end systems. It is an ideal solution for supercomputing, enabling seamless integration into compute and storage

infrastructures to deliver efficient, high-performance interconnects. Designed for use with QM8700/QM8790 switches and ConnectX‑6 adapters.

Specifications:

Package QSFP56	Max Data Rate 200Gbps
Wavelength 1310nm	Max Reach 70m@OM3/100m@OM4
Interface 850nm	Fiber Type multimodal
Transmitter Type VCSEL 850nm	Receiver Type PIN
Transmit Power -6.5~4dBm	Min Receive Power -6.5dBm
Power Budget 3.5dB	Overload Power 5dBm
Power Consumption 5W	Extinction Ratio >3dB
DDM/DOM support	Commercial Temperature Range 0~70°C (32~158°F)
Electrical Modulation 4x100G-PAM4	Optical Modulation 4x100G-PAM4
CDR Integrated CDR on transmitter and receiver	Built-in FEC no
Protocols IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636	Application Infiniband HDR
