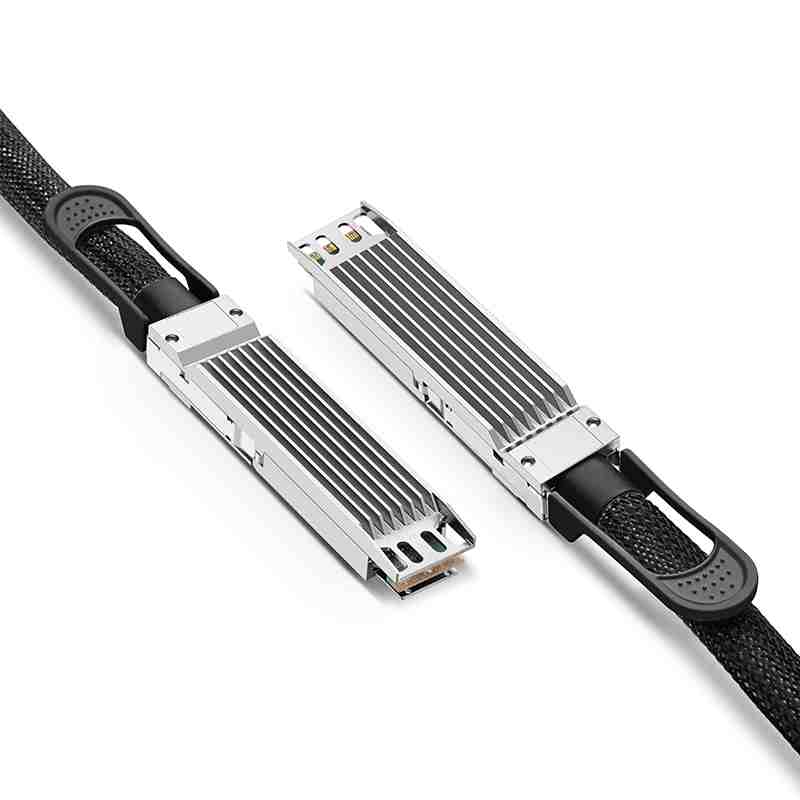

0.5m (2ft) NVIDIA/Mellanox MCP4Y10-N00A Compatible 800G OSFP NDR InfiniBand High-Speed Cable with Top Heat Sink for Quantum-2 Switches_InfiniBand DAC/AOC_IB Optical Module_InfiniBand Network_Product Center

This NVIDIA/Mellanox InfiniBand cable is a high-speed cable with 2x400Gb/s dual-port OSFP to

2x400Gb/s dual-port OSFP. It adopts an 8-channel small form-factor pluggable (OSFP) interface and

contains 8 pairs of high-speed copper twisted pairs, each supporting data rates up to 100Gb/s.

The cable complies with OSFP MSA and IEEE 802.3ck standards. Featuring low latency, this high-speed cable is widely deployed in data centers for short-distance

connections between servers, GPU computing systems, switches, and spine-super spine switches

within racks. It is also used to build InfiniBand storage architectures with hard disk drive (HDD)

and flash memory subsystems. With a simplified design and fewer components, the cable delivers cost-effective, low-latency,

and near-zero power consumption high-speed connectivity. It improves port bandwidth, density,

and configurability in supercomputers and large-scale systems while reducing power requirements.

Specifications:

Form Factor OSFP to OSFP	Maximum Transmission Rate 800Gbps
Fiber Type Copper Cable	Cable Type Passive Twisted Pair
Minimum Bend Radius 54mm	Power Consumption 0.1W
Outer Jacket Material PET	Operating Temperature Range 0~70°C (32~158°F)
Technical Protocols OSFP MSA, IEEE 802.3ck, CMIS v4.0	Modulation Format PAM4
