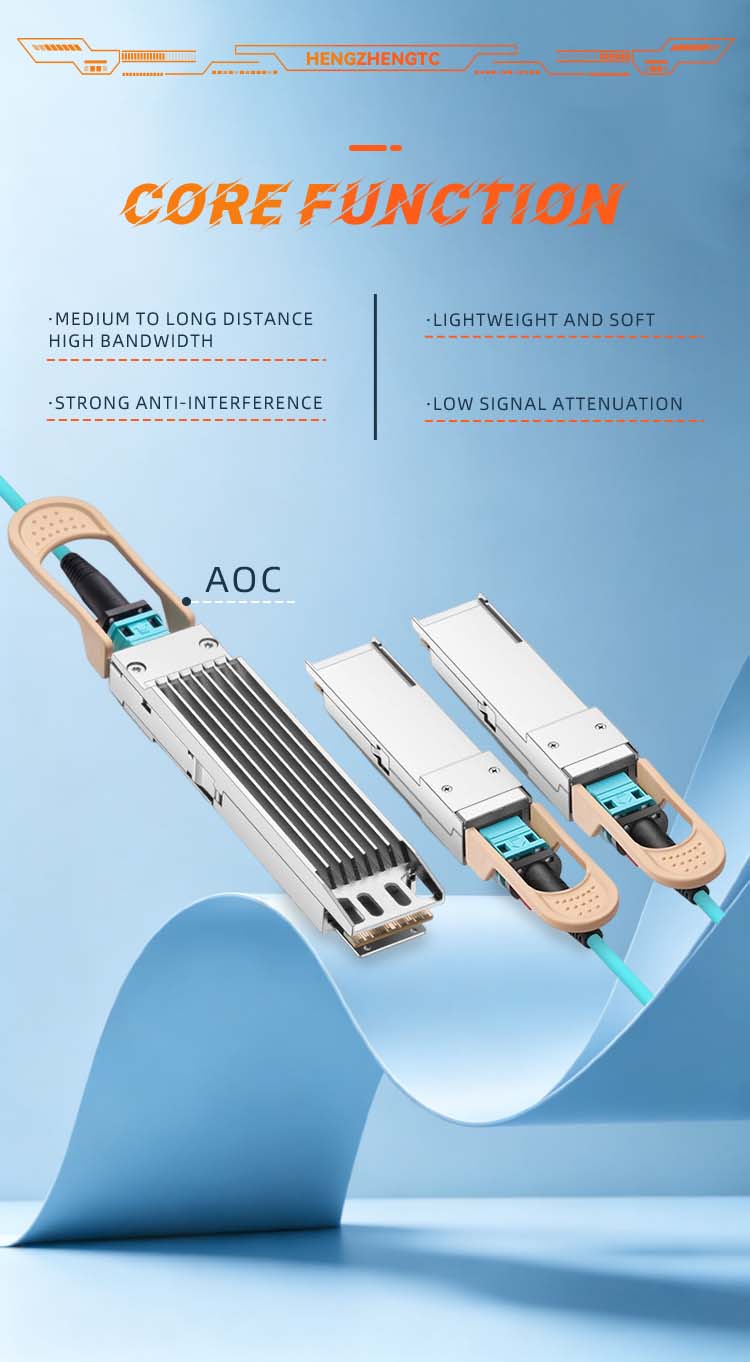

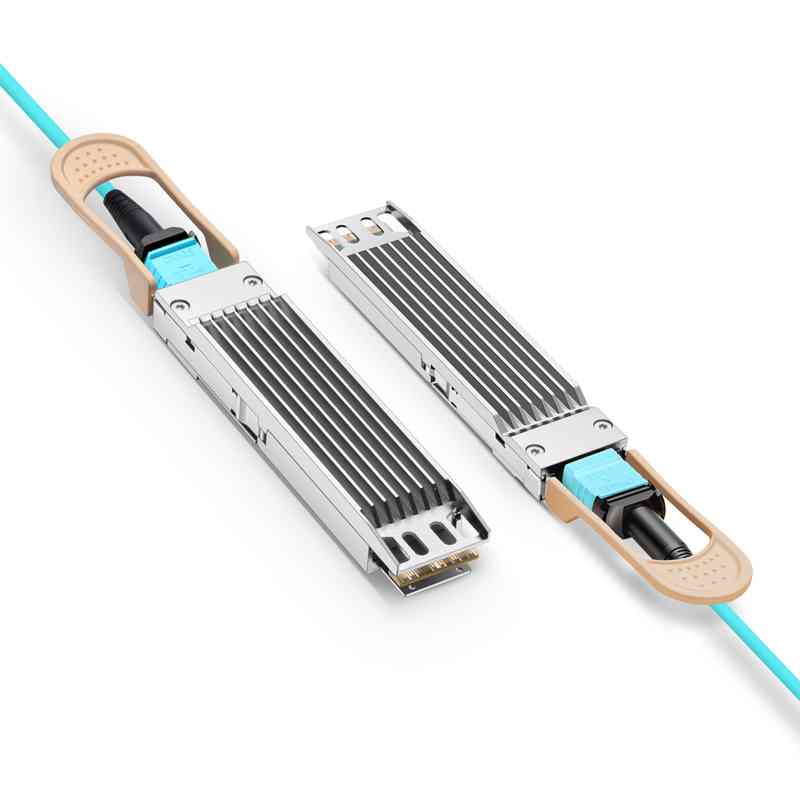

This NVIDIA/Mellanox compatible cable is an 800Gb/s OSFP to 800Gb/s OSFP NDR InfiniBand active
optical cable. It adopts a pluggable OSFP56 package with 8 pairs of high-speed copper pairs, each
supporting data rates up to 100Gb/s. The cable complies with OSFP MSA and IEEE 802.3 standards. It delivers higher port bandwidth, density and configurability for data centers at lower cost and power
consumption, and is widely used in cloud computing and supercomputers. Compared with optical transceivers, optical cables offer more cost-effective and highly reliable
advantages. Compared with high-speed cables, they are lighter and more flexible, enabling better
airflow and longer transmission distances.
Specifications:
封装 OSFP to OSFP | Maximum Transmission Rate 800Gbps |
Minimum Bend Radius 30mm | Power Consumption 16W |
Wavelength 850nm | Outer Jacket Material OFNP (FSZH) |
Transmitter Type VCEL | Receiver Type PIN |
CDR Built-in CDR at both transmitter and receiver ends |
|
Operating Temperature Range 0°C~70°C (32~158°F) |
|
Technical Protocol OSFP MAS, CMIS Rev 4.0, SFF-8679, IEEE 802.3bs |
|
