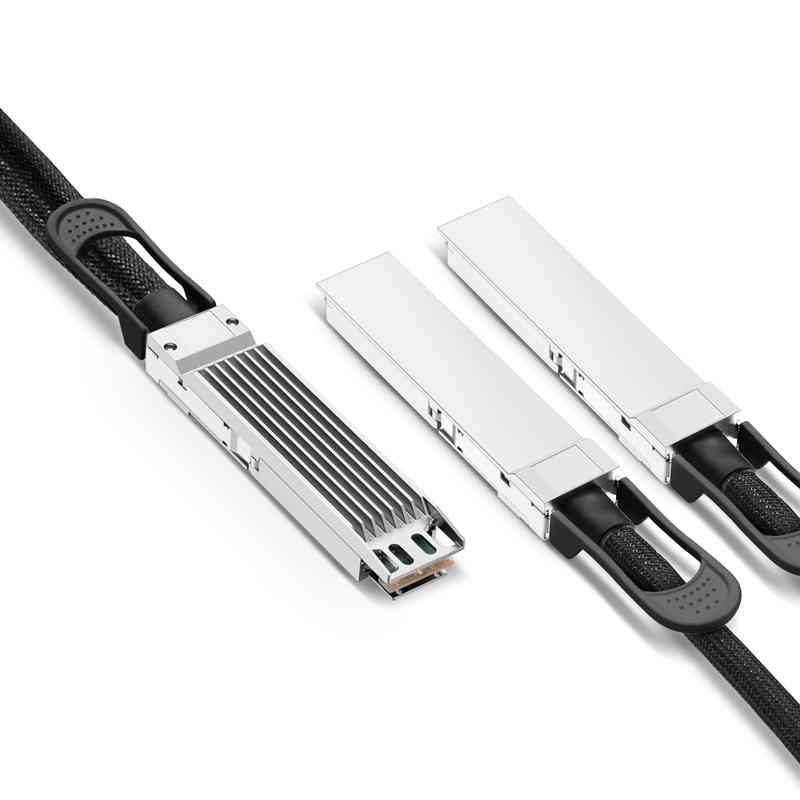

This NVIDIA/Mellanox InfiniBand cable is an 800Gb/s dual-port OSFP to 2×400Gb/s dual-port OSFP
dual-breakout high-speed cable. The 8-lane dual-port OSFP end features a top heatsink and is
designed for Quantum-2 and Spectrum-4 switches. The two 400G ports support 4-lane 100G-PAM4 (
400G) with a flat-top OSFP package, suitable for ConnectX-7 network adapters and heatsink-equipped
BlueField-2/3 modules in connector racks. The cable complies with OSFP MSA and IEEE 802.3ck
standards. Featuring low latency, this high-speed cable is widely used in data centers for short-range connections
between servers, GPU computing systems, switches, and spine-super spine switches within racks. It is
also deployed to build InfiniBand storage architectures with hard disk drive (HDD) and flash memory
subsystems. With a simple design and fewer components, the cable delivers cost-effective, low-latency, and
near-zero power consumption high-speed connectivity. It improves port bandwidth, density and
configurability in supercomputers and large-scale systems while reducing power requirements.
Specifications:
Form Factor OSFP (with Top Heatsink) to OSFP (with Top Heatsink) | Maximum Transmission Rate 800Gbps |
Fiber Type Copper Cable | Cable Type Passive Twisted Pair |
Minimum Bend Radius 72mm | Power Consumption ≤0.1W |
Temperature Range 0~70°C (32~158°F) | Outer Jacket Material PVC (OFNR) |
Technical Compliance OSFP MSA, CMIS Rev 4.0, IEEE 802.3 ck | Modulation Format PAM4 |
