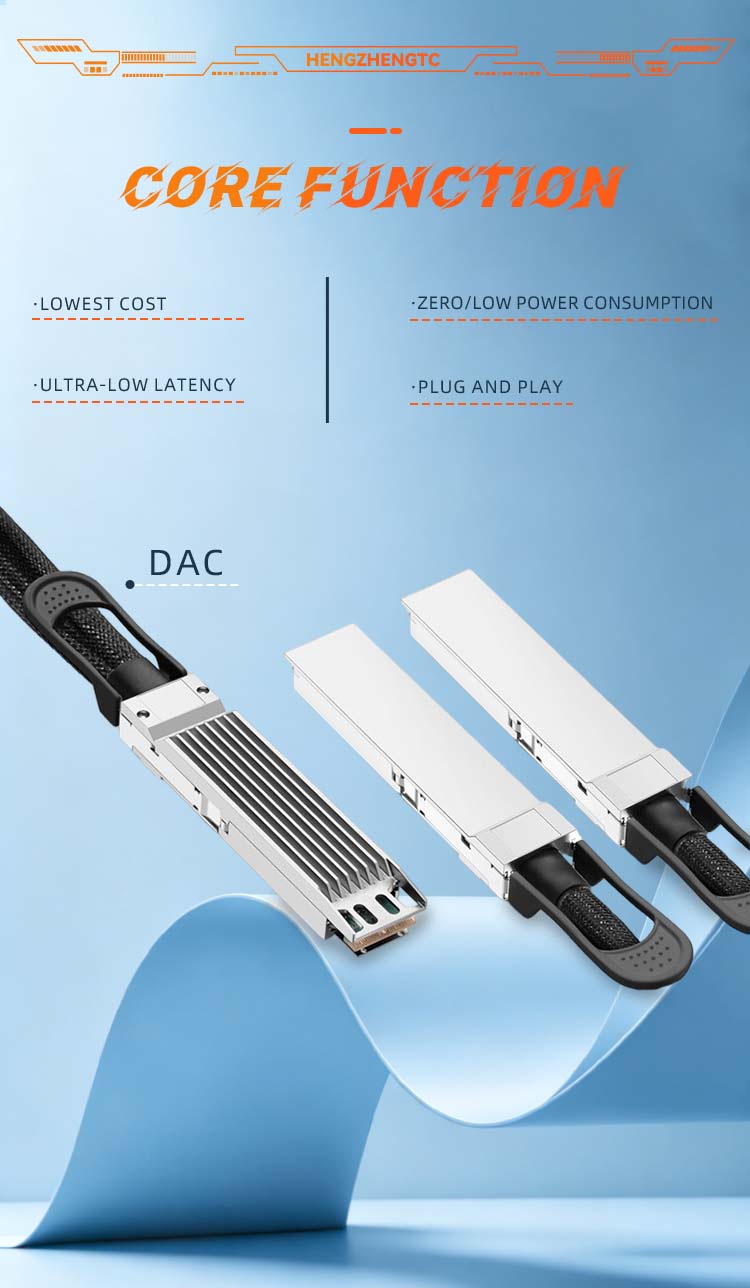

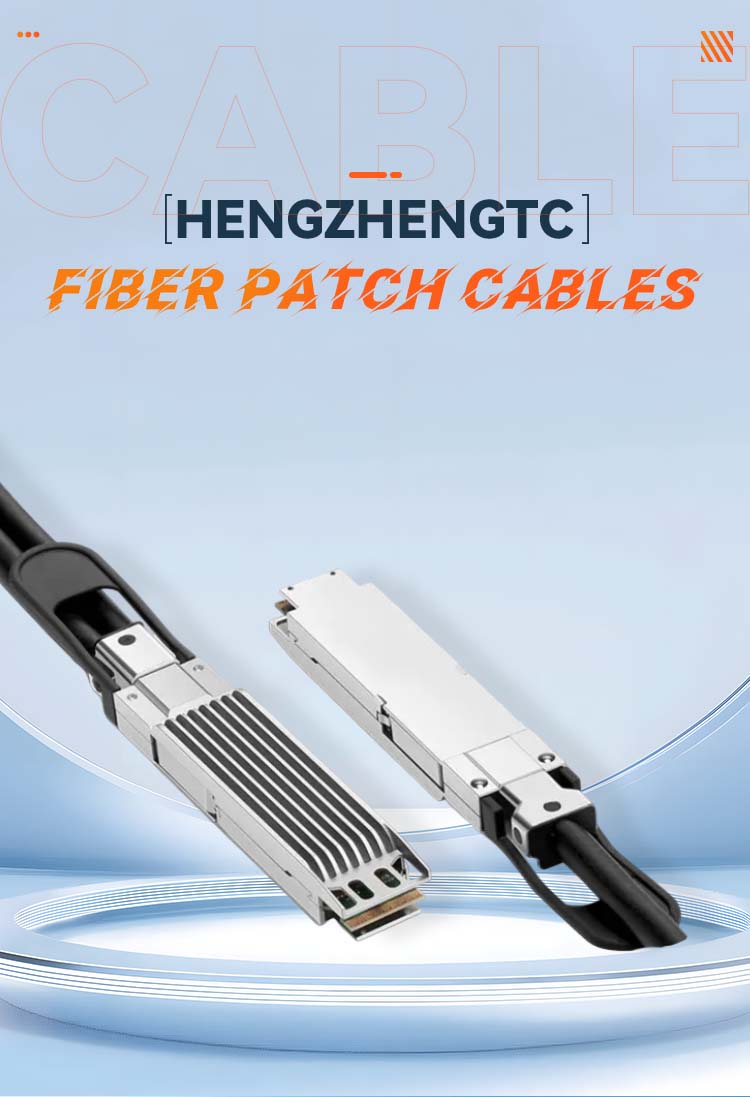

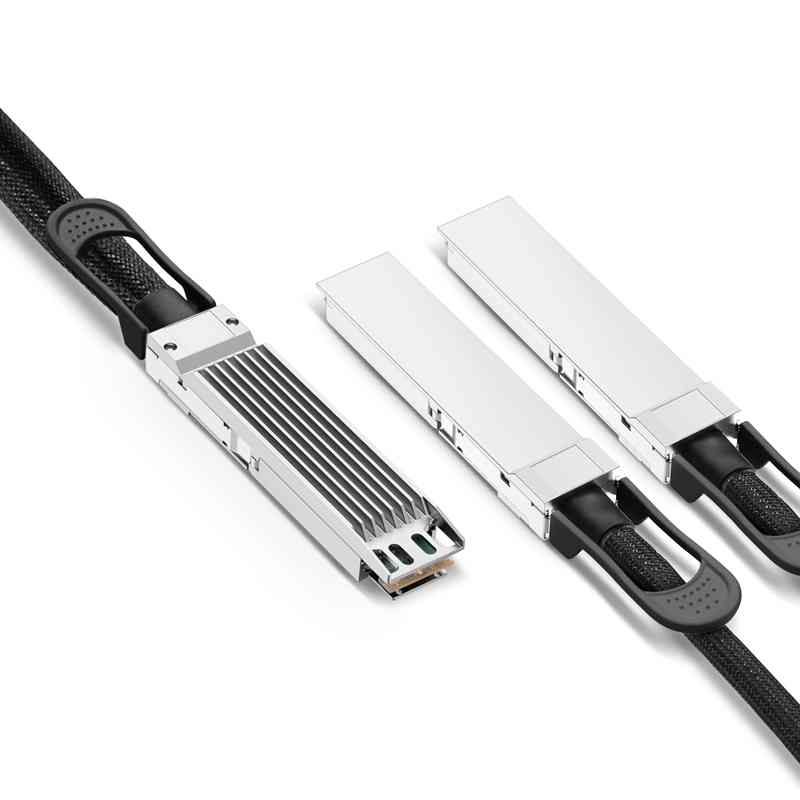

This NVIDIA/Mellanox InfiniBand cable is a high-speed cable that converts 2x 400Gb/s dual-port
OSFP to 2×400Gb/s dual-port QSFP112.The 8-lane dual-port OSFP end is equipped with a top
heatsink, suitable for Quantum-2 and Spectrum-4 switches.The two 400G ports support 4-lane
100G-PAM4 (400G) with a flat-top QSFP112 package, designed for ConnectX-7 network adapters
and BlueField-3 DPUs with heatsinks on the connector bracket.This cable complies with OSFP MSA,
QSFP112 MSA and IEEE 802.3ck standards. Featuring low latency, high-speed cables are widely used in data centers for short-range connections
between servers, GPU computing systems and switches, as well as for interconnections between
spine and super-spine switches within racks.They are also deployed to build InfiniBand storage
architectures with hard disk drive (HDD) and flash memory subsystems. With a simple design and minimal components, this high-speed cable delivers cost-effective,
low-latency and near-zero power consumption high-speed interconnects.It enhances port
bandwidth, density and configurability in supercomputers and hyperscale systems while reducing
power requirements.
Applications：
Package OSFP to 2x QSFP112 | Max Data Rate 800Gbps |
Fiber Type Copper Cable | Cable Type Passive Twisted Pair |
Minimum Bend Radius 40.5mm | Power Consumption 0.1W |
Temperature Range 0~70°C (32~158°F) | Technical Protocol PVC (OFNR) |
Technical Compliance OSFP MSA, QSFP112 MSA, IEEE 802.3ck, CMIS v5.0 | Modulation Format PAM4 |
