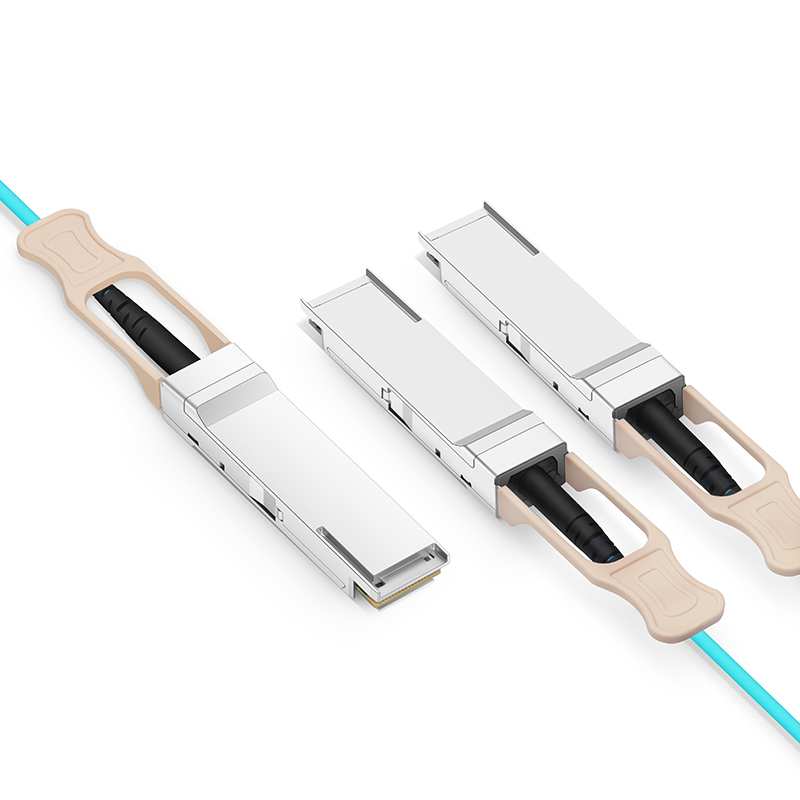

15m (49ft) NVIDIA/Mellanox MFS1S50-H015V Compatible 200G QSFP56 to 2 x 100G QSFP56 HDR InfiniBand Active Breakout Cable, for Quantum Switches and ConnectX-6 HCAs
￥5690

型号：HZAD200D2D15

length:
15m 1m 2m 3m 5m 10m 20m 30m
compatible:
NVIDIA InfiniBand
加入购物车

产品特征

Complies with end-to-end InfiniBand NDR system requirements

Low latency, low insertion loss, low crosstalk, high-speed interconnection

4x 50G-PAM4 to Dual 2x 50G-PAM4

Comprehensively inspected and fully compatible with NVIDIA QM8700 devices

Minimum bending radius of 30mm for flexible routing

Simplifies routing and provides a cost-effective solution for short-reach links

Complies with QSFP56 MSA (Multi-Source Agreement) and IEEE 802.3 standards

  • 商品详情
  • 资料下载(PDF)

NVIDIA / Mellanox Compatible 200G QSFP56 to 2x 100G QSFP56 HDR InfiniBand Breakout Cable (Active, QSFP56 to 2x QSFP56)

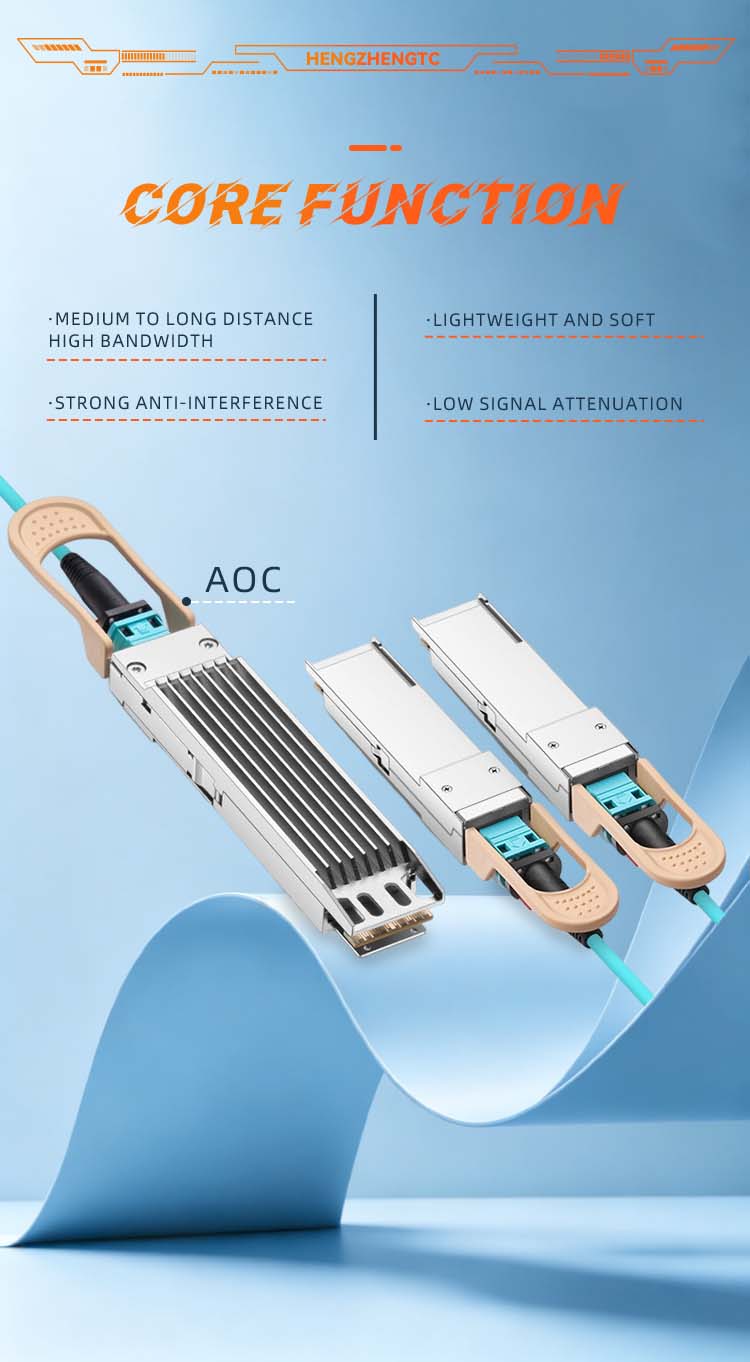

This NVIDIA/Mellanox cable is an active breakout optical cable for 200Gb/s QSFP56 to 2x100Gb/s QSFP56 HDR InfiniBand. It adopts Quad Small Form-factor Pluggable 56 (QSFP56) optical modules, containing 4 pairs of high-speed copper pairs, each supporting data transmission rates up to 50Gb/s. The cable complies with QSFP56 MSA and IEEE 802.3 standards.


The optical cable provides data centers with higher port bandwidth, density and configurability, along with lower cost and power consumption, and is widely used in cloud computing and supercomputers. In addition, the cable is widely used to connect NVIDIA GPU-based systems to InfiniBand networks and InfiniBand storage networks.


Compared with optical modules, optical cables offer more cost-effective advantages of low cost and high reliability. Compared with high-speed cables, optical cables are lighter and more flexible, providing better airflow support and longer transmission distances.



Specifications：

Form Factor                            QSFP56转2x QSFP56

      Maximum Transmission Rate              200Gbps

Transmitter Type                       VCSEL

Receiver Type                 PIN

Wavelength                                 850nm

       Minimum Bending Radius          30mm

Power Consumption                        ≤4.5W

        Outer Jacket Material            OFNP

Commercial Operating T

emperature Range              0~70°C (32~158°F)

         Modulation Format                 PAM4

CDR        Integrated CDR on Transmit and Receive Ends

         Technical Protocol                 IEEE 802.3, QSFP56                                                  MSA, SFF-8024, SFF-8679,                                            SFF-8665, SFF-8636, InfiniBand                                              HDR
