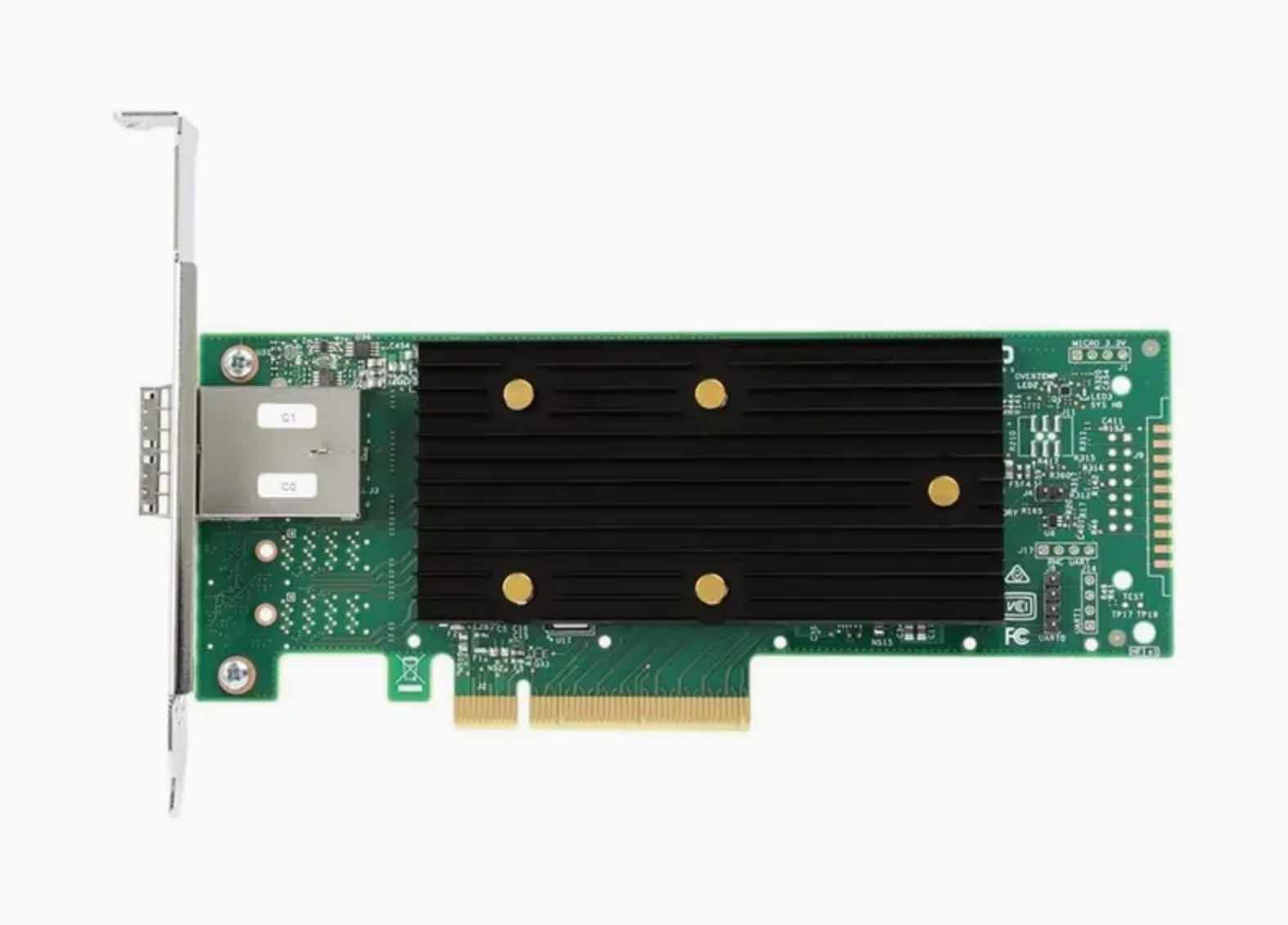

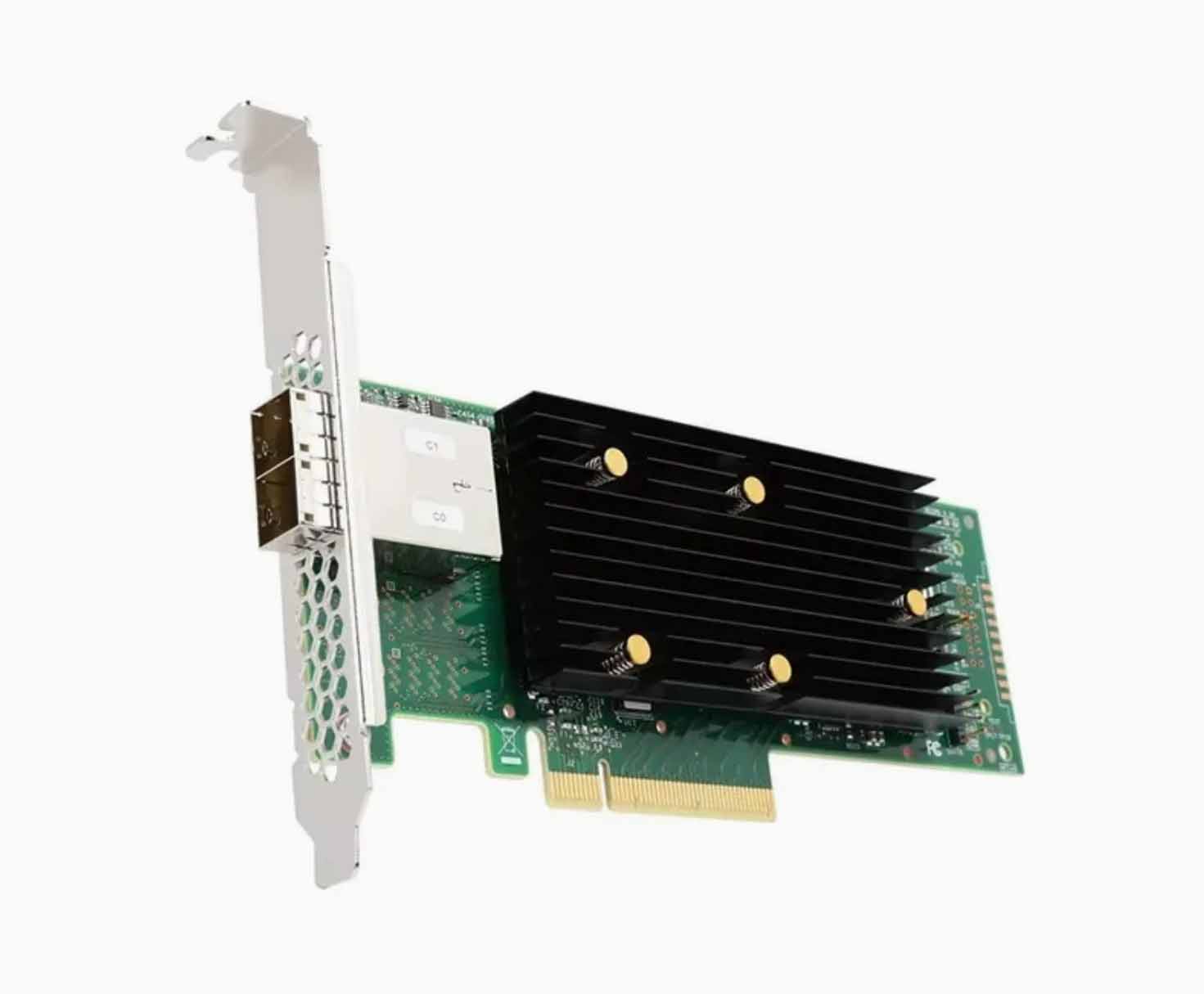

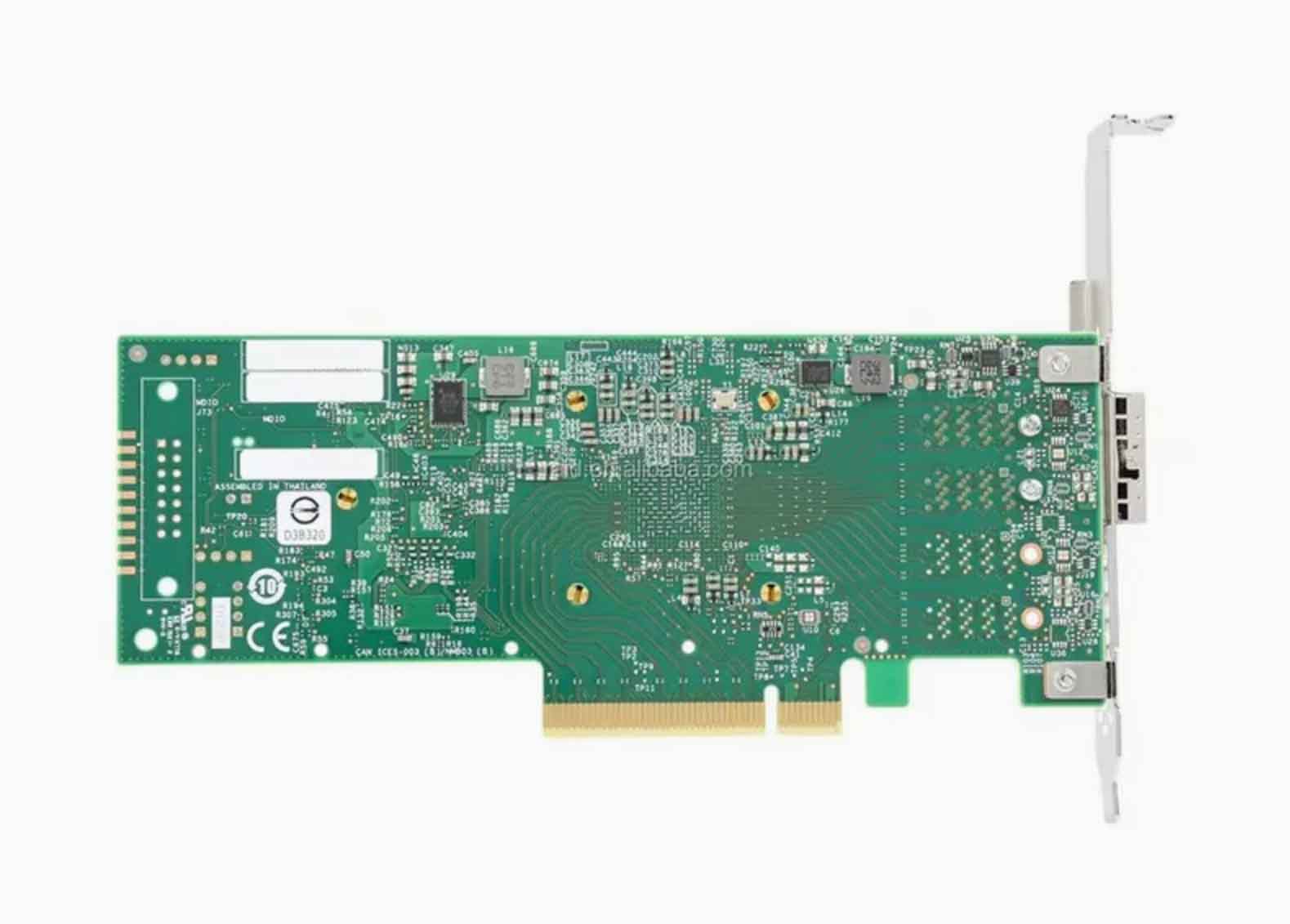

Broadcom 9400-8E

￥1

型号：9400 - 8E

产品特征

12Gb/s SAS-3 interface + PCIe 3.1 x8 host channel, delivering up to 96Gb/s aggregate bandwidth to meet high-capacity storage requirements.

Supports up to 1,024 SAS/SATA devices, designed for large storage enclosures and ideal for enterprise-level storage deployments.

Built-in SAS3408 controller, supporting RAID 0/1/5/6/10/50/60 multi-level arrays with hot spare and online capacity expansion capabilities.

Certified for Windows/Linux/VMware systems, compatible with mainstream server environments. *High-efficiency design: typical power consumption of only 6.12W, low-profile form factor (167.65×68.90mm), compatible with various server chassis.

商品详情
资料下载(PDF)

恒正同创第二次版详情页_01 恒正同创第二次版详情页_02 恒正同创第二次版详情页_03

Product Model	9400 - 8e
Physical Dimensions	Low-profile design: 167.65mm×68.90mm (with bracket)
Host Bus Type	PCIe 3.1 x8 (backward compatible with PCIe 2.0/1.0)
I/O Processor	Broadcom SAS3408 Controller
RAID Function	Hardware RAID 0/1/5/6/10/50/60, with hot spare and online capacity expansion support
Device Support	SAS/SATA Devices: Up to 1024; NVMe devices require direct PCIe connection
Data Transfer Rate	12Gb/s SAS-3 per port, total bandwidth 96Gb/s
Cache Options	No onboard cache, relies on host memory
External Interface	Standard 2×SFF-8644 external ports (compatible with SFF-8643 cables)
Management Software	Supports LSI Storage Authority, StorCLI and UEFI HII configuration tools
Certification	CE/FCC/RoHS/WEEE; Certified for VMware ESXi, Linux, Windows
Operating Environment	Temperature: 0 - 55°C; Humidity: 20% - 80% non-condensing; Mean Time Between Failures (MTBF): 5,000,000 hours at 40°C
Typical Power Consumption	6.12W (full load)
Firmware Features	Supports Online Firmware Upgrade (OFU) and multi-path I/O optimization
Compatibility	Supports UEFI 2.7 and legacy BIOS boot modes
