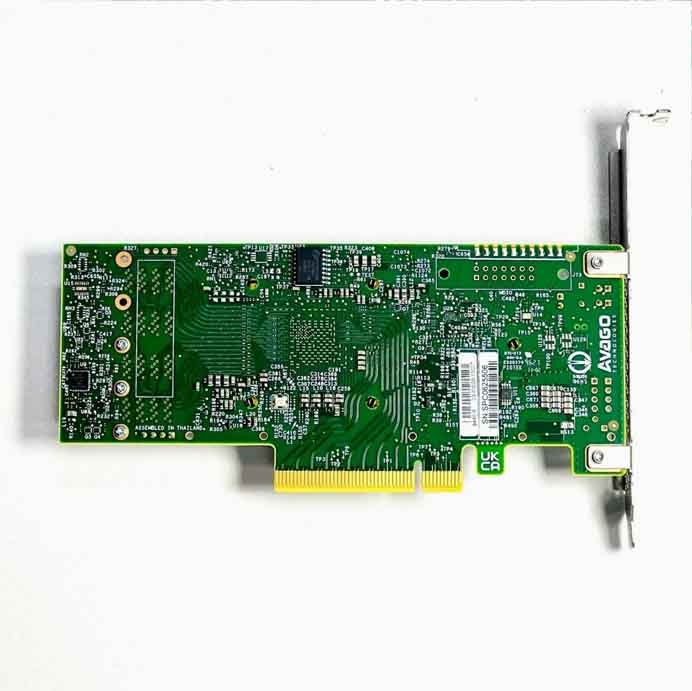

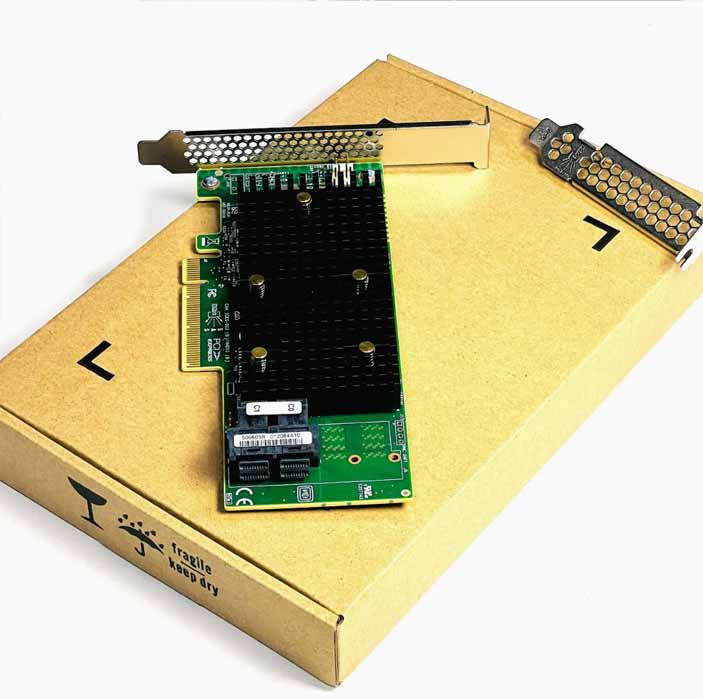

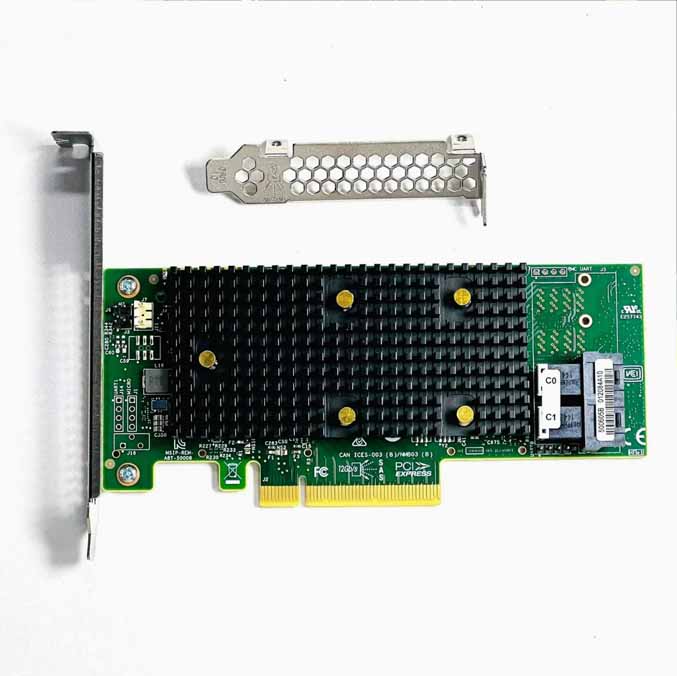

Broadcom 9400-16E

￥1

型号： 9400-16E

产品特征

Multi-mode Integration: Supports SAS-3/SATA/NVMe tri-mode, enabling seamless integration of hybrid storage environments.

Ultra-high Speed Transmission: 12Gb/s SAS and PCIe 3.1 x8 interfaces ensure efficient data transfer.

Intelligent Optimization: Dual-core ROC controller with 4GB/8GB cache to enhance I/O efficiency; CacheVault technology protects data during power outages.

Flexible Adaptation: Low-profile design suitable for various scenarios, compatible with Windows/Linux/VMware systems.

Quality Assurance: Certified for Intel platforms and enterprise HDDs/SSDs, 3-year warranty, supports up to 1024 SAS/SATA + 24 NVMe devices, and provides comprehensive RAID 0/1/5/6/10/50/60 data protection.

商品详情
资料下载(PDF)

恒正同创第二次版详情页_01 恒正同创第二次版详情页_02 恒正同创第二次版详情页_03

Product Model	9400-16E
Physical Dimensions	Low-profile design: 6.127" (L) × 2.712" (W)
Host Bus Type	PCI Express 3.1 x8 Lane Interface
‌I/O Processor	SAS 3516 Dual-core RAID-on-Chip (ROC) Controller
‌Connectors	4× Mini-SAS HD (SFF-8643) External Ports
‌RAID Function	Supports RAID 0/1/5/6/10/50/60, with CacheVault cache protection technology
‌Cache Configuration	Standard 4GB DDR4 SDRAM (2133MHz), optional 8GB
‌Data Transfer Rate	SAS-3：12Gb/s；PCIe 3.1：16GT/s
‌Operating Environment	Temperature: 0°C-55°C; Humidity: 20%-80% non-condensing; Voltage: +12V±8%/3.3V±9%
‌Certification & Compatibility	Windows Server/Linux/VMware; UEFI 2.3.1/Legacy boot; 3-year warranty
Typical Application Scenarios	High-density direct-attached storage, cloud computing platforms, external storage expansion
‌Installation Requirements	Operate in an ESD-free environment; supports full-height / low-profile bracket conversion.
‌Firmware Management	Unified management via Broadcom MegaRAID Storage Manager supported
NVMe Features	Multi-namespace management and end-to-end data protection supported
‌Compatibility Validation	Certified for Intel server platforms, supports Exos/X18 series enterprise hard drives
