型号：9500-8i

Tri-mode Storage Interface

Hardware Secure Boot

Universal Bay Management (UBM) Ready (SFF-TA-1005)

13,700 MB/s (256K sequential)

3 Million IOPs (4K random read)

x8 PCIe Gen 4.0 Host Interface

Compliant with SFF-9402 standard connector pin assignment

Up to 1024 SAS/SATA devices

Up to 32 NVMe devices

Form-factor-friendly cable exit

恒正同创第二次版详情页_01 恒正同创第二次版详情页_02 恒正同创第二次版详情页_03

Lifecycle	active
Model	9500 - 8i
Bracket	Full-height and Low-profile
Supported Devices	SAS/SATA: Up to 1024; NVMe: Up to 32
Port Speed	12 Gb/s
Host Bus Type	x8-lane PCI Express 4.0
Internal Connectors	1 个 x8 SFF - 8654（SlimSAS）
Internal Ports	8 个
I/O Controller	SAS3808
Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
Mean Time Between Failures (MTBF)	> 5,000,000 hours at 40°C
Operating Humidity	20% - 80% non-condensing
Operating Temperature (°C)	0°C to 55°C
Operating System Support	Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux
Physical Dimensions	155.52 (±0.13) mm × 68.77 (±0.13) mm
Regulatory Certifications	Australia / New Zealand (AS/NZS CISPR 22), RoHS
Typical Power Consumption	5.96W

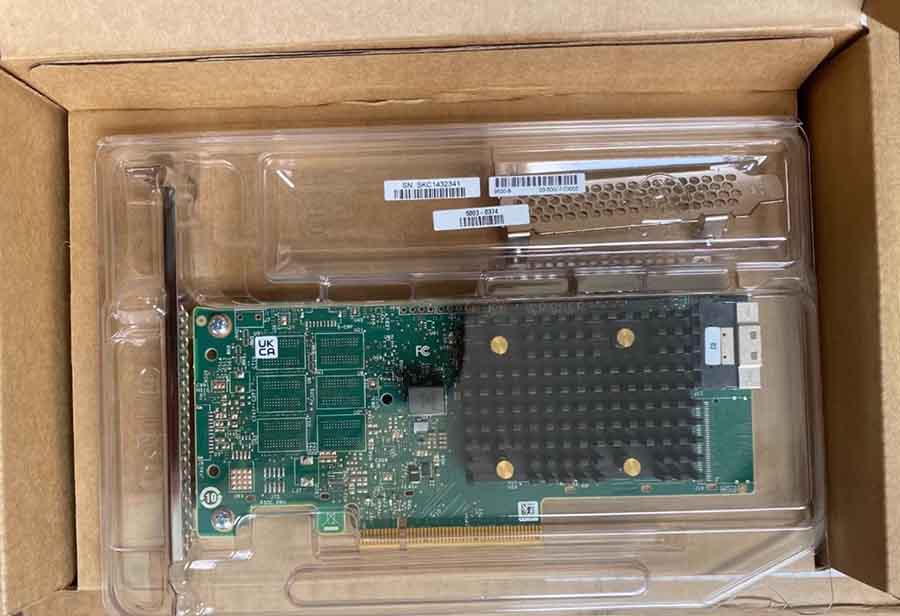

Package Contents	9500-8i HBA Card, Low-profile Bracket, Full-height Bracket (pre-installed)
